Seat Occupant Classification Module - Air Bag
Seat Occupant Classification Module - Air Bag

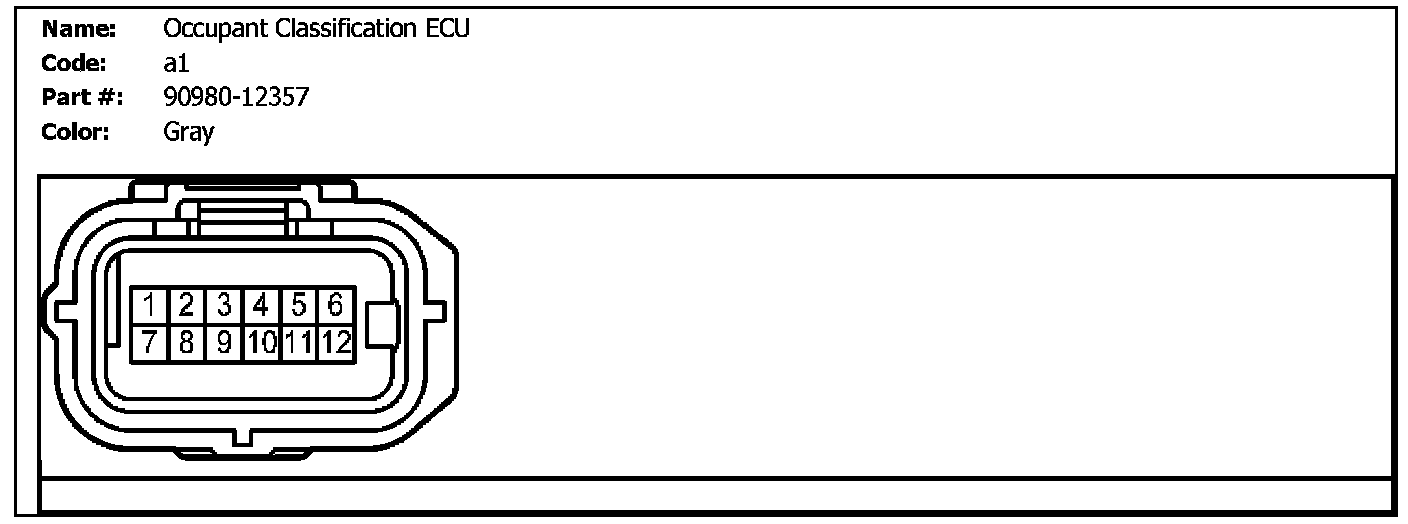

a1 (Occupant Classification ECU):

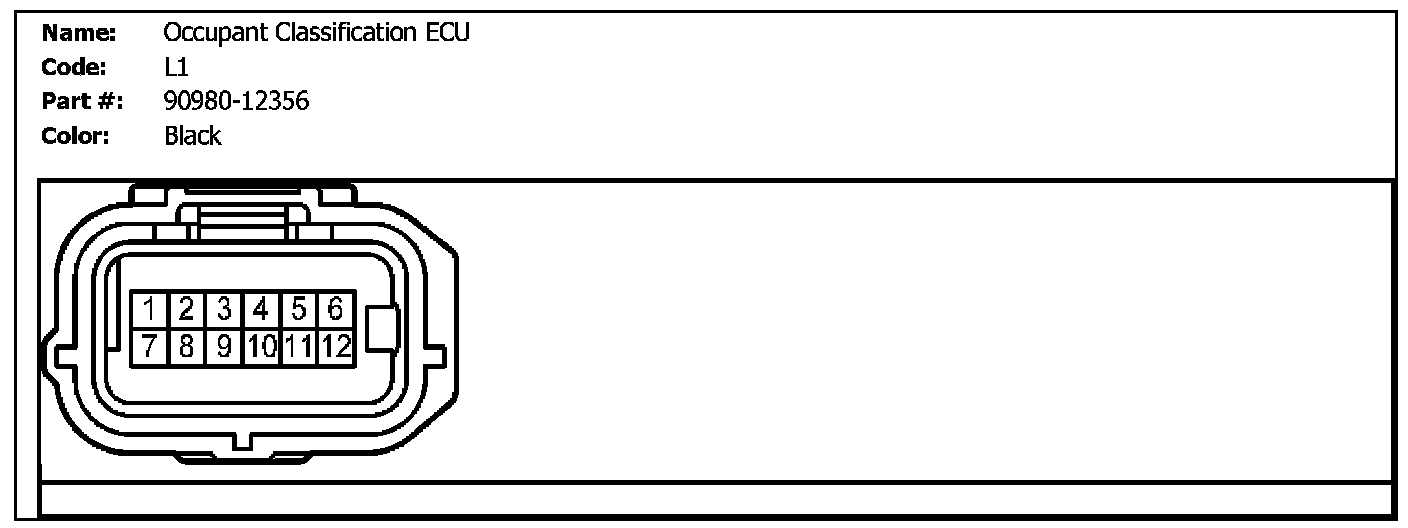

L1 (Occupant Classification ECU):
