Installation








2AZ-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

INSTALLATION

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

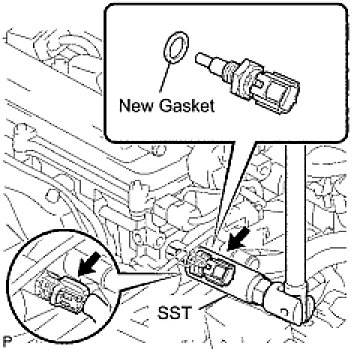

(a) Install a new gasket onto the sensor.
(b) Using SST, install the sensor.
SST: 09817-33190
Torque: 19.6 Nm (200 kgf-cm, 14 ft-lbf)
(c) Connect the sensor connector.
2. INSTALL AIR CLEANER CASE Installation

3. INSTALL AIR CLEANER CAP Installation

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. ADD ENGINE COOLANT Service and Repair

6. CHECK FOR COOLANT LEAKAGE Testing and Inspection
