Steering Angle Sensor Communication Stop Mode

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: Steering Angle Sensor Communication Stop Mode

Steering Angle Sensor Communication Stop Mode

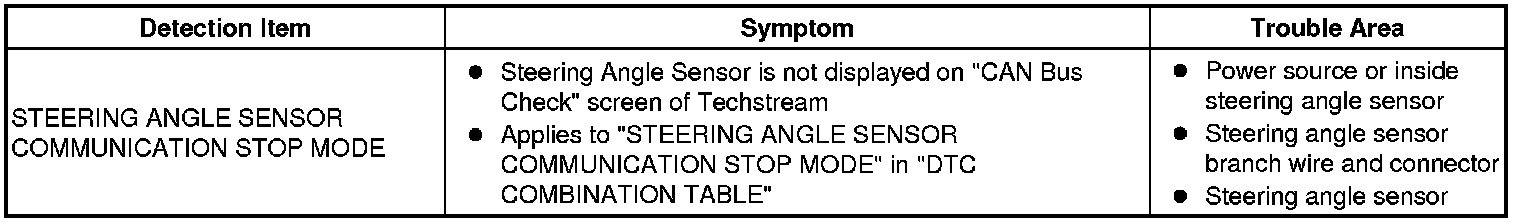

DESCRIPTION

WIRING DIAGRAM

INSPECTION PROCEDURE
NOTICE:
- Turn the ignition switch OFF before measuring the resistances of the main wire and the branch wire.
- After the ignition switch is turned OFF, check that the key reminder warning system and light reminder warning system are not in operation.
- Before measuring the resistance, leave the vehicle for at least 1 minute and do not operate the ignition switch, any switches or doors. If doors need to be opened in order to check connectors, open the doors and leave them open.
HINT: Operating the ignition switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

PROCEDURE

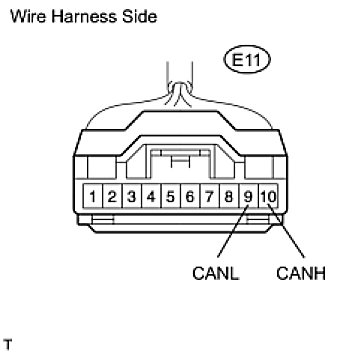

1. CHECK CAN BUS LINE FOR DISCONNECTION (STEERING ANGLE SENSOR BRANCH WIRE)
(a) Disconnect the E11 steering angle sensor connector.

(b) Measure the resistance of the wire harness side connector.
Standard resistance:

NG -- REPAIR OR REPLACE BRANCH WIRE CONNECTED TO STEERING ANGLE SENSOR (CANH, CANL)
OK -- Continue to next step.

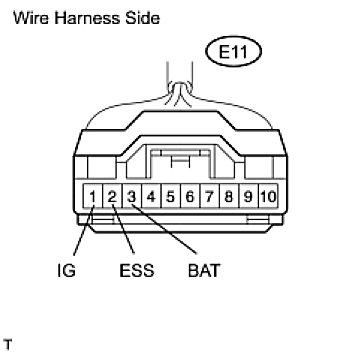

2. CHECK WIRE HARNESS (STEERING ANGLE SENSOR - BATTERY AND BODY GROUND)

(a) Disconnect the E11 steering angle sensor connector.
(b) Measure the resistance of the wire harness side connector.
Standard resistance:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE STEERING ANGLE SENSOR
