Malfunction Indicator Lamp: Testing and Inspection

2AZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: MIL Circuit

MIL Circuit

DESCRIPTION

The MIL (Malfunction Indicator Lamp) is used to indicate vehicle malfunction detections by the ECM. When the ignition switch is turned ON, power is supplied to the MIL circuit, and the ECM provides the circuit ground which illuminates the MIL.
The MIL operation can be checked visually: When the ignition switch is first turned ON, the MIL should be illuminated and should then turn off. If the MIL remains illuminated or is not illuminated, conduct the following troubleshooting procedure using Techstream.

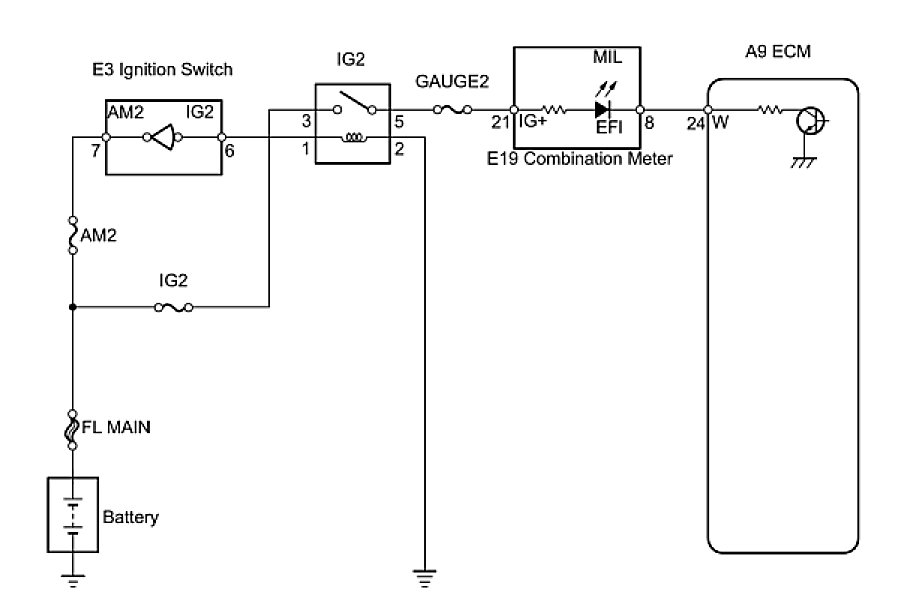

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK THAT MIL IS ILLUMINATED

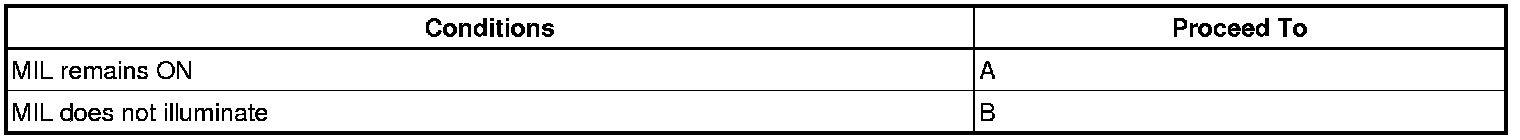

(a) Perform troubleshooting in accordance with the table below.






B -- CHECK THAT MIL IS ILLUMINATED
A -- Continue to next step.
2. CHECK WHETHER MIL TURNS OFF
(a) Connect Techstream to the DLC3.
(b) Turn the ignition switch ON and turn the tester ON.
(c) Select the following menu items: Powertrain / Engine and ECT / Trouble Code.
(d) Check if any DTCs have been stored. Note down any DTCs.
(e) Clear DTCs DTC Check / Clear.
(f) Check if the MIL goes off.
Standard:
MIL should go off.
OK -- REPAIR CIRCUITS INDICATED BY OUTPUT DTCS
NG -- Continue to next step.
3. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN WIRE HARNESS)

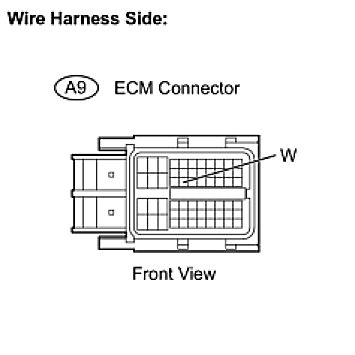

(a) Disconnect the A9 ECM connector.
(b) Turn the ignition switch ON.
(c) Check that the MIL is not illuminated.
OK:
MIL is not illuminated.
(d) Reconnect the ECM connector.
OK -- REPLACE ECM
NG -- Continue to next step.
4. CHECK HARNESS AND CONNECTOR (COMBINATION METER - ECM)

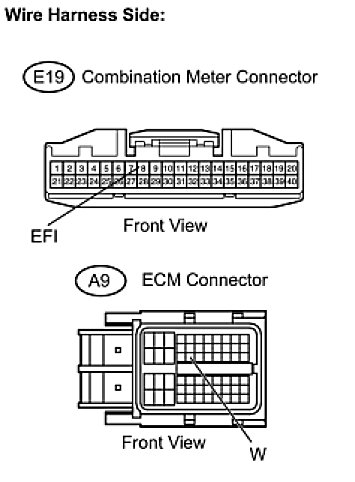

(a) Disconnect the A9 ECM connector.
(b) Disconnect the E19 combination meter connector.
(c) Measure the resistance.
Standard resistance (Check for short):





(d) Reconnect the ECM connector.
(e) Reconnect the combination meter connector.
OK -- REPAIR OR REPLACE COMBINATION METER ASSEMBLY
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
5. CHECK THAT MIL IS ILLUMINATED
(a) Check if the MIL is illuminated when the ignition switch is turned ON.
OK:
MIL should be illuminated.
OK -- SYSTEM OK
NG -- Continue to next step.
6. CHECK THAT ENGINE STARTS
(a) Turn the ignition switch ON.
(b) Start the engine.





HINT: *: Techstream cannot communicate with the ECM.

B -- GO TO VC OUTPUT CIRCUIT
A -- Continue to next step.
7. INSPECT COMBINATION METER ASSEMBLY (MIL CIRCUIT)
(a) Check the MIL circuit Problem Symptoms Table.
NG -- REPAIR OR REPLACE COMBINATION METER ASSEMBLY
OK -- CHECK AND REPLACE HARNESS OR CONNECTOR (COMBINATION METER - ECM)
