Torque Specifications








SERVICE SPECIFICATIONS: U140F AUTOMATIC TRANSAXLE: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

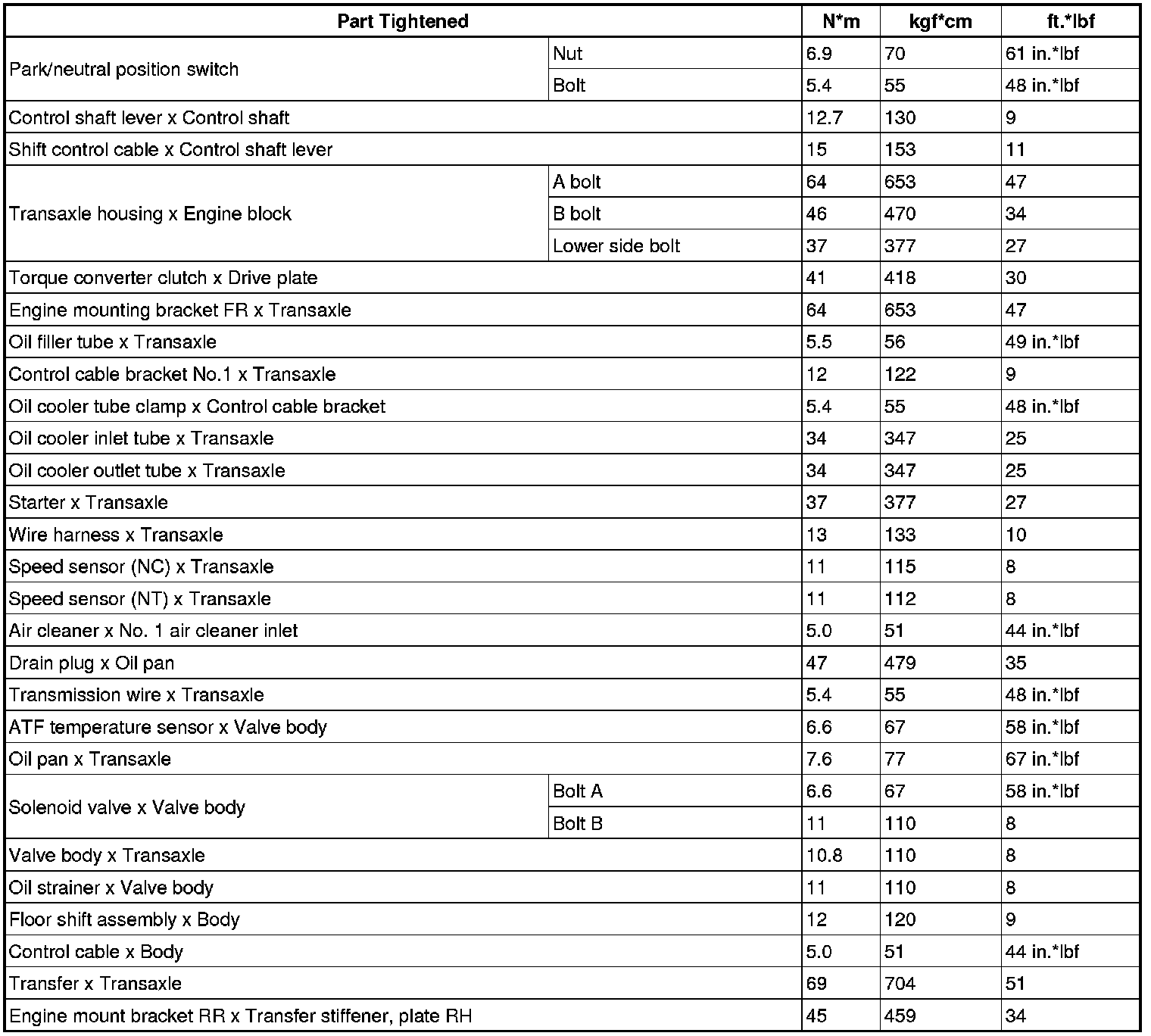

Automatic Transaxle Assembly

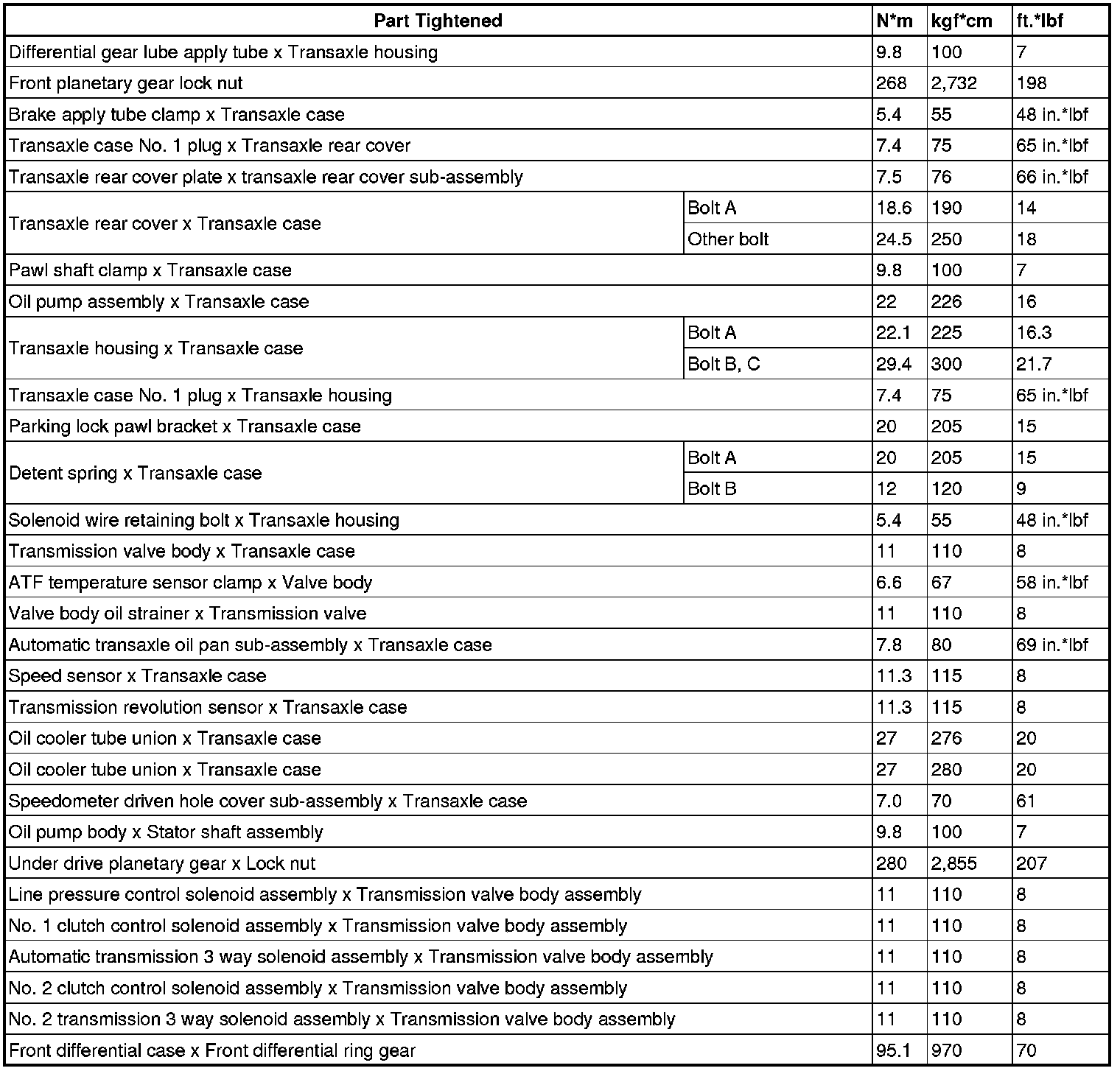

Automatic Transaxle Unit
