Torque Specifications








SERVICE SPECIFICATIONS: 2AZ-FE COOLING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

COOLANT:

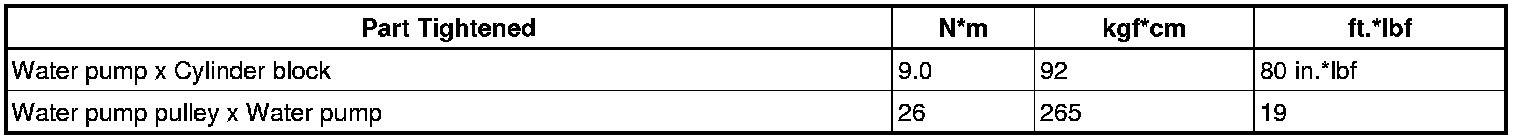

WATER PUMP:





THERMOSTAT:

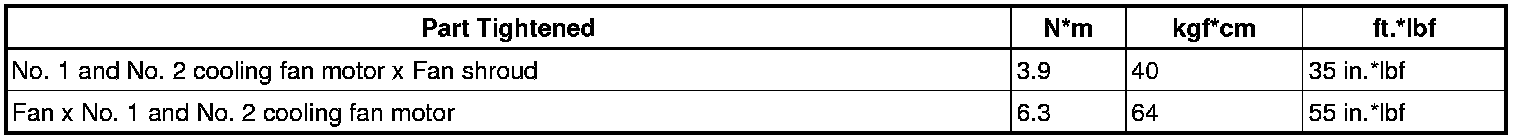

COOLING FAN MOTOR:

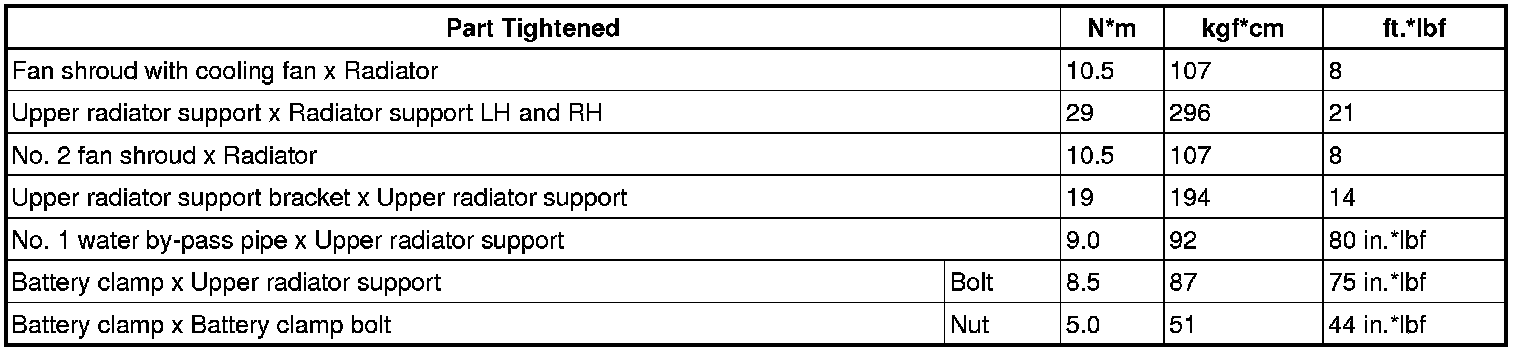

RADIATOR:
