Connecting Rod, Engine

CONNECTING ROD TORQUE

Torque: 24.5 Nm (250 kgf-cm, 18 ft-lbf)





Retighten the cap bolts 90° as shown in the illustration.


Standard connecting rod large end bore diameter:

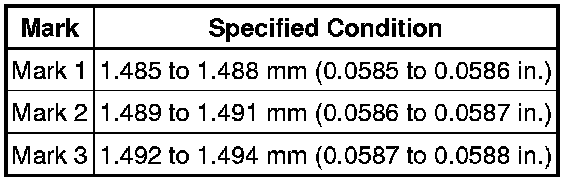

Standard connecting rod bearing thickness:






CONNECTING ROD SUB-ASSEMBLY

Maximum misalignment:
0.05 mm (0.0020 in.) per 100 mm (3.94 in.)

Maximum twist:
0.15 mm (0.0059 in.) per 100 mm (3.94 in.)


CONNECTING ROD BOLT

Standard diameter:
7.2 to 7.3 mm (0.283 to 0.287 in.)

Minimum diameter:
7.0 mm (0.276 in.)
