2AZ-FE STARTING: IGNITION SWITCH: INSTALLATION

INSTALLATION

1. INSTALL IGNITION SWITCH ASSEMBLY

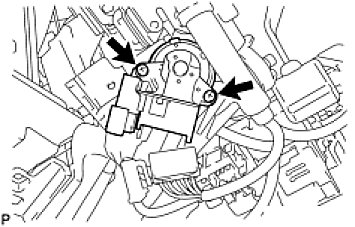

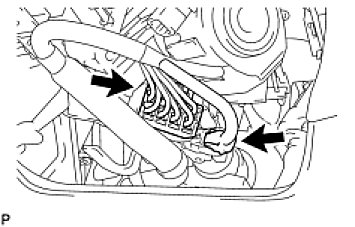

(a) Install the ignition switch with the 2 screws.






(b) Install the ignition key cylinder light connector.
(c) Install the ignition switch connector.
2. INSTALL STEERING COLUMN COVER LOWER

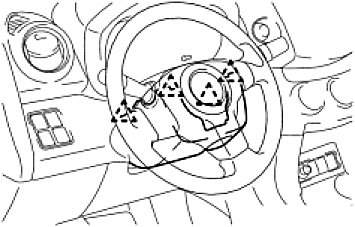

(a) Attach the 4 claws to install the steering column lower cover.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
