Installation

U140F AUTOMATIC TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: INSTALLATION

INSTALLATION

1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY





(a) Install the switch to the manual valve shaft.

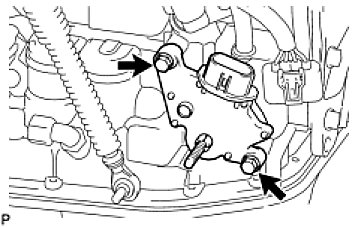

(b) Temporarily install the 2 bolts.

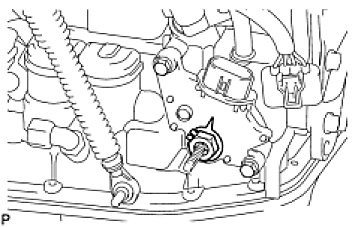

(c) Install a new lock plate and tighten the manual valve shaft nut.
Torque: 6.9 Nm (70 kgf-cm, 61 in-lbf)

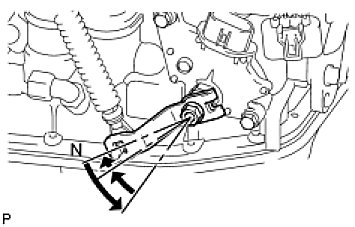

(d) Temporarily install the control shaft lever.






(e) Turn the lever counterclockwise until it stops, and then turn it clockwise 2 notches.
(f) Remove the control shaft lever.

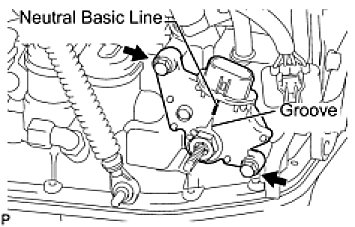

(g) Align the groove with neutral basic line.
(h) Hold the switch in this position and tighten the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)






(i) Using a screwdriver, stake the nut with the lock plate.

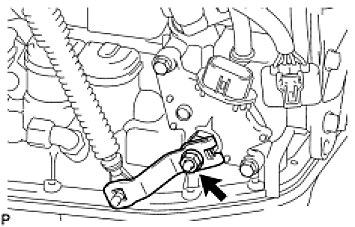

(j) Install the control shaft lever with the washer and nut.
Torque: 13 Nm (133 kgf-cm, 10 ft-lbf)
(k) Connect the shift control cable to the control shaft lever with the nut.
Torque: 15 Nm (153 kgf-cm, 11 ft-lbf)
(l) Connect the switch connector.
2. INSTALL BATTERY
(a) Install the battery bracket reinforcement with the 2 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(b) Install the battery carrier with the 4 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(c) Install the battery tray.
(d) Install the battery with the battery clamp.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. ADJUST SHIFT LEVER POSITION
(a) Adjust the shift lever position Adjustments.
5. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a) Inspect the switch On-Vehicle Inspection.
