Installation








GF1A TRANSFER: 4WD CONTROL ECU: INSTALLATION

INSTALLATION
NOTE: When the 4WD control ECU is replaced with a normal one from another vehicle, perform calibration Programming and Relearning. If the 4WD control ECU is replaced with a new one, calibration is unnecessary.
HINT: Calibrate the 4WD control ECU by performing calibration of the vehicle stability control system.

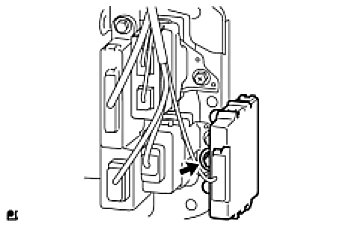

1. INSTALL 4WD CONTROL ECU
(a) Install the ECU with the bolt.
Torque: 4.5 Nm (46 kgf-cm, 40 in-lbf)
(b) Connect the connector.
2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
