P2714
U151F AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: P2714: Pressure Control Solenoid "D" Performance (Shift Solenoid Valve SLT)
DTC P2714 - Pressure Control Solenoid "D" Performance (Shift Solenoid Valve SLT)
DESCRIPTION
The linear solenoid valve (SLT) controls the transmission line pressure for smooth transmission operation based on signals from the throttle position sensor and the vehicle speed sensor. The ECM adjusts the duty ratio* of the SLT solenoid valve to control hydraulic line pressure coming from the primary regulator valve. Appropriate line pressure assures smooth shifting with varying engine outputs.
HINT: *: The duty ratio is the ratio of the current ON time (A) to the total of the current ON and OFF time (A + B).
Duty Ratio (%) = A / (A + B) x 100
MONITOR DESCRIPTION
In any forward position, when the difference between the revolutions of the turbine, intermediate and output shaft exceeds the specified value (varies with intermediate, output speed) determined by the ECM, the ECM illuminates the MIL and outputs the DTC. When shift solenoid valve SLT remains on, the oil pressure goes down and the clutch engagement force decreases.
NOTE: If you continue driving under these conditions, the clutch will burn out and the vehicle will no longer be drivable.
MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS
ON malfunction:
ON malfunction (a):
ON malfunction (b):
ON malfunction (c):
TYPICAL MALFUNCTION THRESHOLDS
[ON malfunction]
Detection condition: Total accumulated time of ON malfunctions (a), (b) and (c) is 1 second or more

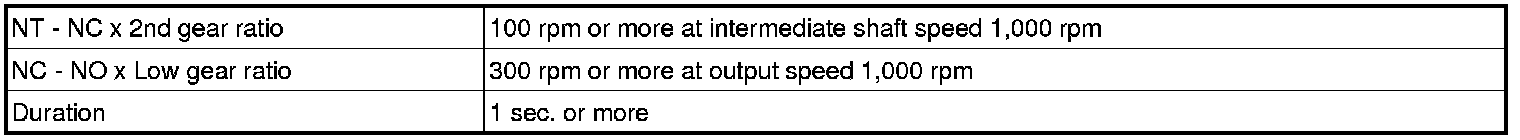

ON malfunction (a):
ON malfunction (b):
ON malfunction (c):
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT: Performing Techstream's Active Test allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the Active Test early in troubleshooting is one way to save time.
The Data List can be displayed during the Active Test.
1. Warm up the engine.
2. Turn the ignition switch OFF.
3. Connect Techstream to the DLC3.
4. Turn the ignition switch ON and turn the tester ON.
5. Enter the following menus: Powertrain / Engine and ECT / Active Test.
6. Perform the Active Test.
ECM:
HINT: *: "Activate the Solenoid (SLT)" in the Active Test is performed to check the line pressure changes by connecting SST to the automatic transaxle, which is used in the HYDRAULIC TEST Hydraulic Test as well. Please note that the pressure values in the Active Test and HYDRAULIC TEST are different.
PROCEDURE
1. CHECK OTHER DTCS OUTPUT (IN ADDITION TO DTC P2714)
(a) Connect Techstream to the DLC3.
(b) Turn the ignition switch ON and turn the tester ON.
(c) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
(d) Read the DTCs using the tester.
Result:
HINT: If any other codes besides P2714 are output, perform troubleshooting for those DTCs first.
B -- GO TO DTC CHART
A -- Continue to next step.
2. INSPECT SHIFT SOLENOID VALVE SLT
(a) Remove the shift solenoid valve SLT.
(b) Measure the resistance of the solenoid valve.
Standard resistance:
5.0 to 5.6 Ohms at 20°C (68°F)
(c) Connect the battery's positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.
OK:
Valve moves and makes operating noise.
NG -- REPLACE SHIFT SOLENOID VALVE SLT
OK -- Continue to next step.
3. INSPECT TRANSMISSION VALVE BODY ASSEMBLY
(a) Check the transmission valve body assembly.
OK:
There are no foreign objects on each valve.
NG -- REPAIR OR REPLACE TRANSMISSION VALVE BODY ASSEMBLY
OK -- Continue to next step.
4. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY
(a) Check the torque converter clutch assembly Testing and Inspection.
OK:
The torque converter clutch operates normally.
NG -- REPLACE TORQUE CONVERTER CLUTCH ASSEMBLY
OK -- REPAIR OR REPLACE AUTOMATIC TRANSAXLE ASSEMBLY
