Manual Air Conditioning

NOTE: The V6 can use the magnetic clutch or flow control valve compressor system, the 4 cylinder uses only the flow control valve.

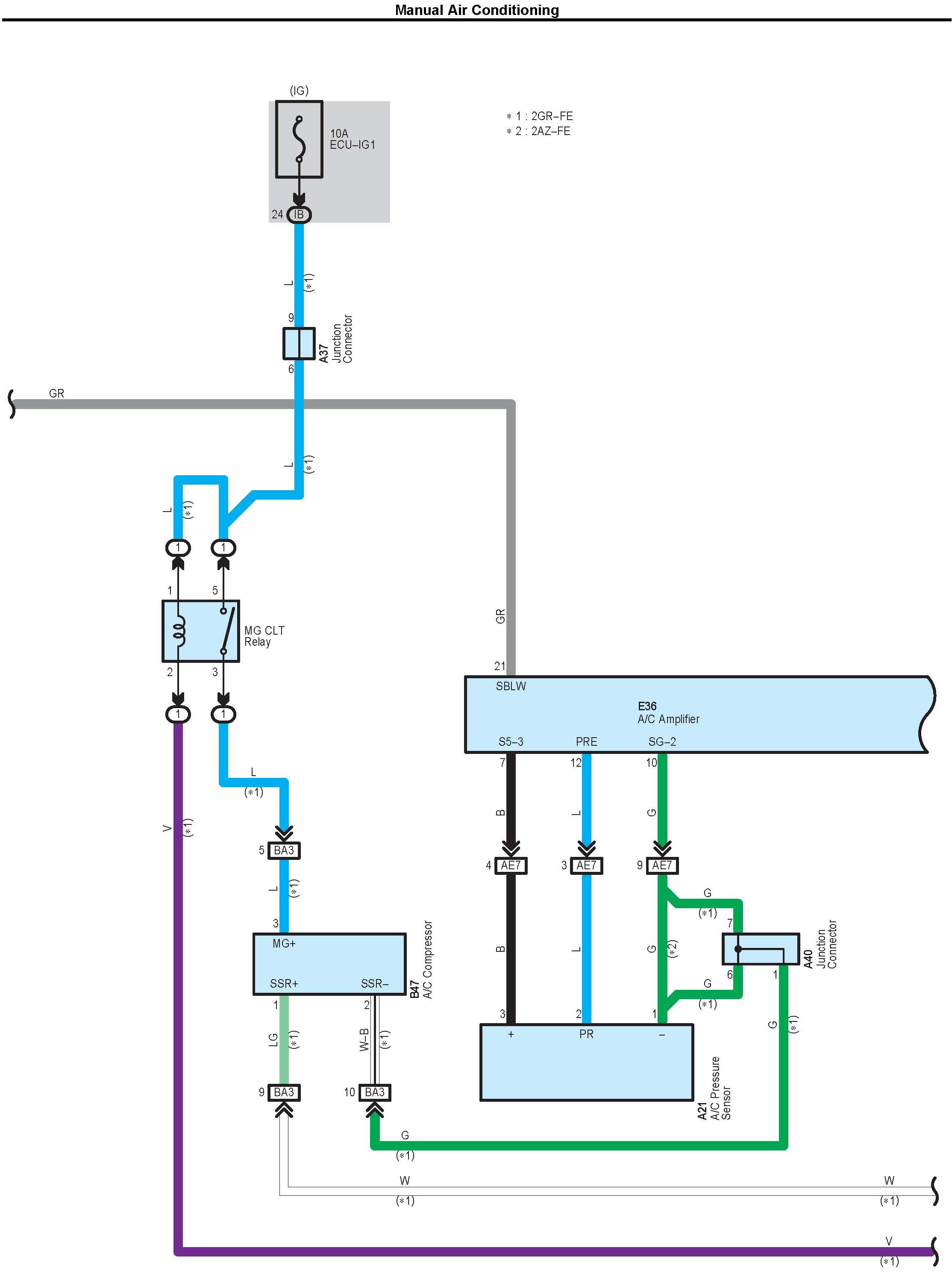

Manual Air Conditioning Part 1:

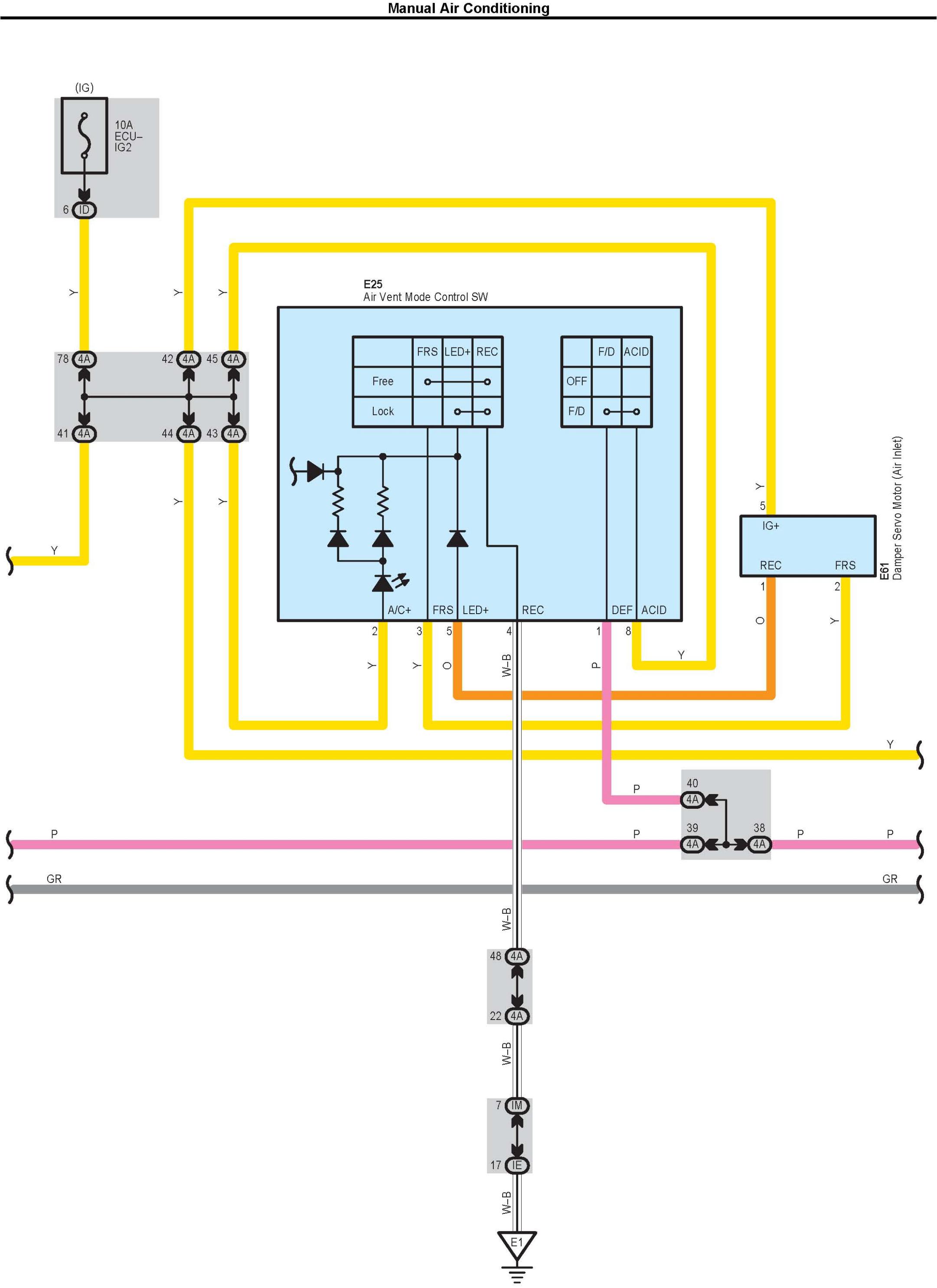

Manual Air Conditioning Part 2:

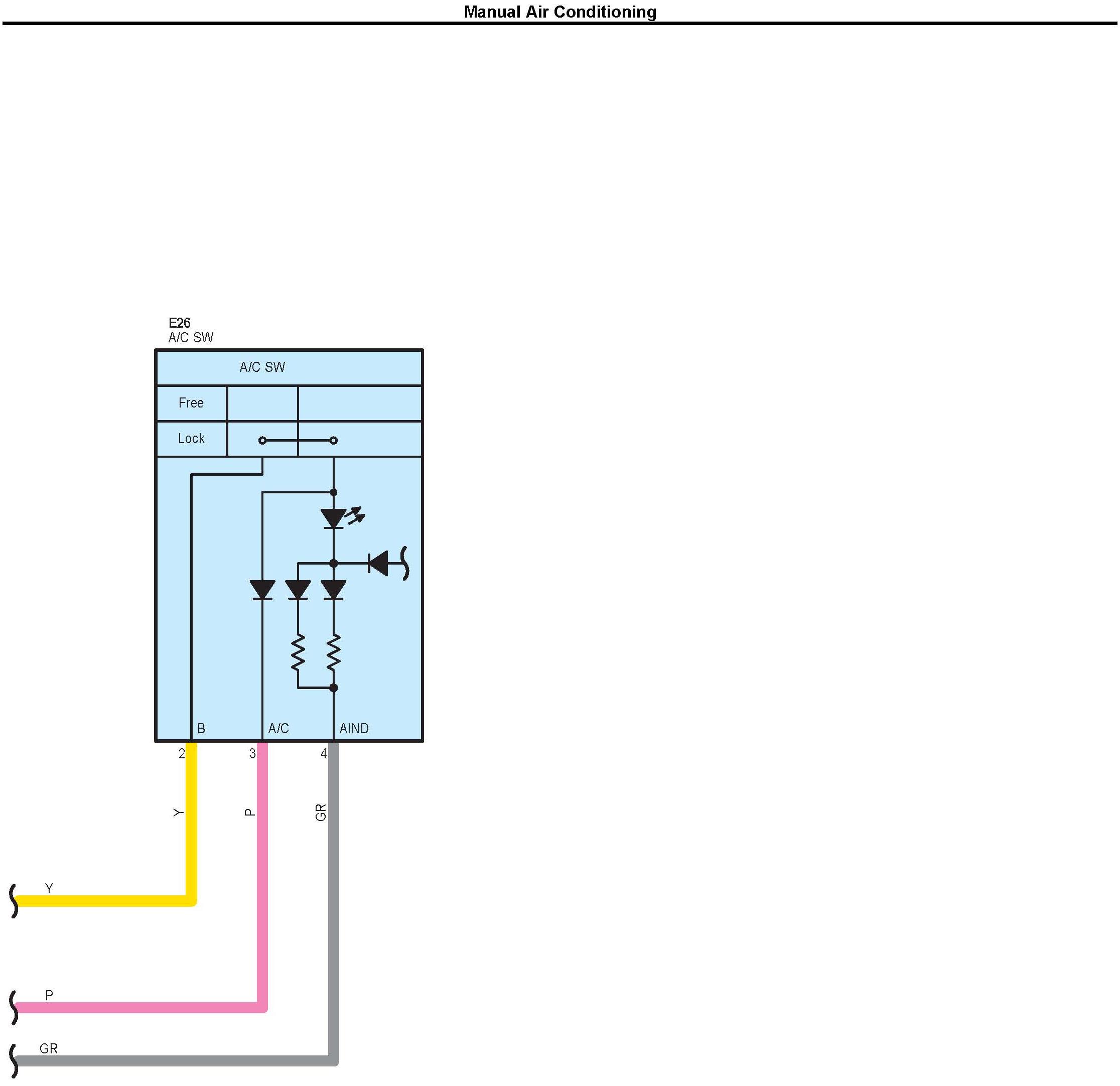

Manual Air Conditioning Part 3:

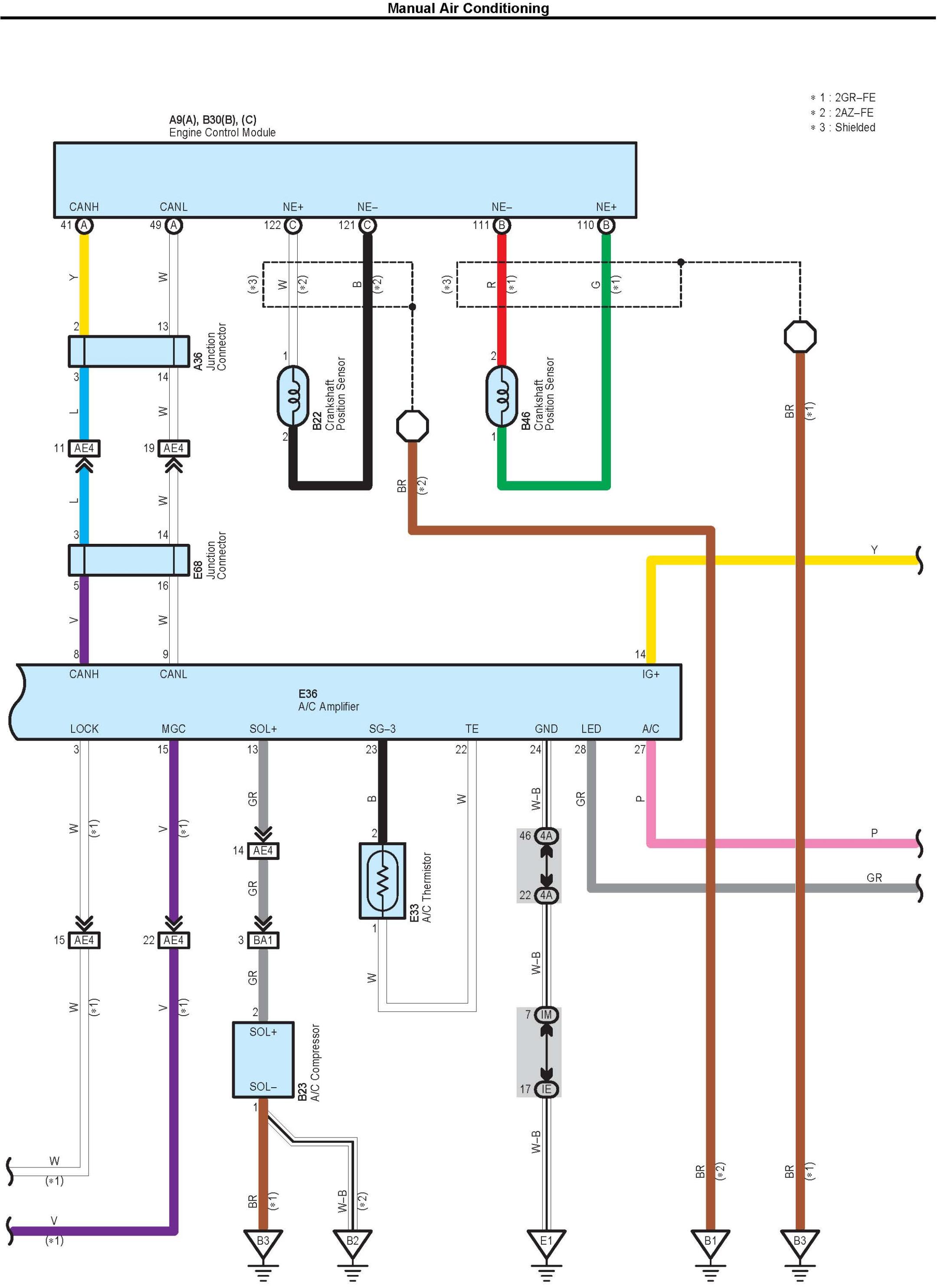

Manual Air Conditioning Part 4:

Manual Air Conditioning Part 5:

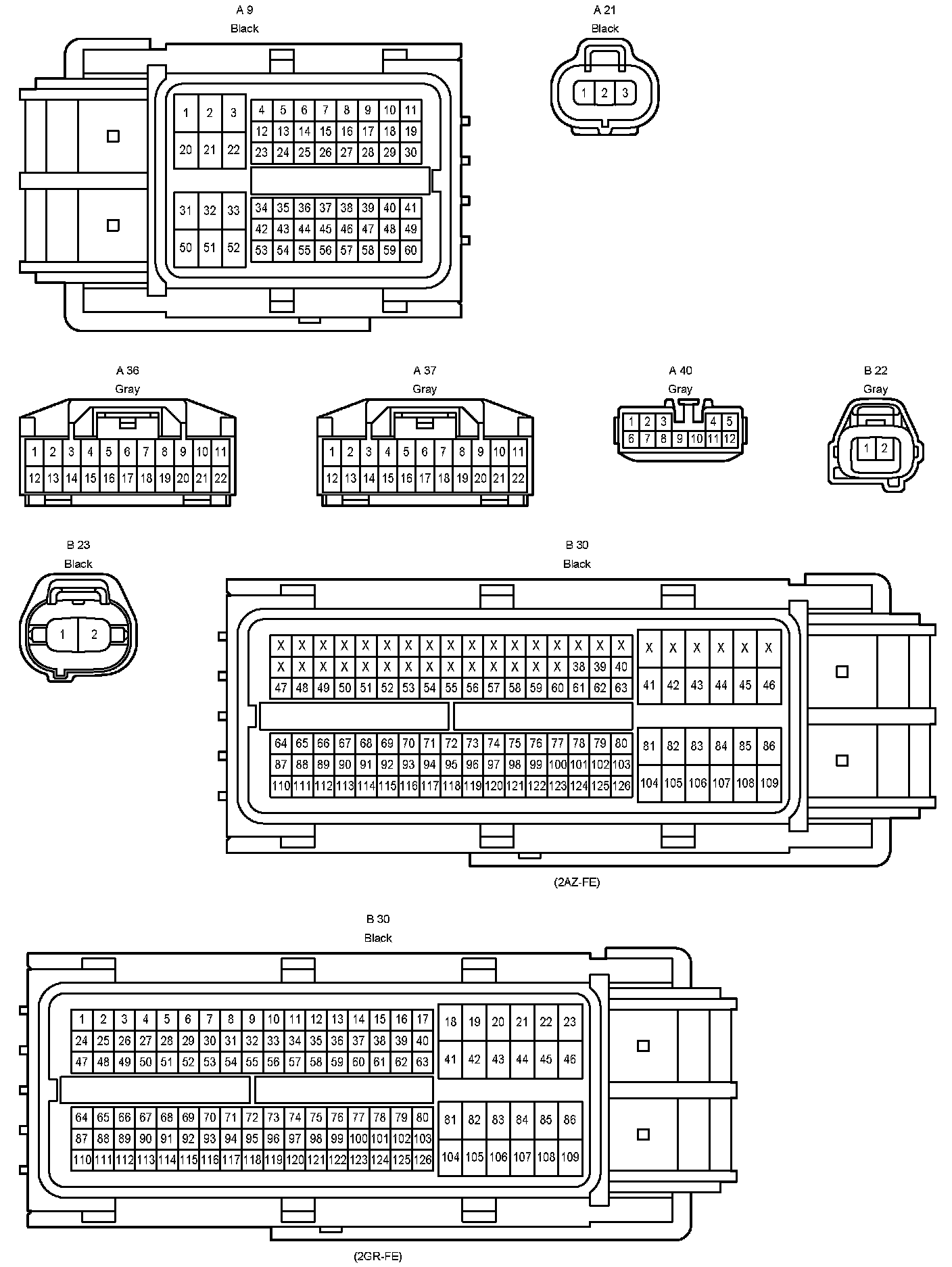

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
