2GR-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR: INSTALLATION

INSTALLATION

1. INSTALL KNOCK SENSOR

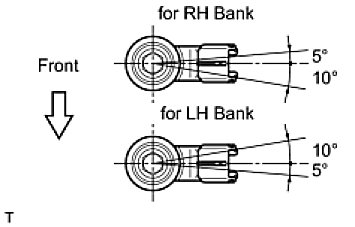

(a) Install the 2 sensors with the 2 bolts as shown in the illustration.
Torque: 20 Nm (205 kgf-cm, 15 ft-lbf)
NOTE: Make sure that the knock sensor is in the correct position.

(b) Connect the 2 sensor connectors.
2. INSTALL INTAKE MANIFOLD Installation

3. INSTALL INTAKE AIR SURGE TANK ASSEMBLY Installation

4. INSTALL ENGINE ASSEMBLY
(a) Install the engine Installation.
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. CHECK FOR ENGINE COOLANT LEAKS Testing and Inspection

7. CHECK FOR FUEL LEAKS
8. CHECK FOR ENGINE OIL LEAKS Replacement
