Disassembly

HEATING / AIR CONDITIONING: COMPRESSOR (for 2UZ-FE): DISASSEMBLY

DISASSEMBLY





1. REMOVE COOLER BRACKET
(a) Disengage the 2 clamps.
(b) Remove the screw and the cooler bracket.
2. REMOVE MAGNET CLUTCH ASSEMBLY





(a) Clamp the cooler compressor in a vise.

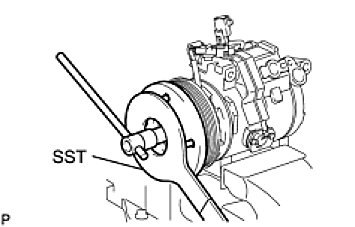

(b) Using SST, hold the magnet clutch hub.
SST: 09985-00270
(c) Remove the bolt, magnet clutch hub and magnet clutch washer(s).
HINT: There is no set number of magnet clutch washers since they are used for adjusting.

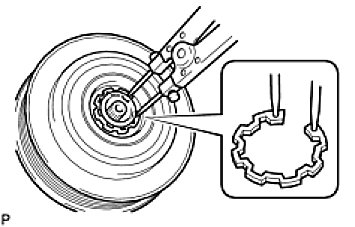

(d) Using a snap ring expander, remove the snap ring and the magnet clutch rotor.
NOTE: Do not damage the seal cover of the bearing when removing the snap ring.

(e) Disconnect the connector.

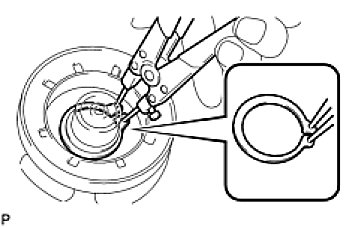

(f) Using a snap ring expander, remove the snap ring and magnet clutch stator.
