System Diagram








A750E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSMISSION SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

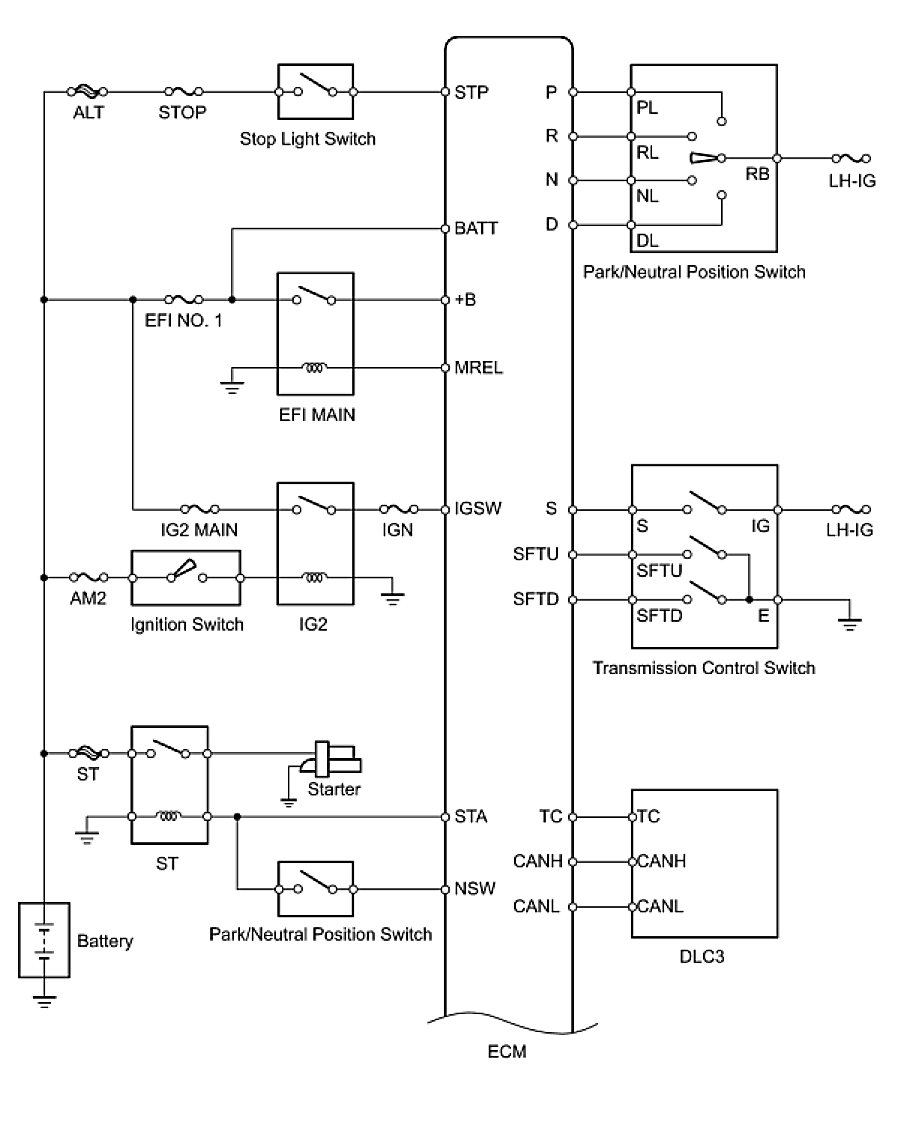

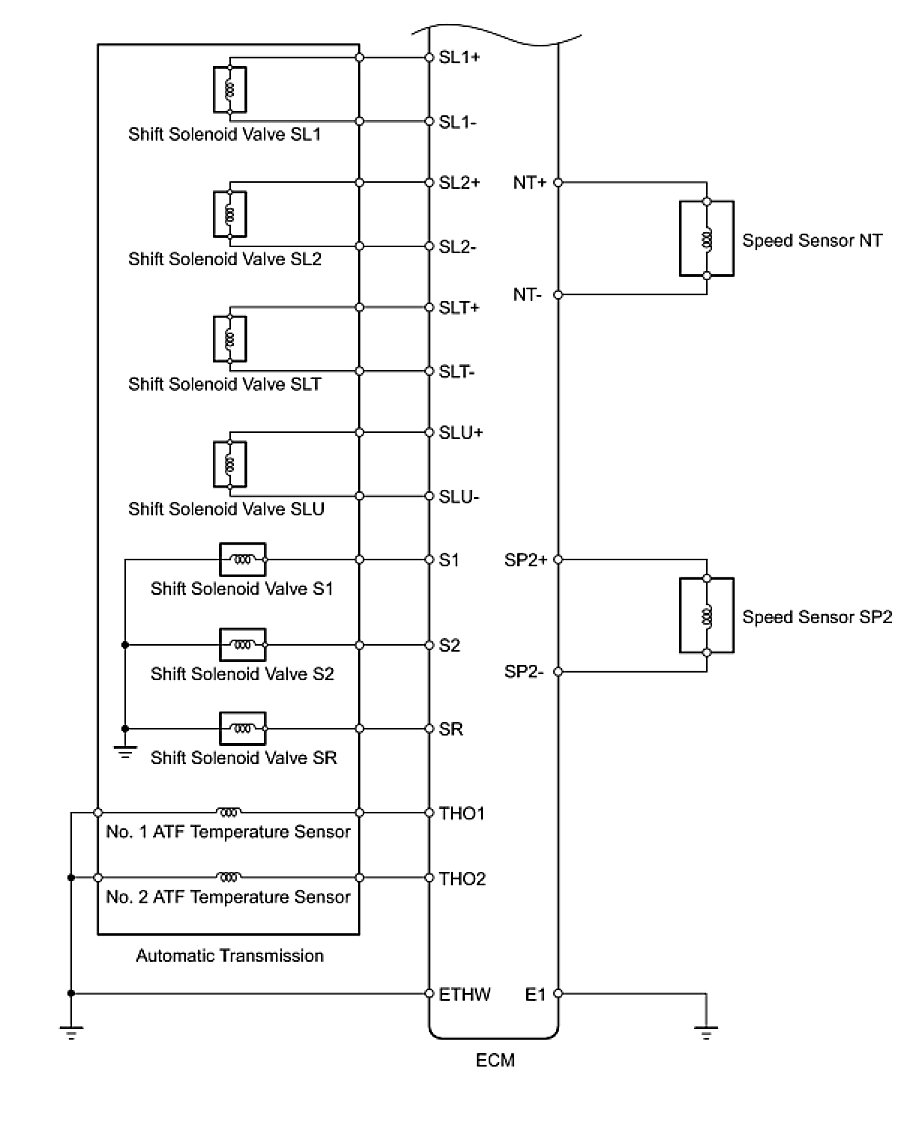

The configuration of the electronic control system in the A750E automatic transmission is as shown in the following chart.
