Installation

WINDOW / GLASS: BACK DOOR POWER WINDOW SWITCH: INSTALLATION

INSTALLATION

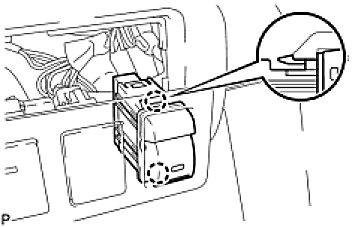

1. INSTALL BACK DOOR POWER WINDOW REGULATOR SWITCH ASSEMBLY






(a) Engage the 2 claws and install the back door power window regulator switch.

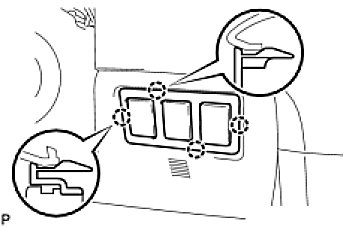

2. INSTALL NO. 2 SWITCH HOLE BASE






(a) Engage the 4 claws and install the No. 2 switch hole base.
