Fuel Pump Control Unit
Fuel Pump Control Unit

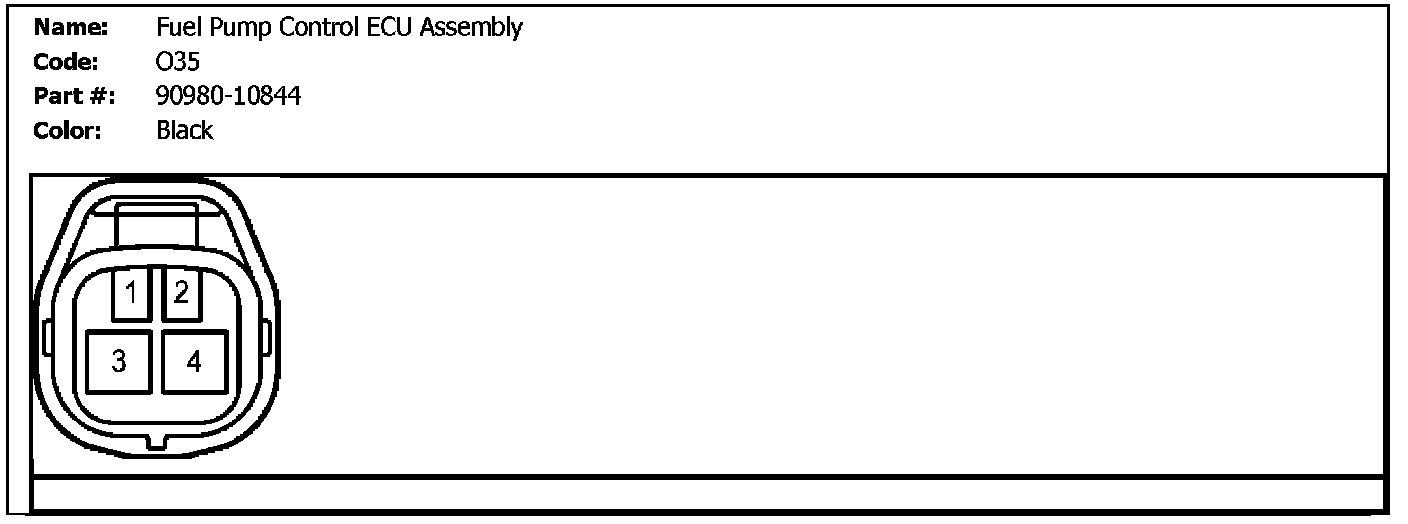

O35 (Fuel Pump Control ECU Assembly):

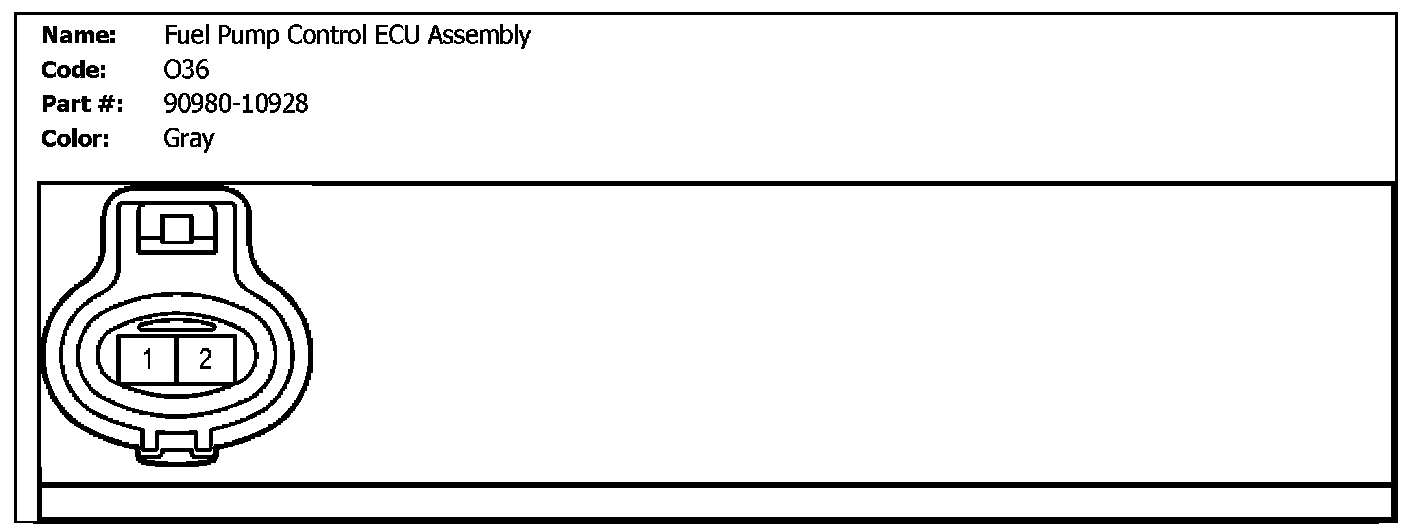

O36 (Fuel Pump Control ECU Assembly):
