Transmission Position Sensor/Switch, A/T
Transmission Position Sensor/Switch, A/T

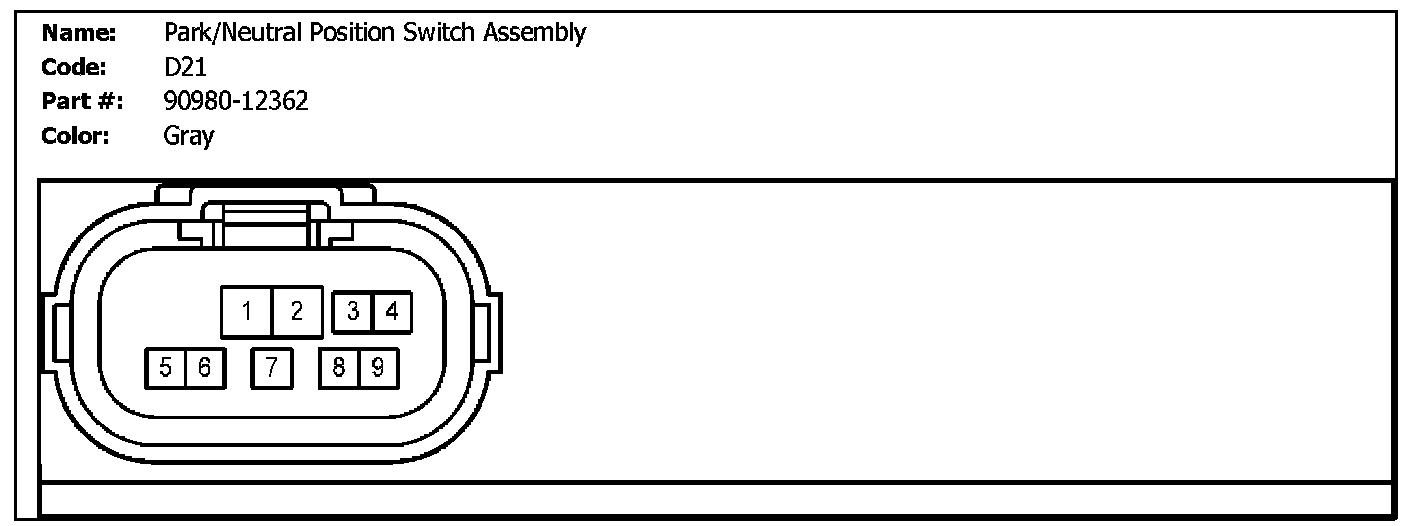

D21 (Park/Neutral Position Switch Assembly):
