Alignment: Specifications
Front Toe-In:

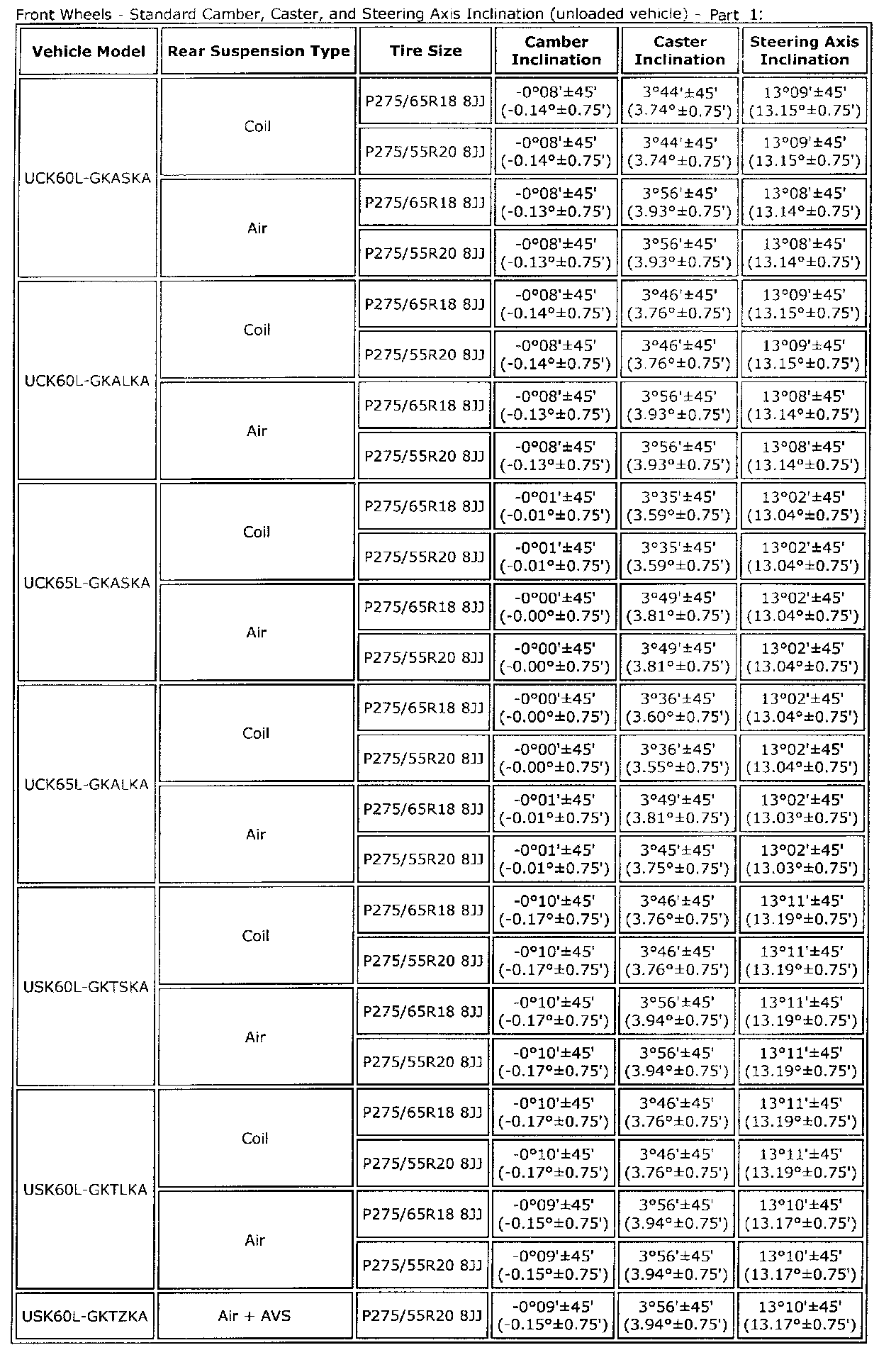

Front Camber, Caster, and SAI (1 Of 2):

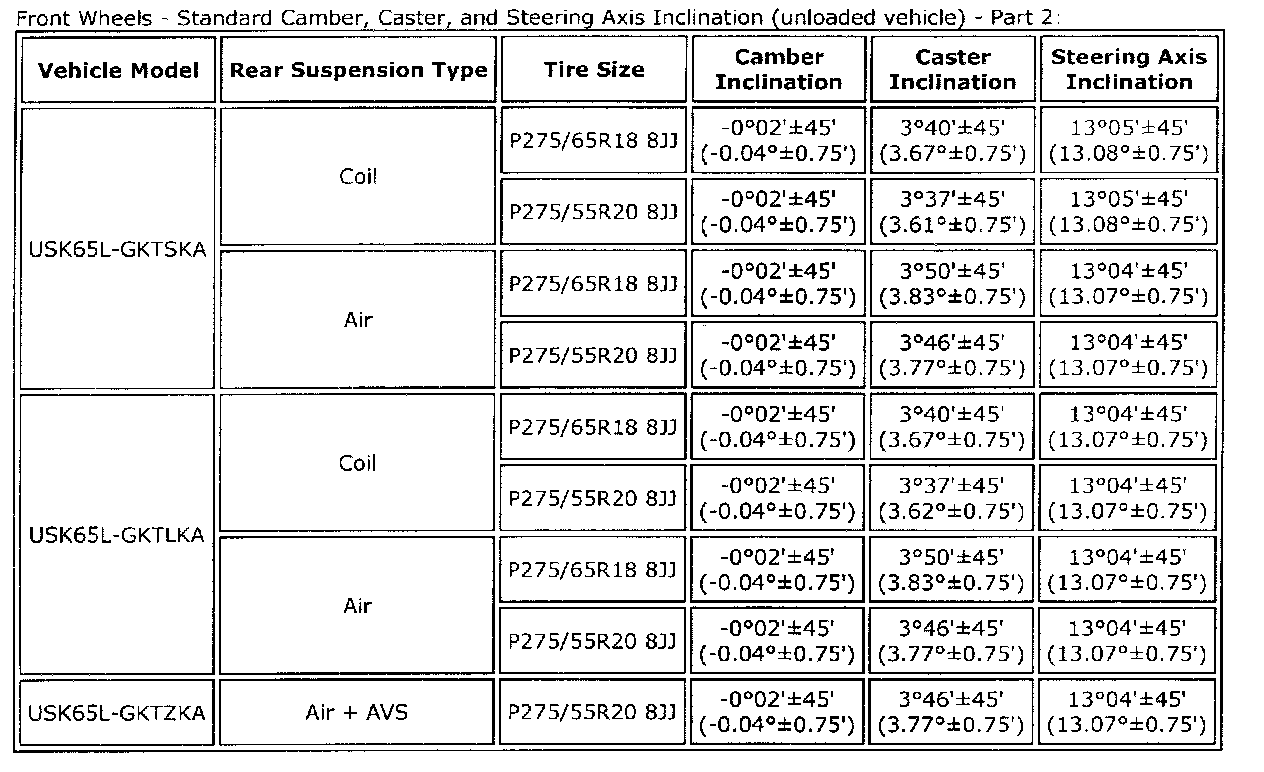

Front Camber, Caster, and SAI (2 Of 2):

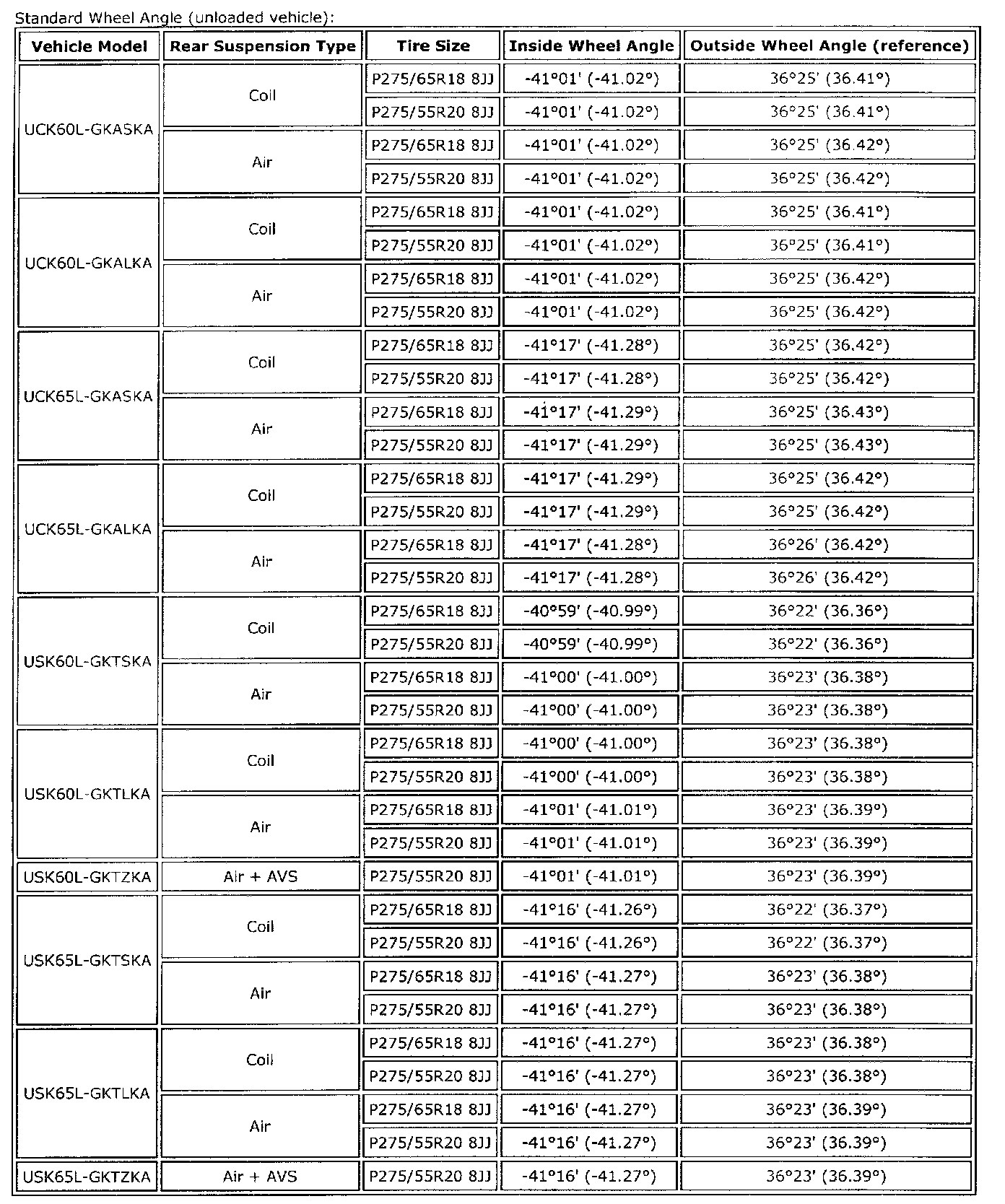

Standard Wheel Angle:

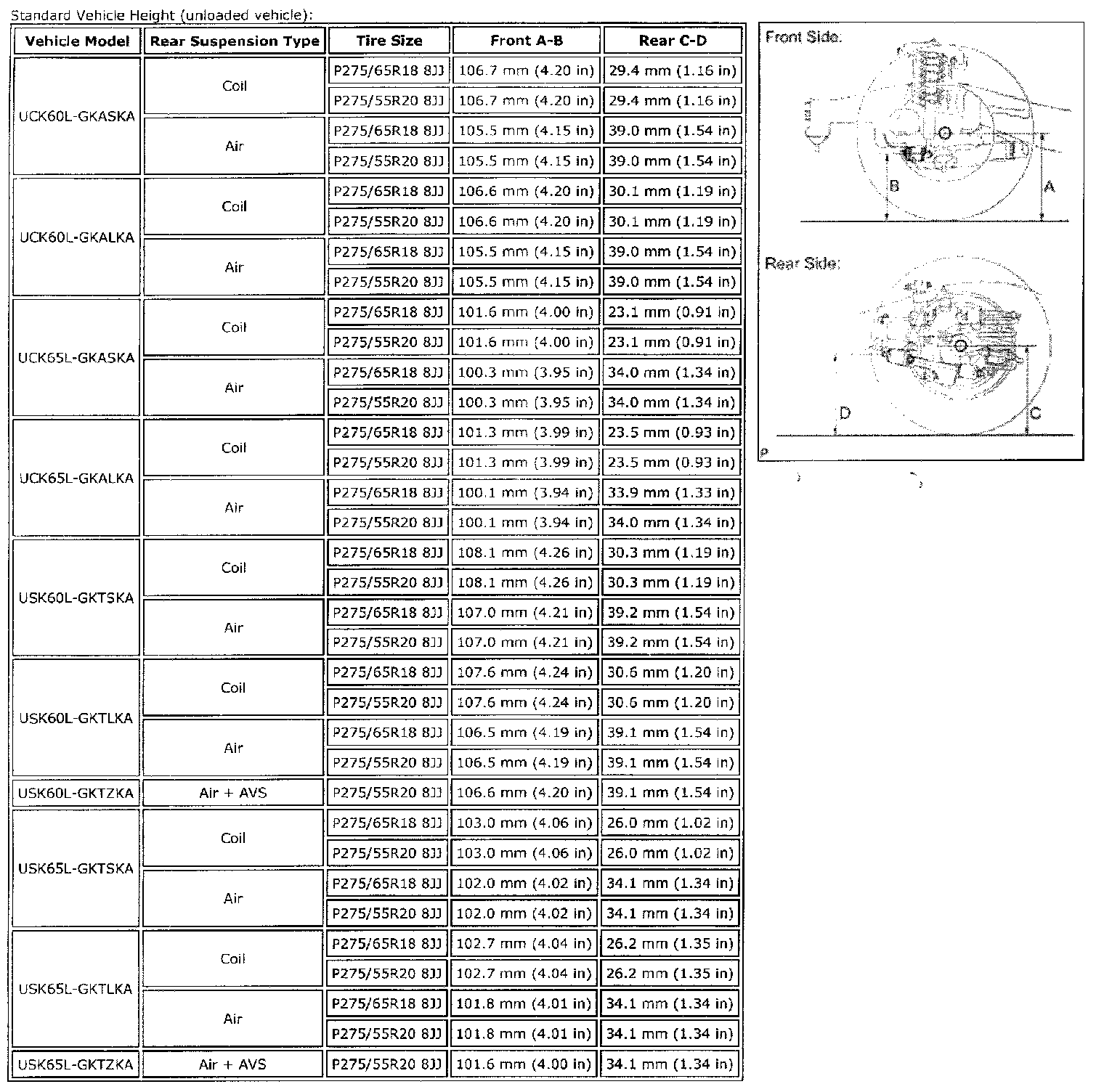

Standard Vehicle Height:

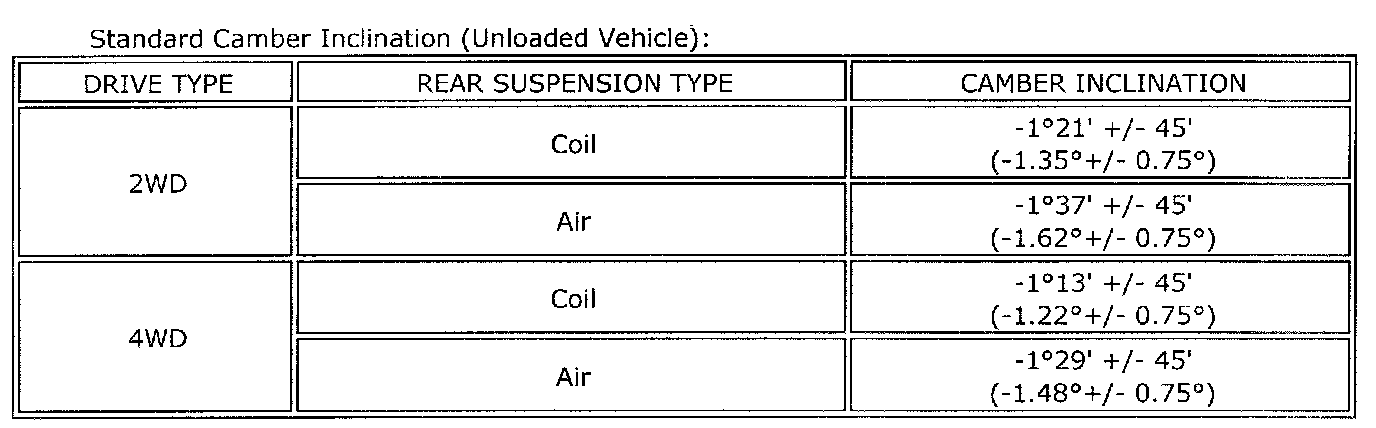

Rear Camber Inclination:
