2UZ-FE ENGINE CONTROL: CAMSHAFT POSITION SENSOR: INSTALLATION

INSTALLATION





1. INSTALL VVT SENSOR
(a) Install the 2 VVT sensors with the 2 bolts.
Torque: 7.5 Nm (76 kgf-cm, 66 in-lbf)
(b) Connect the 2 VVT sensor connectors.
2. INSTALL INTAKE MANIFOLD Installation

3. INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY Installation

4. INSTALL NO. 2 FUEL PIPE SUB-ASSEMBLY Installation

5. INSTALL EFI FUEL PIPE CLAMP
6. INSTALL NO. 2 WATER BY-PASS PIPE Installation

7. CONNECT VACUUM HOSE ASSEMBLY Installation

8. INSTALL AIR CLEANER HOSE ASSEMBLY Installation

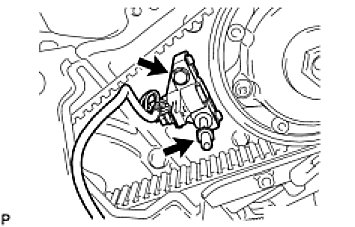

9. INSTALL CAMSHAFT POSITION SENSOR






(a) Install the camshaft position sensor with the bolt and stud bolt.
Torque: 7.5 Nm (80 kgf-cm, 66 in-lbf)
10. INSTALL NO. 3 TIMING BELT COVER SUB-ASSEMBLY LH Installation

11. CONNECT NO. 1 RADIATOR HOSE Installation

12. INSTALL DRIVE BELT Installation

13. ADD ENGINE COOLANT Service and Repair

14. INSPECT FOR COOLANT LEAK Testing and Inspection

15. INSPECT FOR FUEL LEAK Testing and Inspection

16. INSTALL NO. 1 ENGINE UNDER COVER Replacement
