2UZ-FE EMISSION CONTROL: AIR INJECTION DRIVER: INSTALLATION

INSTALLATION

1. INSTALL AIR INJECTION CONTROL DRIVER ASSEMBLY

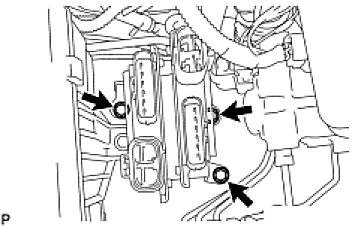

(a) Install the air injection control driver assembly with the 3 bolts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)






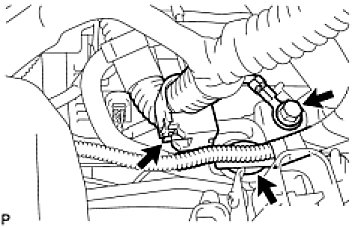

(b) Connect the 2 wire harness clamps.
(c) Install the bolt.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)

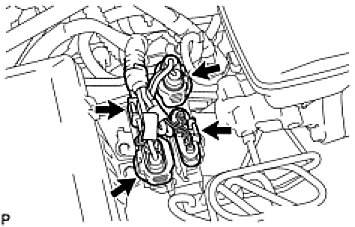

(d) Connect the 4 air injection control driver assembly connectors.
