Removal

2UZ-FE ENGINE CONTROL: IGNITION COIL AND SPARK PLUG: REMOVAL

REMOVAL

1. REMOVE THROTTLE BODY COVER ASSEMBLY Removal

2. REMOVE AIR CLEANER HOSE ASSEMBLY Removal

3. REMOVE FRONT FENDER APRON SEAL LH Removal

4. REMOVE NO. 2 AIR HOSE Removal

5. REMOVE NO. 3 AIR TUBE Removal

6. REMOVE AIR SWITCHING VALVE ASSEMBLY (for Bank 1) Removal

7. REMOVE FRONT FENDER APRON SEAL RH Removal

8. DISCONNECT NO. 1 WATER BY-PASS PIPE Removal

9. DISCONNECT NO. 2 AIR INJECTION SYSTEM HOSE Removal

10. REMOVE NO. 2 AIR TUBE Removal

11. REMOVE AIR SWITCHING VALVE ASSEMBLY (for Bank 2) Removal

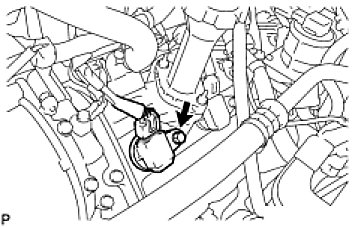

12. REMOVE IGNITION COIL ASSEMBLY






(a) Disconnect the 8 ignition coil assembly connectors.
(b) Remove the 8 bolts and pull out the 8 ignition coil assemblies.
13. REMOVE SPARK PLUG
(a) Using a 16 mm plug wrench, remove the 8 spark plugs.
