Emission Control Systems








SPECIFICATIONS: 2UZ-FE EMISSION CONTROL: SERVICE DATA

SERVICE DATA

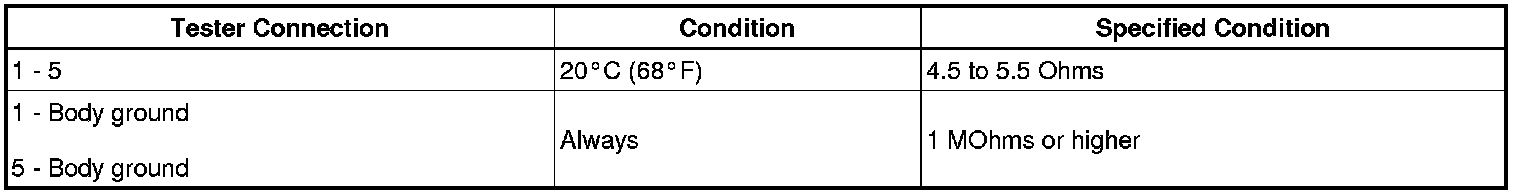

Air Pump (for Bank 1):

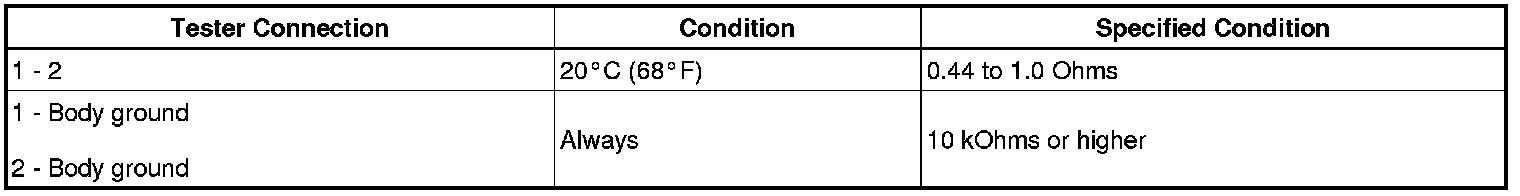

Air Pump (for Bank 2):






Air Switching Valve:






Purge VSV:
