Torque Specifications








SPECIFICATIONS: HEATING / AIR CONDITIONING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

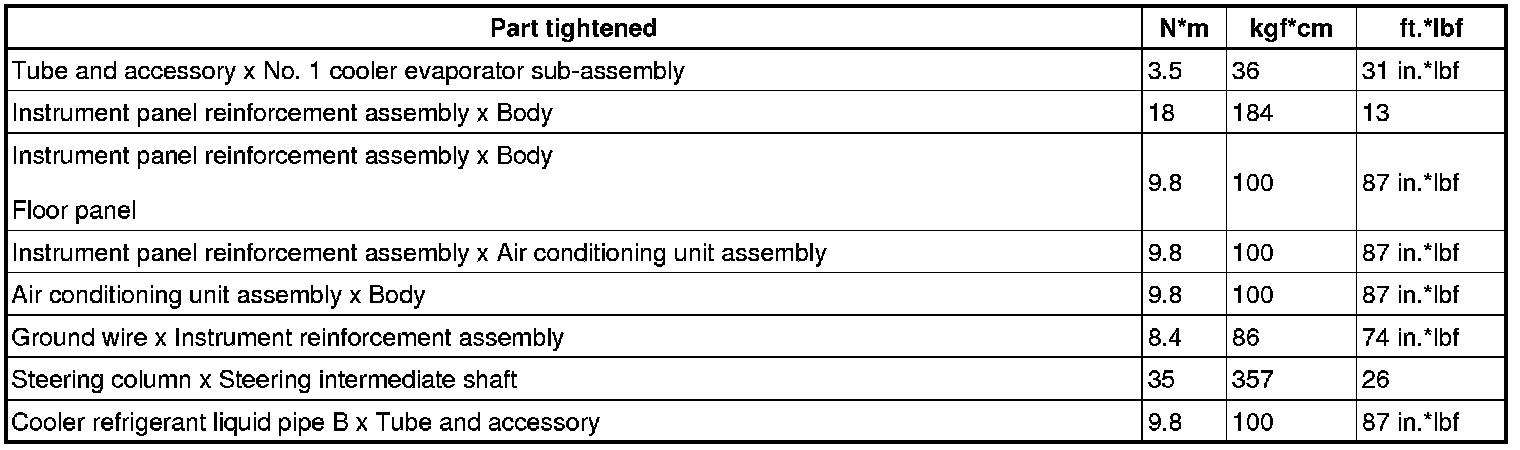

FRONT AIR CONDITIONING UNIT

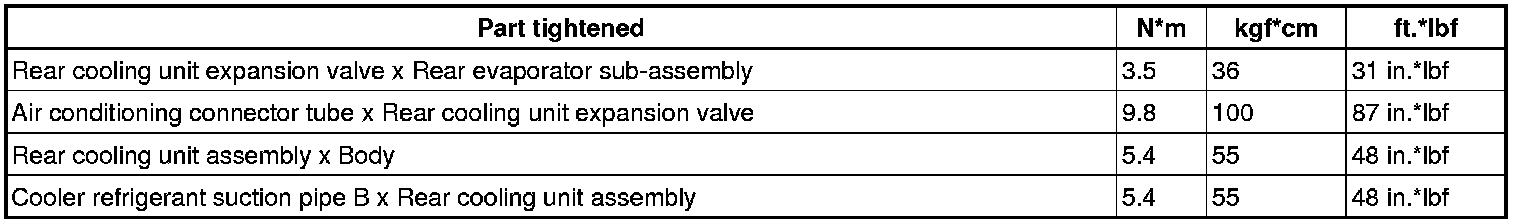

REAR AIR CONDITIONING UNIT

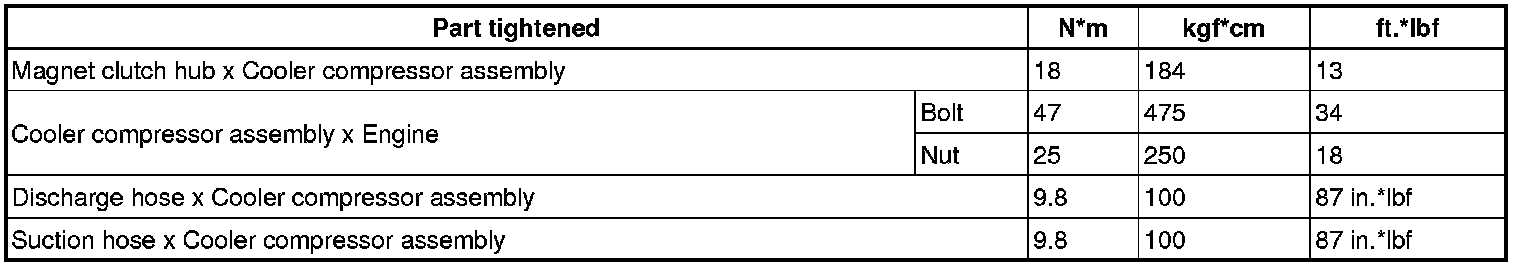

COMPRESSOR (for 2UZ-FE)

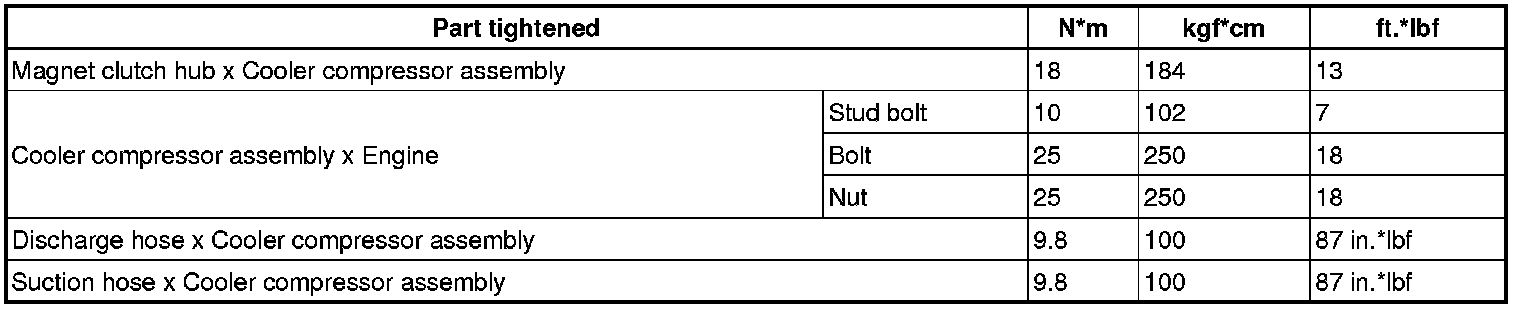

COMPRESSOR (for 3UR-FE)

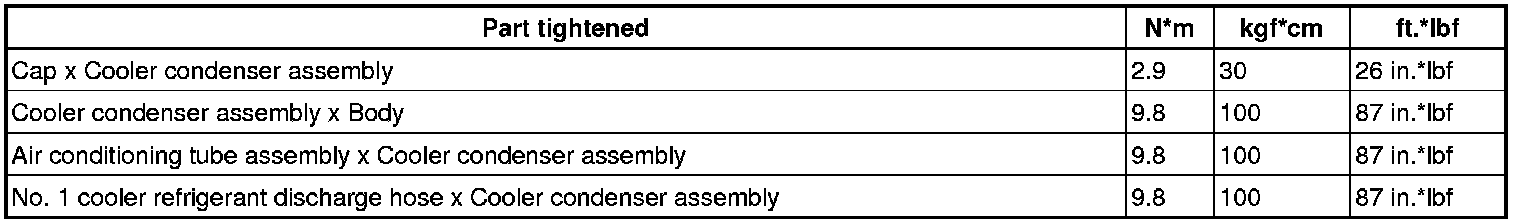

CONDENSER





CONDENSER FAN





PRESSURE SWITCH
