Removal

SEAT: REAR NO. 2 SEAT ASSEMBLY (for Power Seat Type LH Side): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

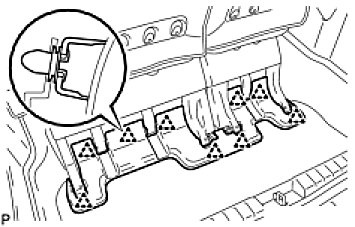

2. REMOVE REAR NO. 2 SEAT LEG SIDE GARNISH SUB-ASSEMBLY

(a) Disengage the 9 clips and remove the rear No. 2 seat leg side garnish sub-assembly.
(b) Remove the 9 clips from the rear No. 2 seat leg side garnish sub-assembly.

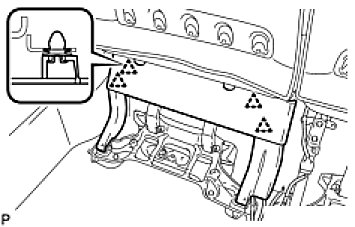

3. REMOVE REAR SEAT LEG SIDE GARNISH SUB-ASSEMBLY

(a) Disengage the 4 clips and remove the rear seat leg side garnish sub-assembly.
(b) Remove the 4 clips from the rear seat leg side garnish sub-assembly.

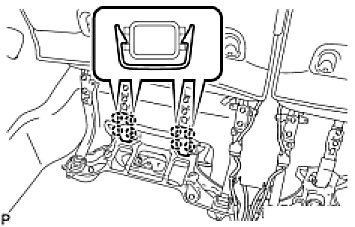

4. REMOVE NO. 2 SEAT HINGE COVER

(a) Disengage the 8 claws and remove both No. 2 seat hinge covers.

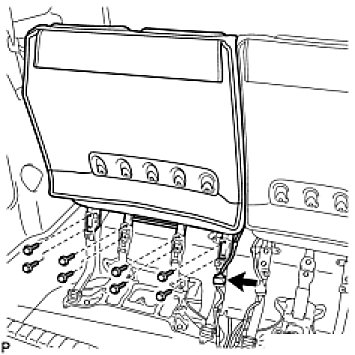

5. REMOVE REAR NO. 2 SEAT ASSEMBLY

(a) Disconnect the connector.
(b) Remove the 8 bolts.
