Removal
CRUISE CONTROL MAIN SWITCH: REMOVALREMOVAL 1.
DISCONNECT BATTERY NEGATIVE TERMINAL
2.
REMOVE STEERING WHEEL COVER LOWER NO.2
Removal 3.
REMOVE STEERING WHEEL COVER LOWER NO.3
Removal 4.
REMOVE HORN BUTTON ASSEMBLY
Removal 5.
REMOVE CRUISE CONTROL MAIN SWITCH

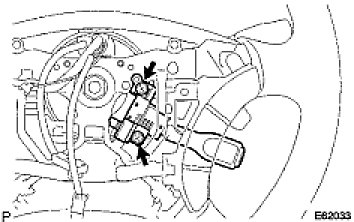

(a)
Disconnect the connectors.
(b)

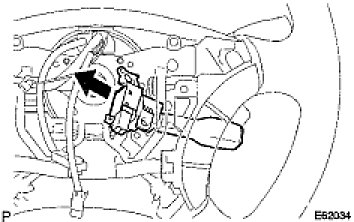

Remove the 2 screws and cruise control main switch.
