Power Window Master Switch








WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH: INSPECTION

INSPECTION

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (w/ Jam Protection Function)

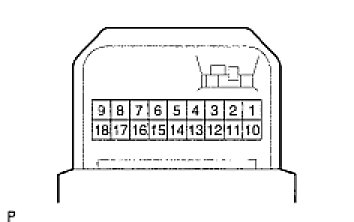

(a) Check the resistance between the terminals of the switch when the switch is operated.
Standard:

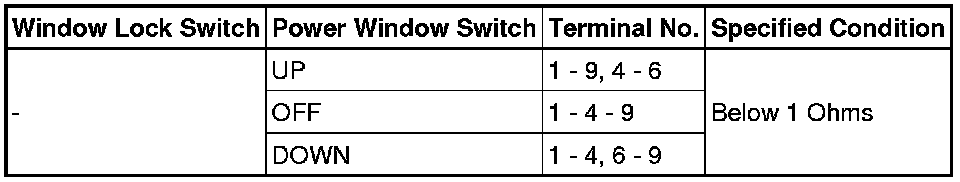

AUTO (driver side) switch

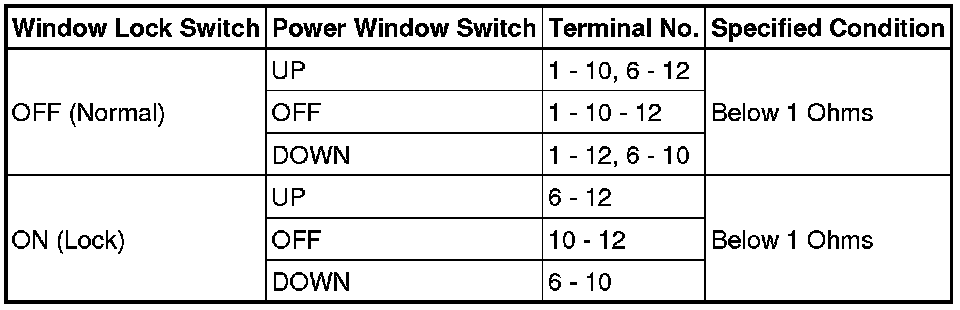

Passenger side switch

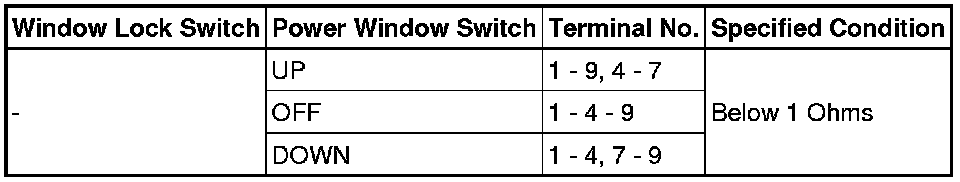

Rear LH switch






Rear RH switch






If the result is not as specified, replace the switch assembly.
2. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (w/o Jam Protection Function)






(a) Check the resistance between the terminals of the switch when the switch is operated.
Standard:
AUTO (driver side) switch






Passenger side switch






Rear LH switch






Rear RH switch






If the result is not as specified, replace the switch assembly.
