Removal
CRUISE CONTROL: DISTANCE CONTROL ECU: REMOVALREMOVAL 1.
REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
2.
REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
3.
REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY (W/ STEREO COMPONENT AMPLIFIER)
4.

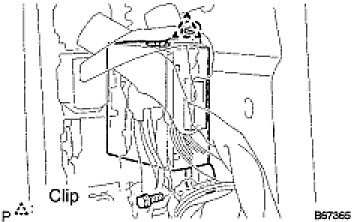

REMOVE DISTANCE CONTROL ECU ASSEMBLY
(a)
Remove the bolt.
(b)
Disengage the clip and remove the distance control ECU assembly.
