Timing Cover

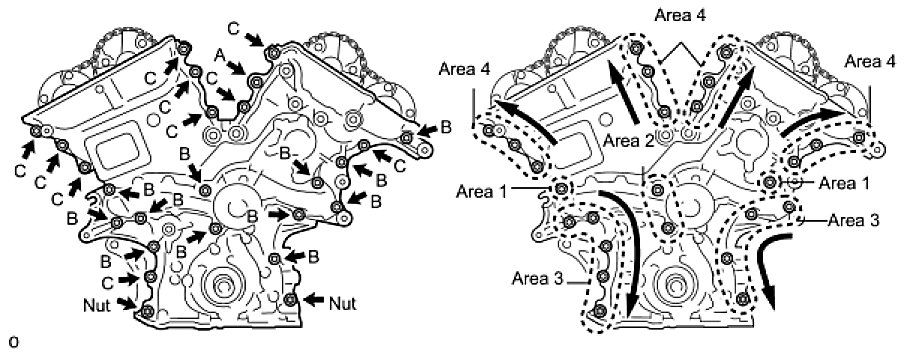

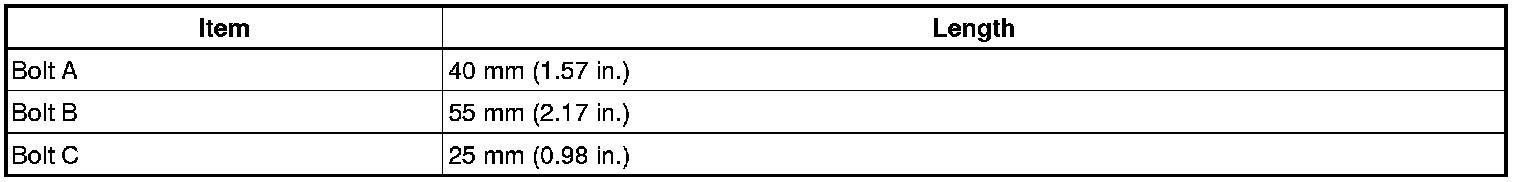

TIMING CHAIN COVERBolt lengthFully tighten the bolts in: Area 1 and Area 2.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
Fully tighten the bolts and nuts in: Area 3.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
Fully tighten the bolts in: Area 4.
Bolt A - Torque: 43 Nm (438 kgf-cm, 32 ft-lbf)
Except bolt A - Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
Chain Cover Plate
Torque: 9.1 Nm (93 kgf-cm, 81 in-lbf)
