3MZ-FE ENGINE CONTROL SYSTEM: VVT SENSOR:REMOVAL HINT: A bolt without a torque specification is shown in the standard bolt chart (
Standard Bolt - Specified Torque For Standard Bolts).
1.
REMOVE AIR CLEANER INLET ASSEMBLY
2.
REMOVE AIR CLEANER ASSEMBLY
3.

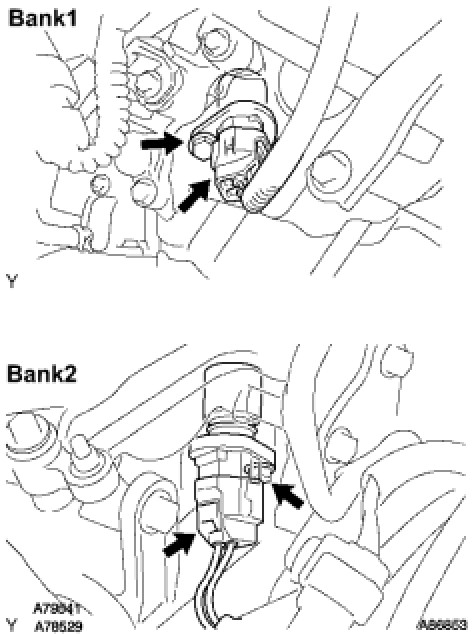

REMOVE VVT SENSOR
(a)
Disconnect the sensor connector.
(b)
Remove the bolt and sensor.
