Installation

INSTRUMENT PANEL: INSTRUMENT PANEL SAFETY PAD:

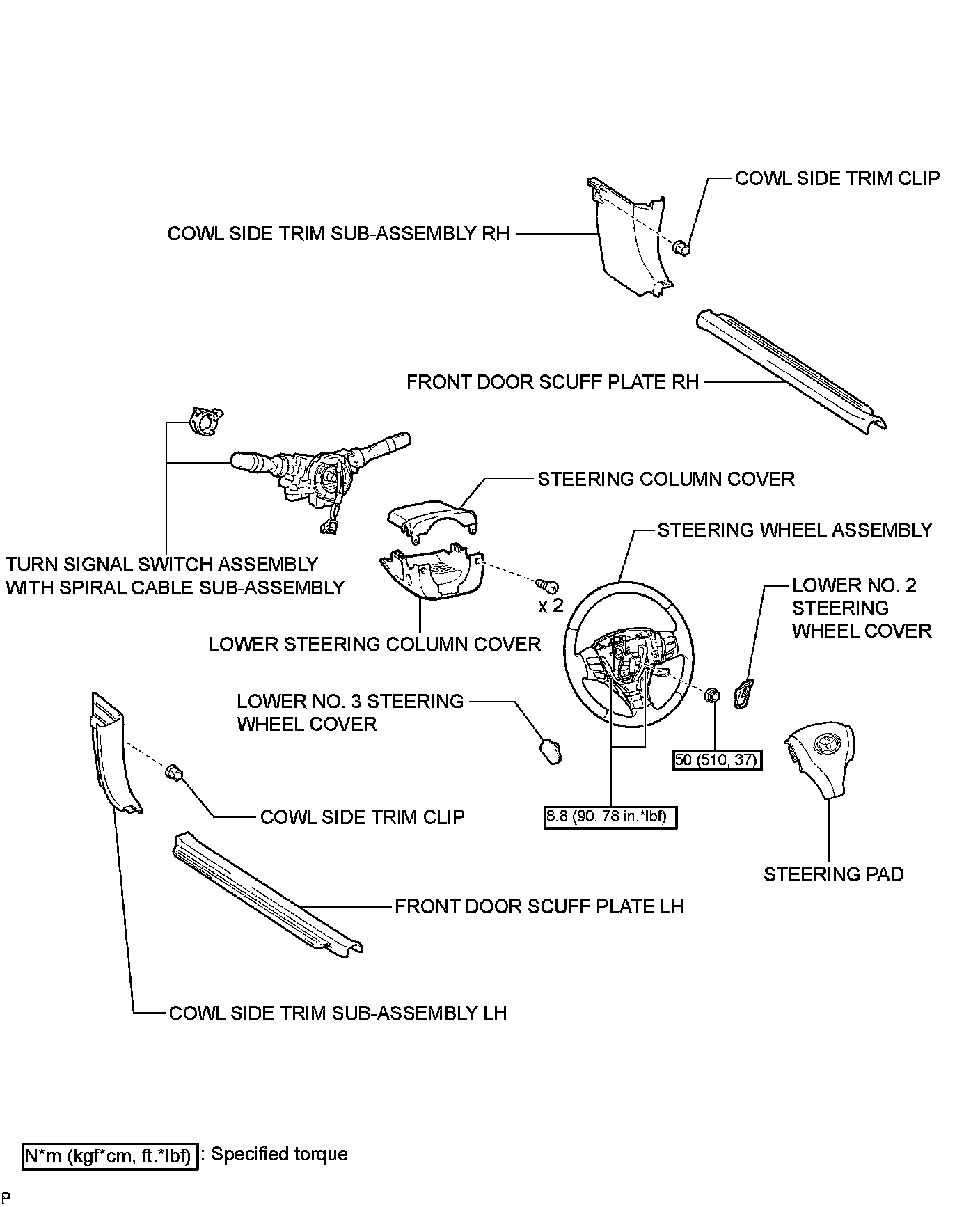

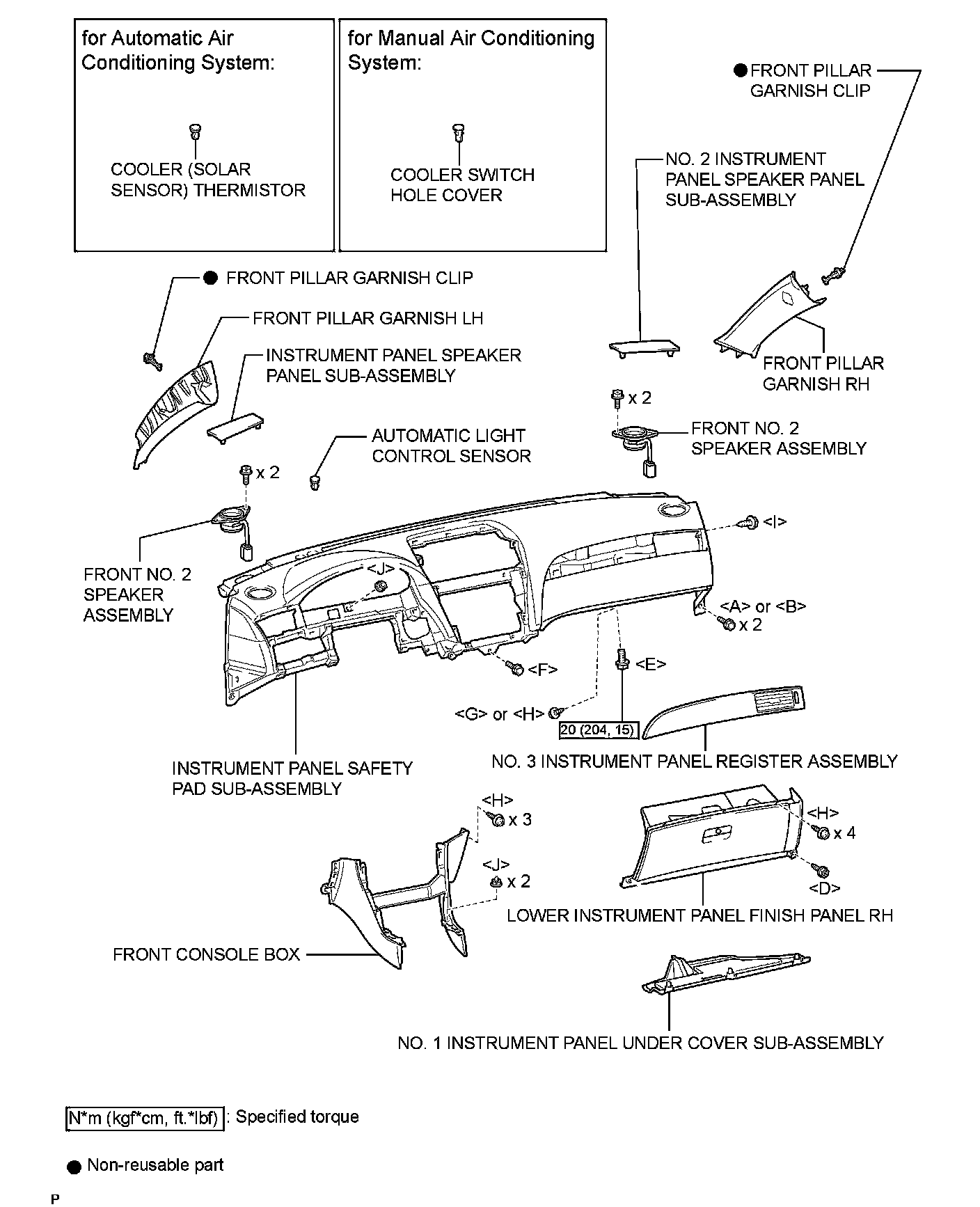

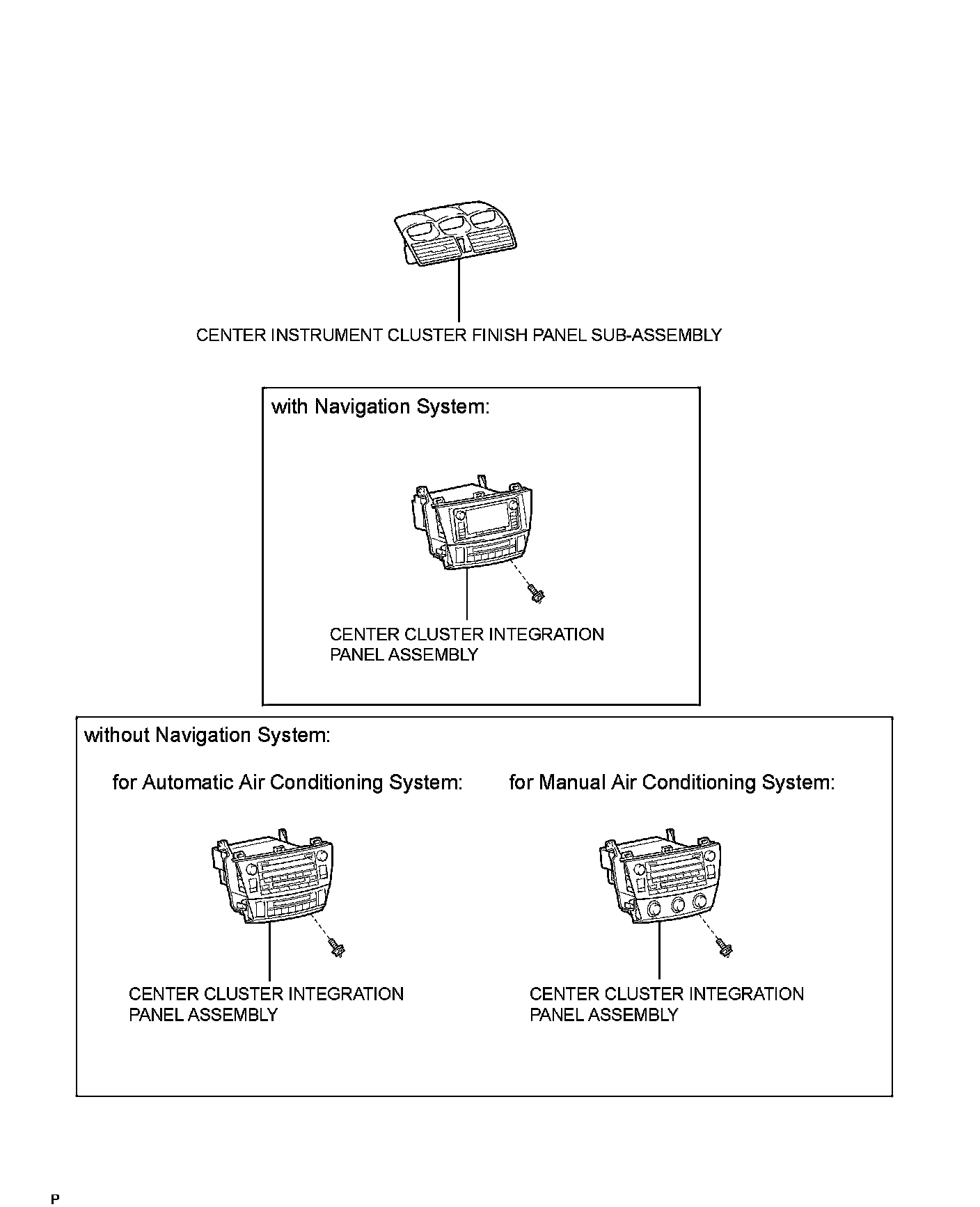

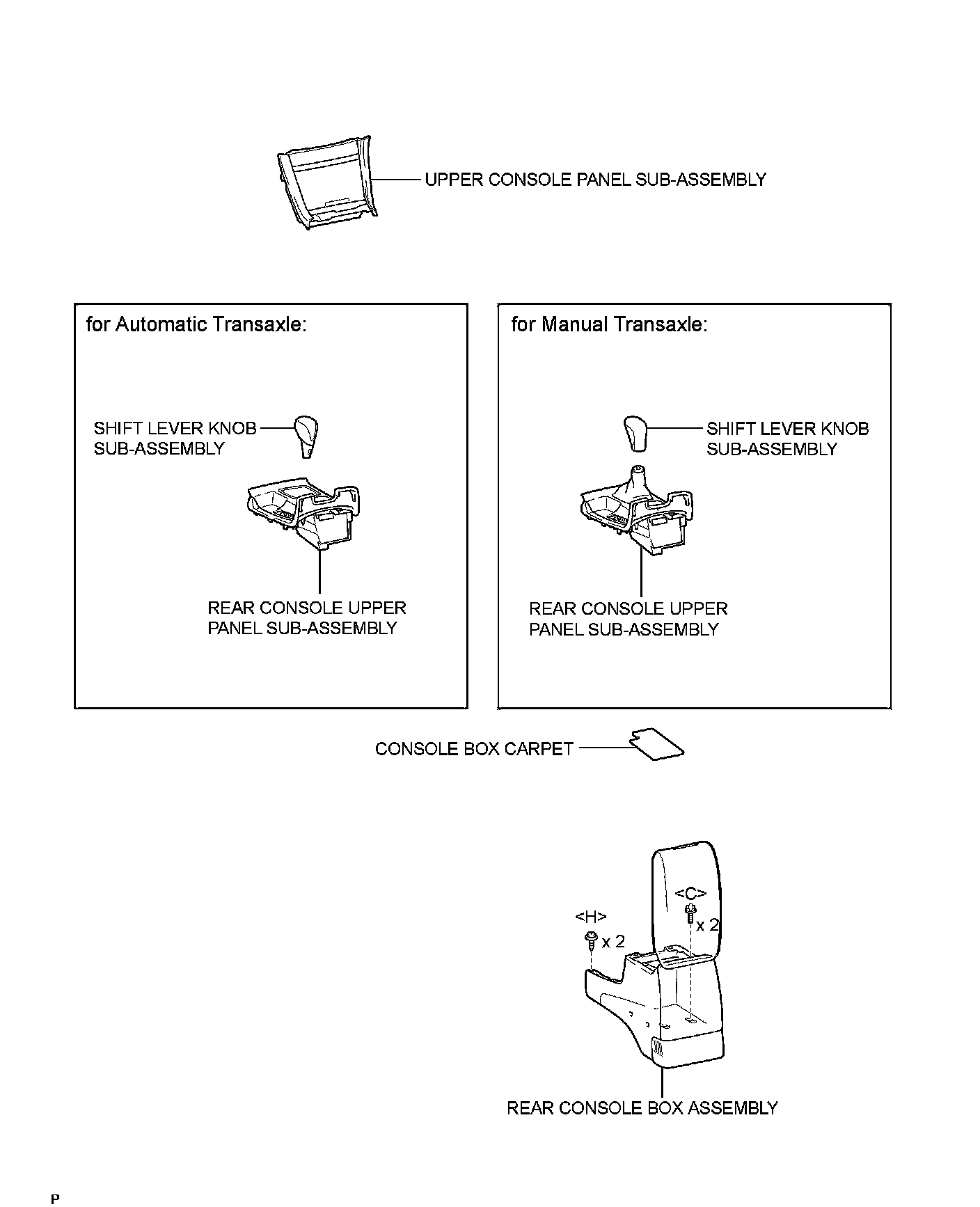

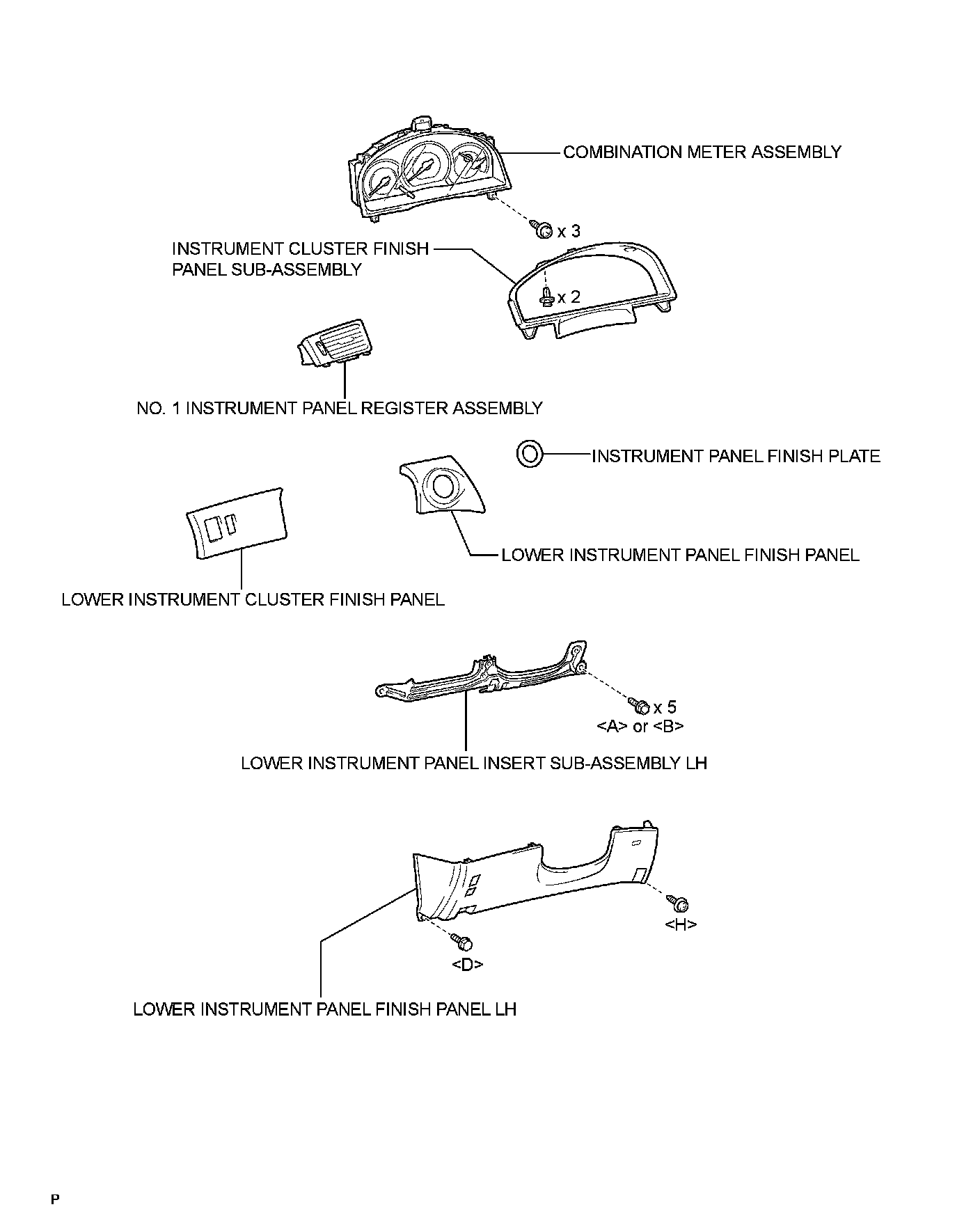

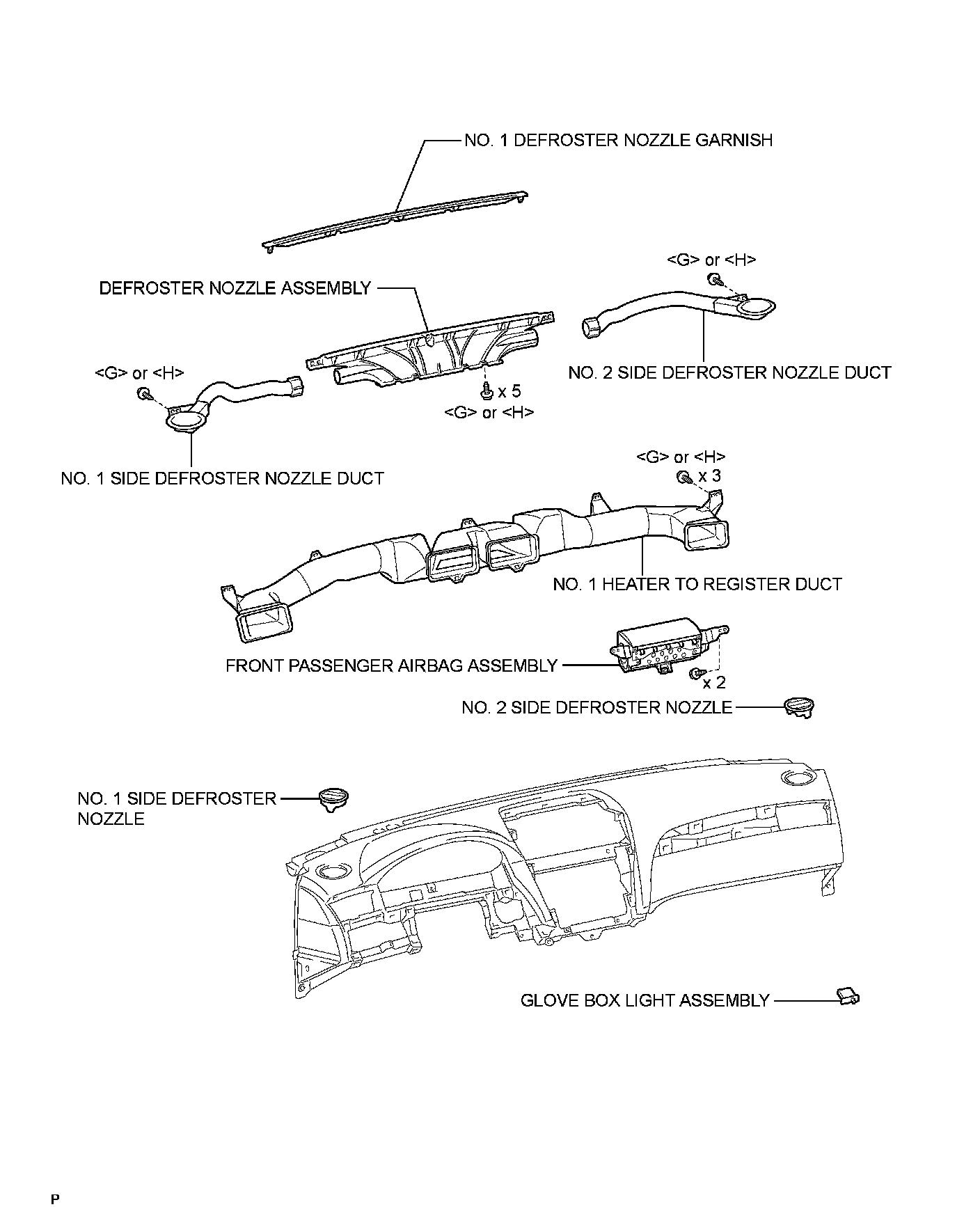

COMPONENTS

























INSTALLATION

1. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
(a) Temporarily install the instrument panel safety pad sub-assembly.
(b) Connect the connectors.

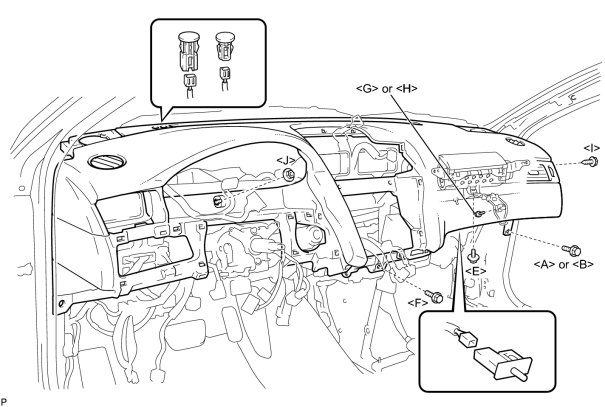

(c) Install the bolt [E] indicated in the illustration.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(d) Install the instrument panel safety pad sub-assembly with the bolts [A] or [B], [F], screws [I] and [G] or [H] and nut [J].





2. CONNECT PASSENGER AIRBAG CONNECTOR
3. INSTALL INSTRUMENT PANEL SAFETY PAD CAP
4. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
5. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY
6. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
7. INSTALL INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
8. INSTALL FRONT PILLAR GARNISH LH
9. INSTALL FRONT PILLAR GARNISH RH
10. INSTALL FRONT CONSOLE BOX
11. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL RH
12. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
13. INSTALL CENTER CLUSTER INTEGRATION PANEL ASSEMBLY (w/o Navigation System)
14. INSTALL CENTER CLUSTER INTEGRATION PANEL ASSEMBLY (w/ Navigation System)
15. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
16. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
17. INSTALL REAR CONSOLE BOX ASSEMBLY
18. INSTALL REAR CONSOLE UPPER PANEL SUB-ASSEMBLY (for Manual Transaxle)
19. INSTALL REAR CONSOLE UPPER PANEL SUB-ASSEMBLY (for Automatic Transaxle)
20. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
21. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)
22. INSTALL LOWER INSTRUMENT PANEL INSERT SUB-ASSEMBLY LH
23. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH
24. INSTALL COMBINATION METER ASSEMBLY
25. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
26. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
27. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL
28. INSTALL INSTRUMENT PANEL FINISH PLATE
29. INSTALL LOWER INSTRUMENT CLUSTER FINISH PANEL
30. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH (for Coupe)
31. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH (for Convertible)
32. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH (for Coupe)
33. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH (for Convertible)
34. INSTALL FRONT DOOR SCUFF PLATE RH (for Coupe)
35. INSTALL FRONT DOOR SCUFF PLATE RH (for Convertible)
36. INSTALL FRONT DOOR SCUFF PLATE LH (for Coupe)
37. INSTALL FRONT DOOR SCUFF PLATE LH (for Convertible)
38. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY (Installation)

39. INSTALL STEERING COLUMN COVER (Installation)

40. INSTALL LOWER STEERING COLUMN COVER (Installation)

41. ADJUST SPIRAL CABLE (Installation)

42. INSTALL STEERING WHEEL ASSEMBLY (Installation)

43. INSTALL STEERING PAD
44. INSTALL LOWER NO. 3 STEERING WHEEL COVER
45. INSTALL LOWER NO. 2 STEERING WHEEL COVER
46. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
47. PERFORM INITIALIZATION

NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal (Repair Instruction - Initialization).

48. INSPECT SRS WARNING LIGHT
(Diagnosis System)
