Air Conditioning (Manual A/C)

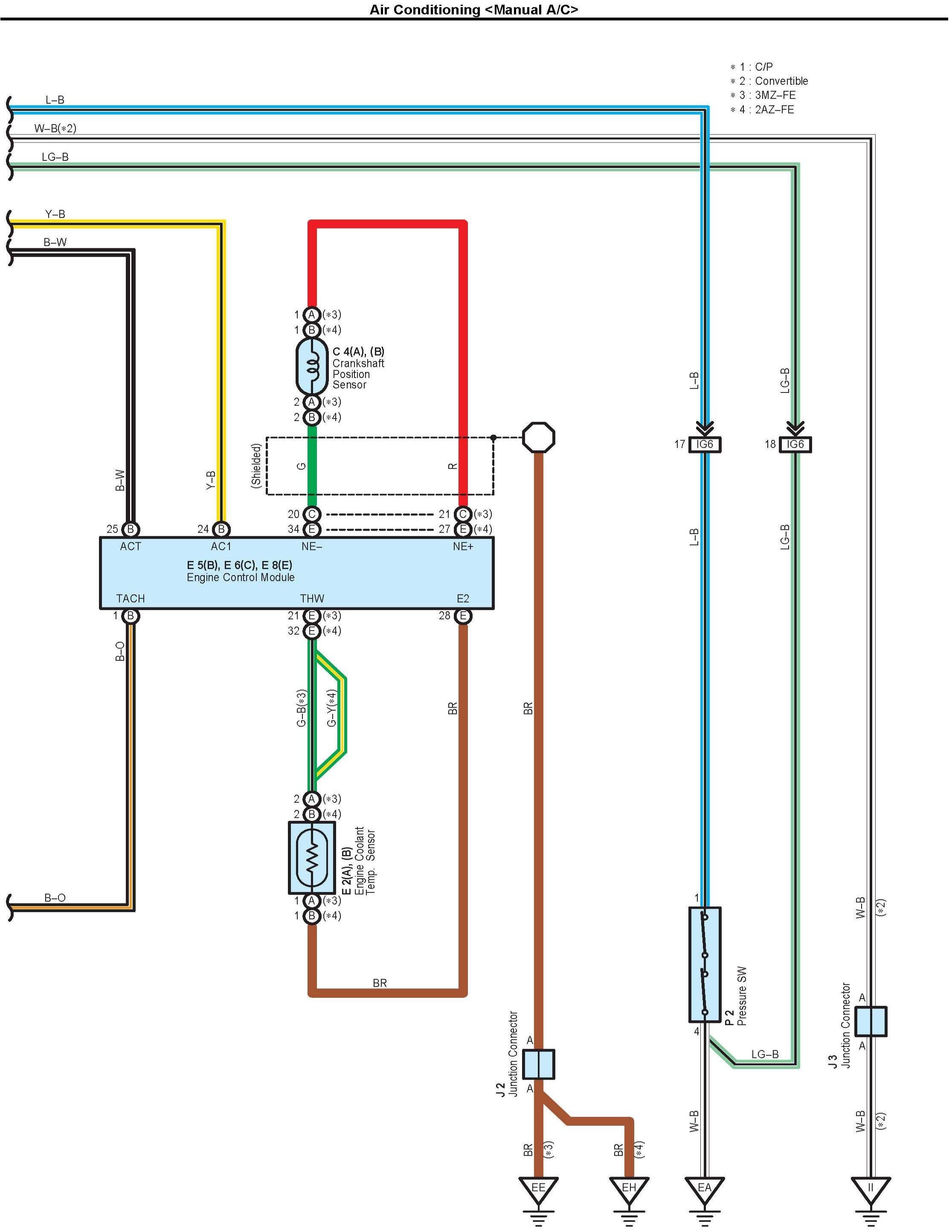

Air Conditioning (Manual A/C) Part 1:

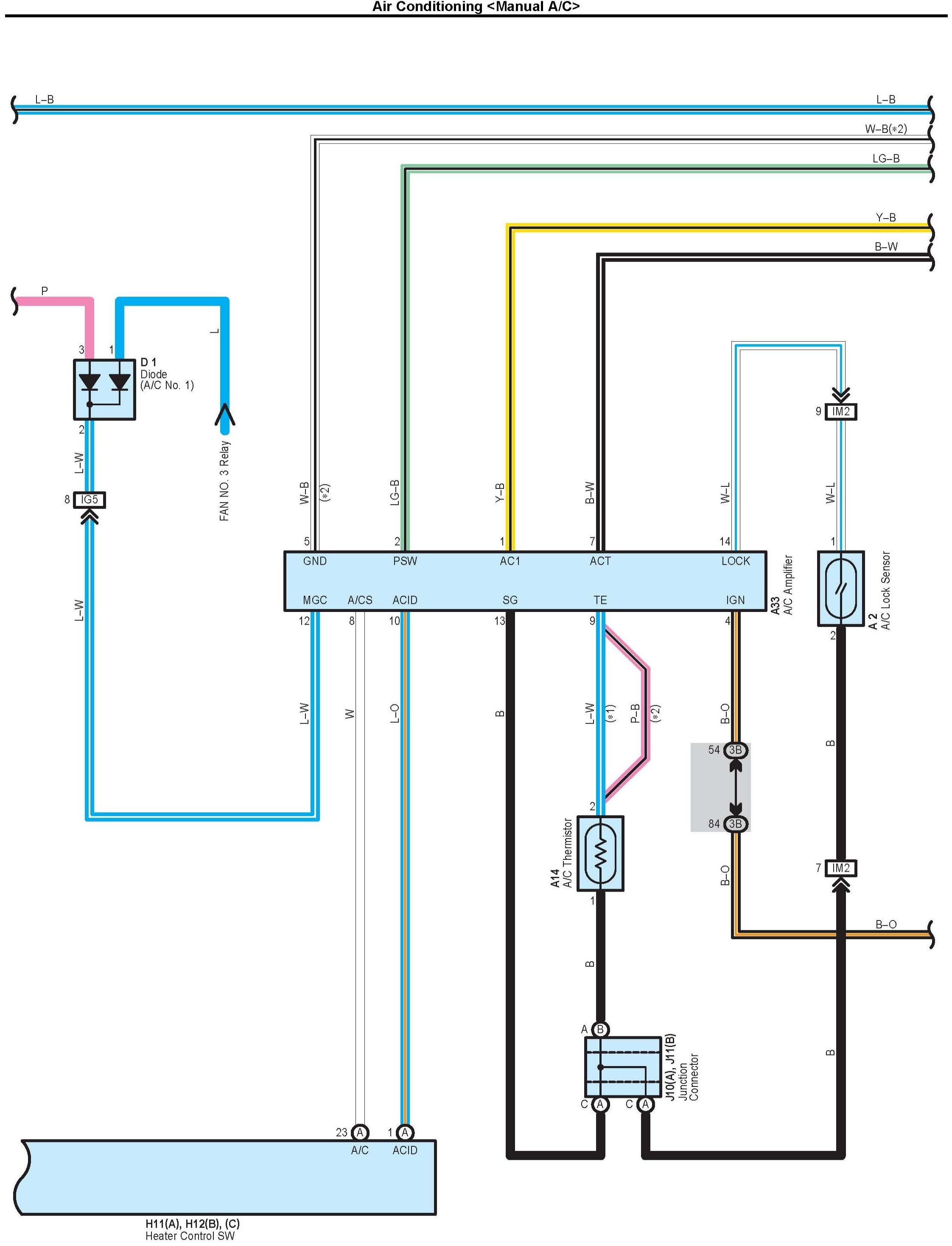

Air Conditioning (Manual A/C) Part 2:

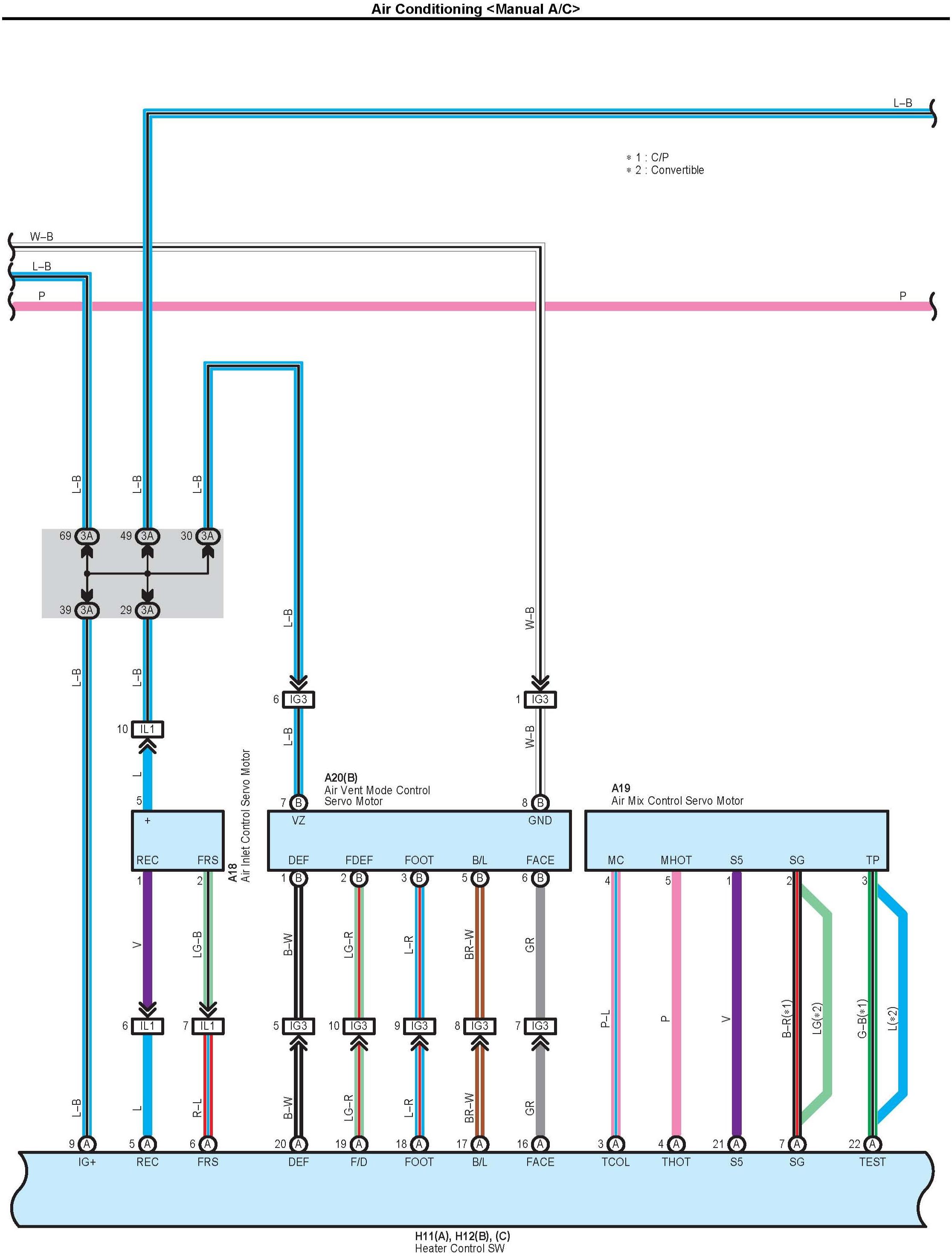

Air Conditioning (Manual A/C) Part 3:

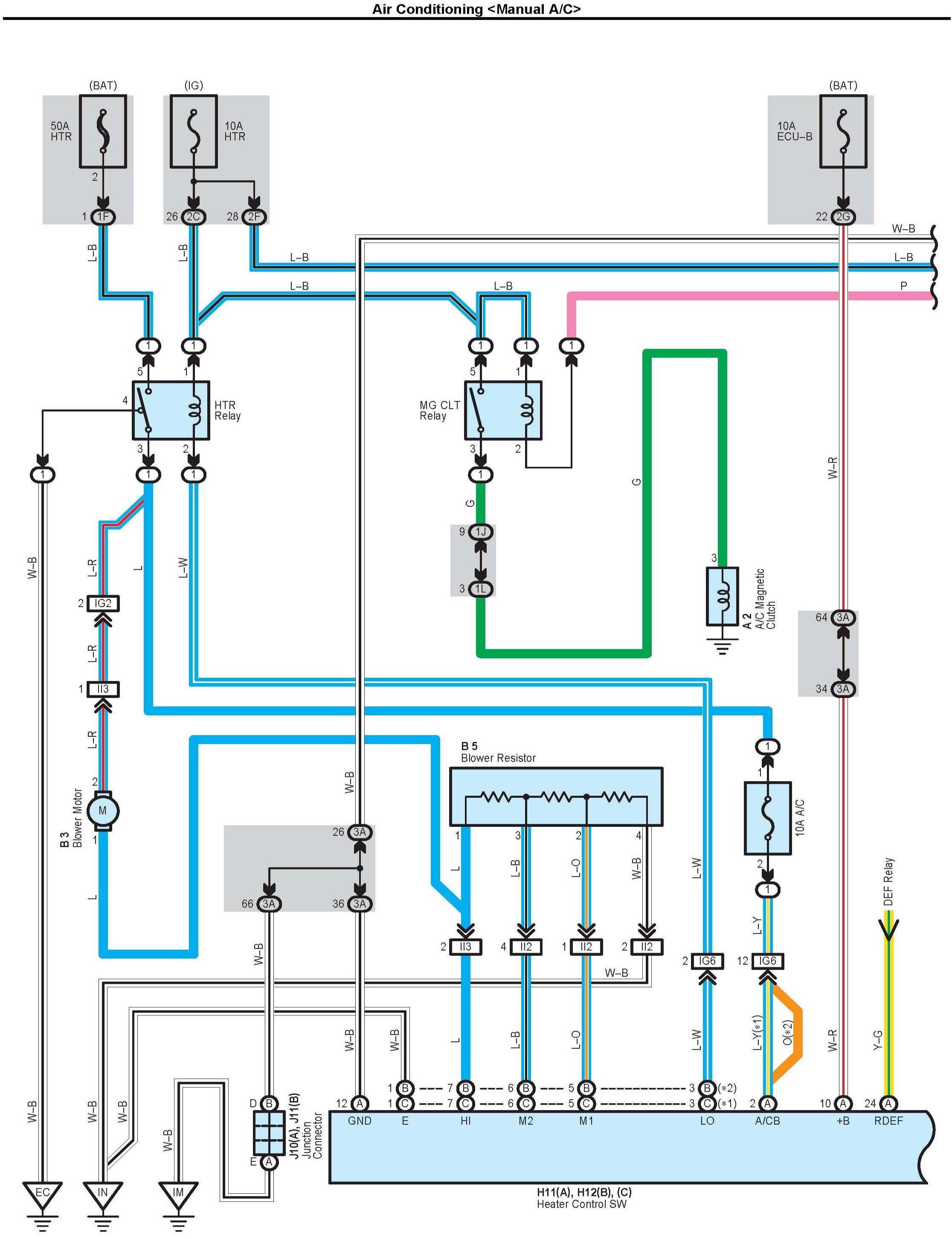

Air Conditioning (Manual A/C) Part 4:

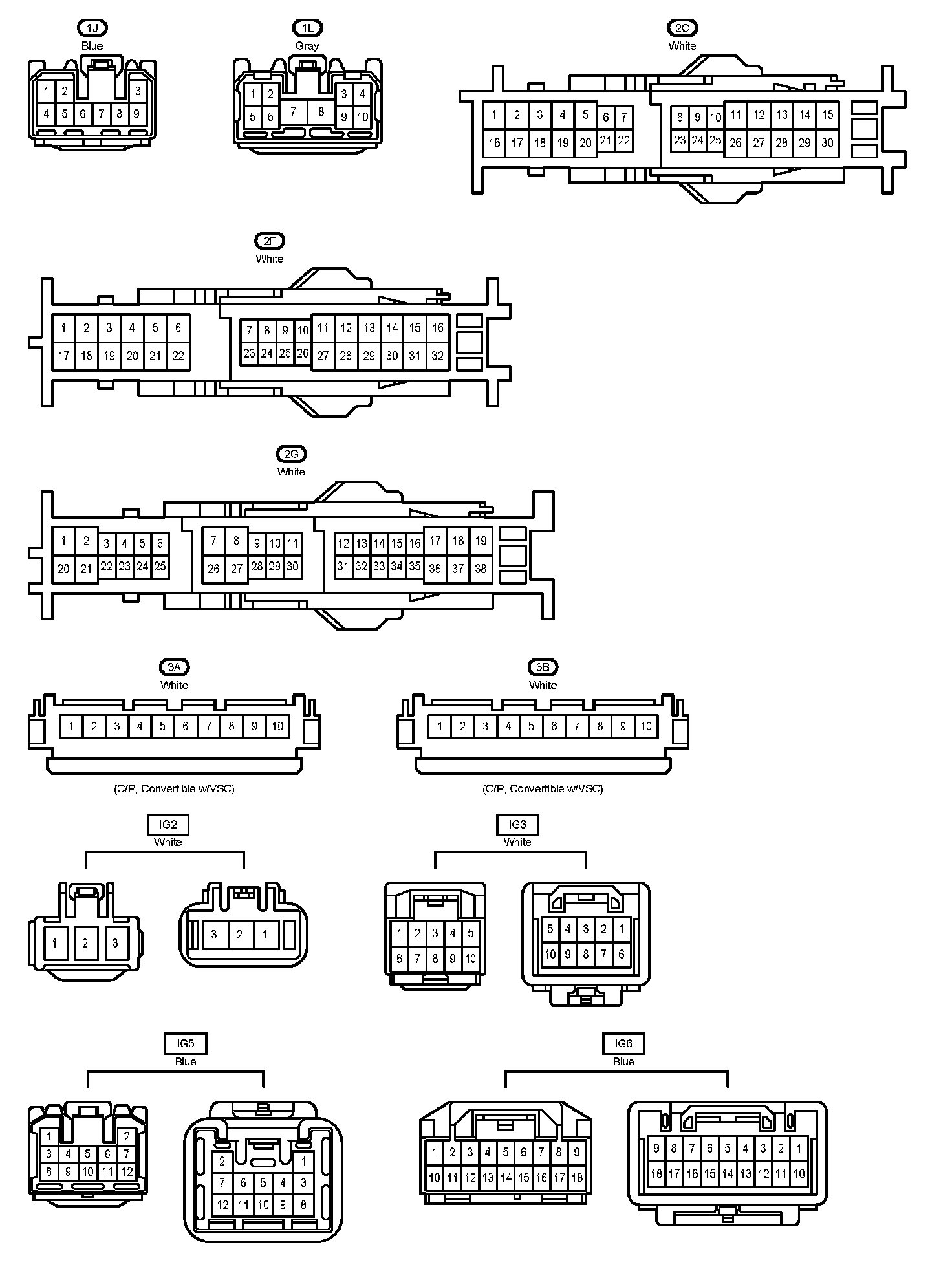

Connector Pin Outs Part 1:

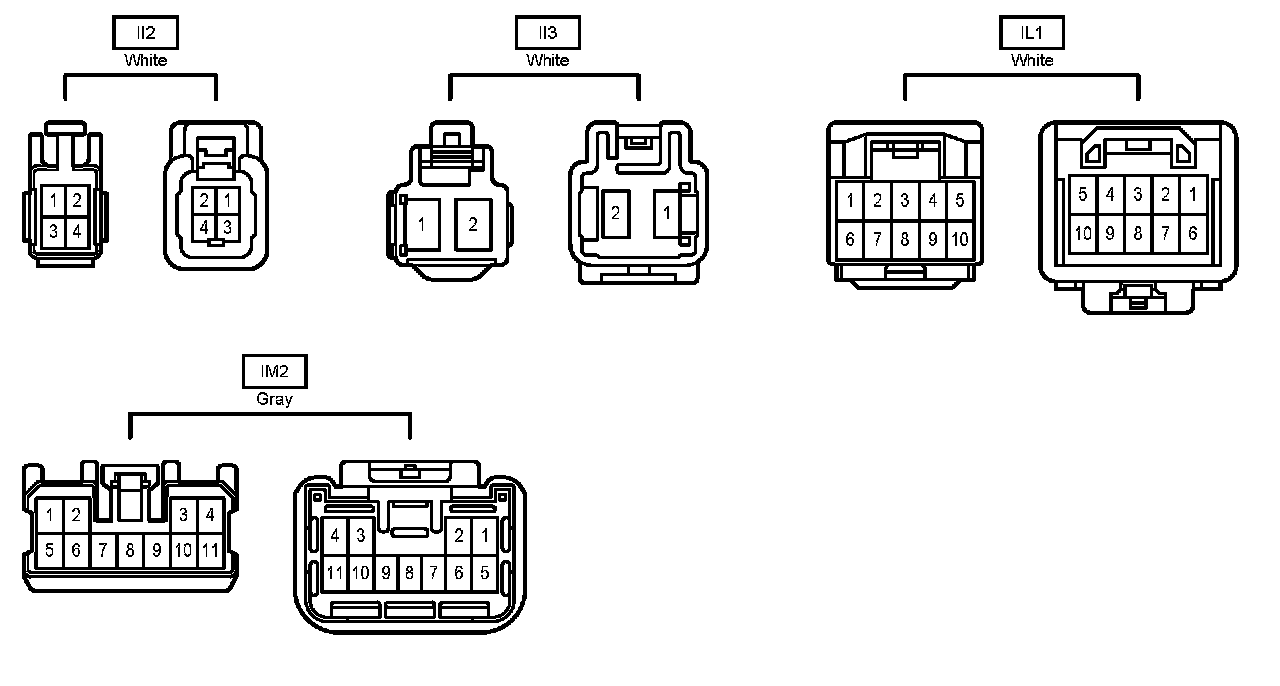

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
