Electrical Diagrams

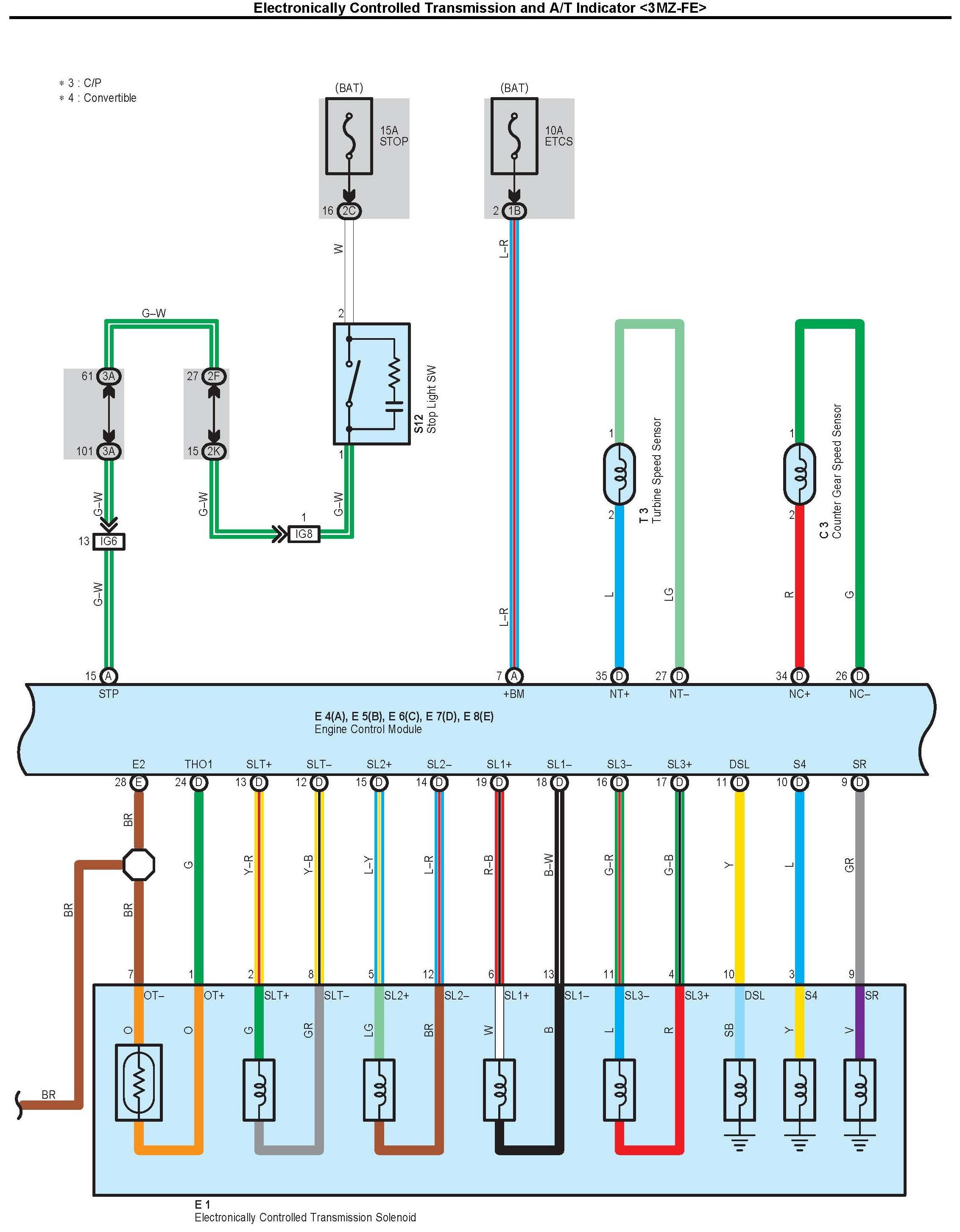

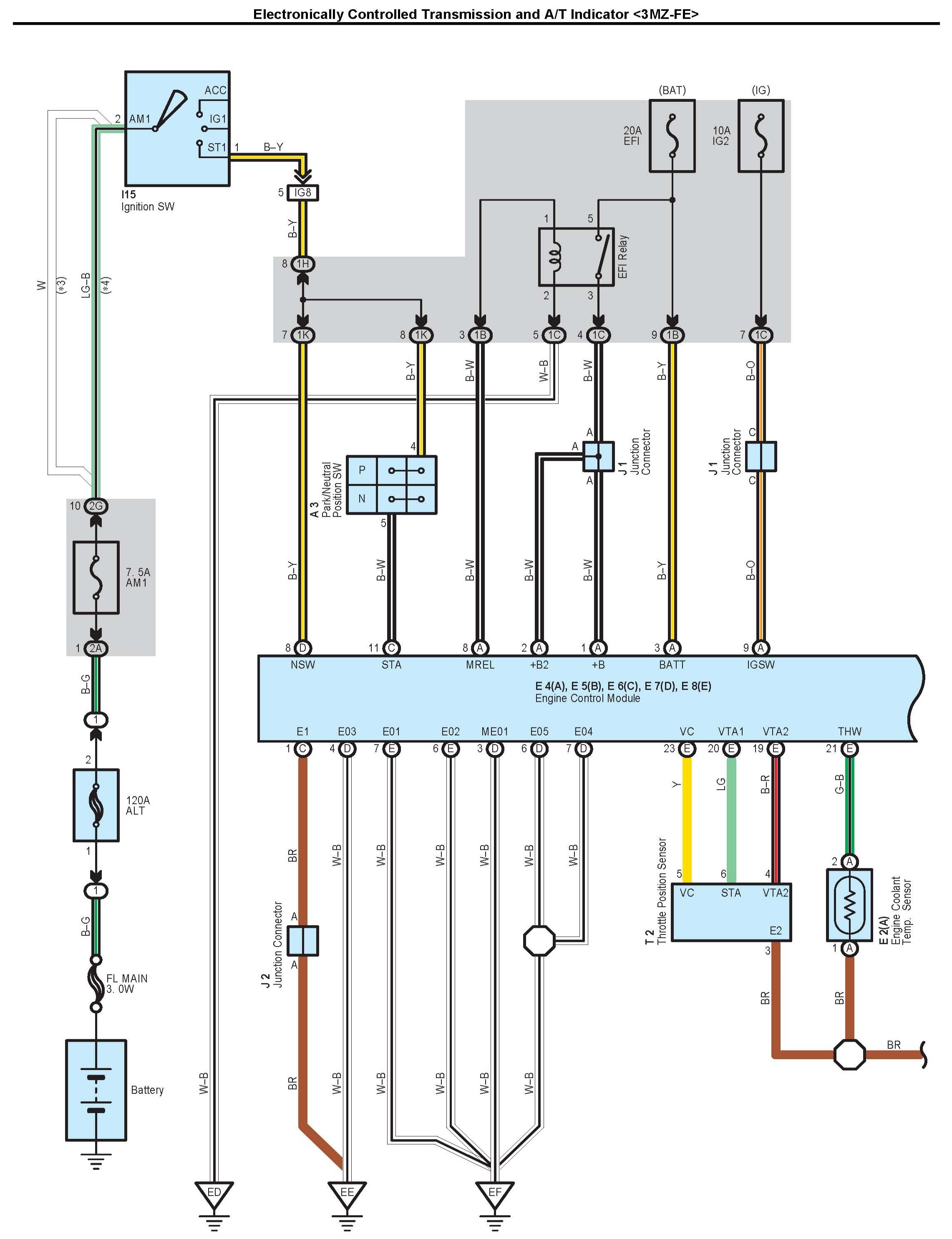

Electrically Controlled Transmission And A/T Indicator Part 1:

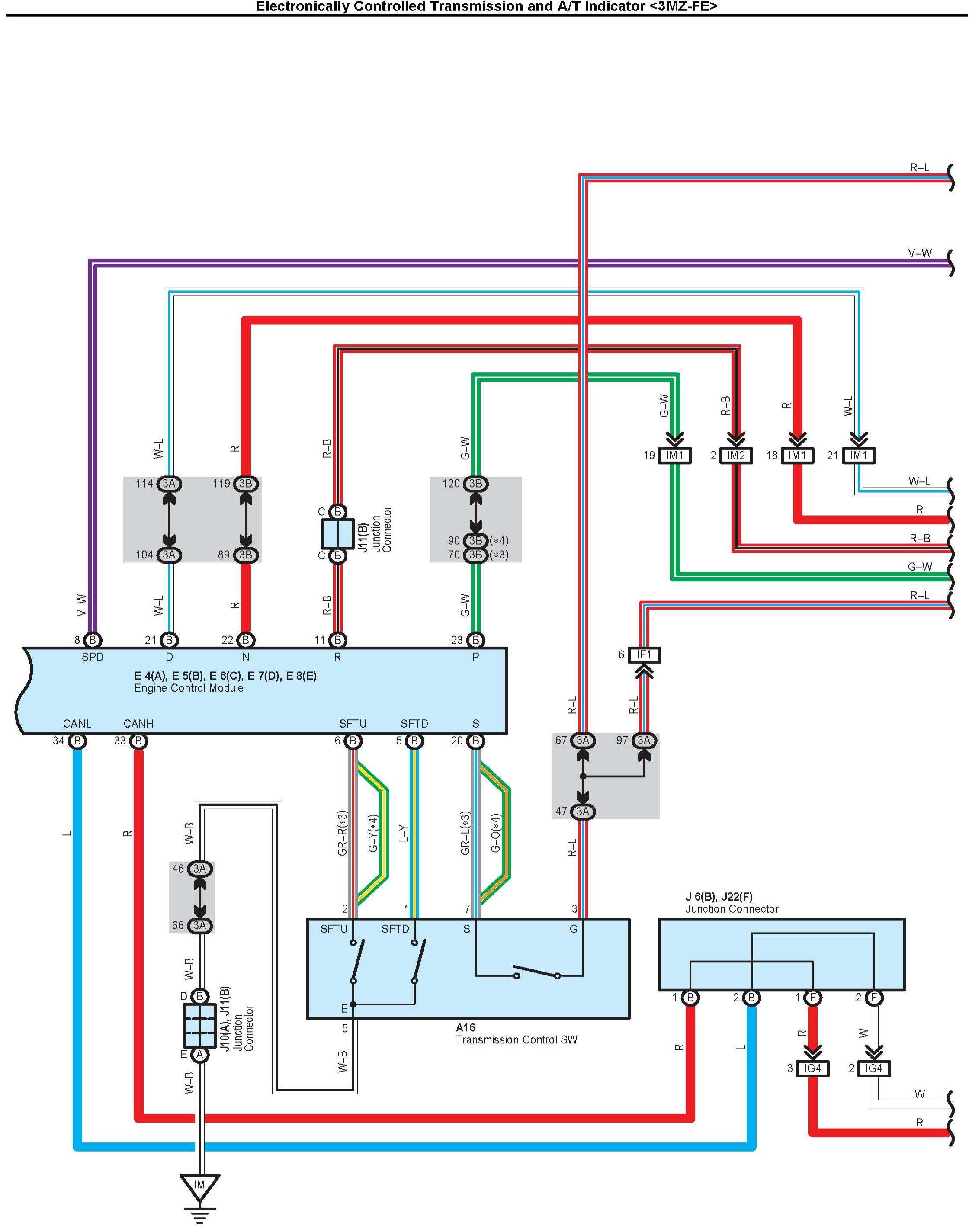

Electrically Controlled Transmission And A/T Indicator Part 2:

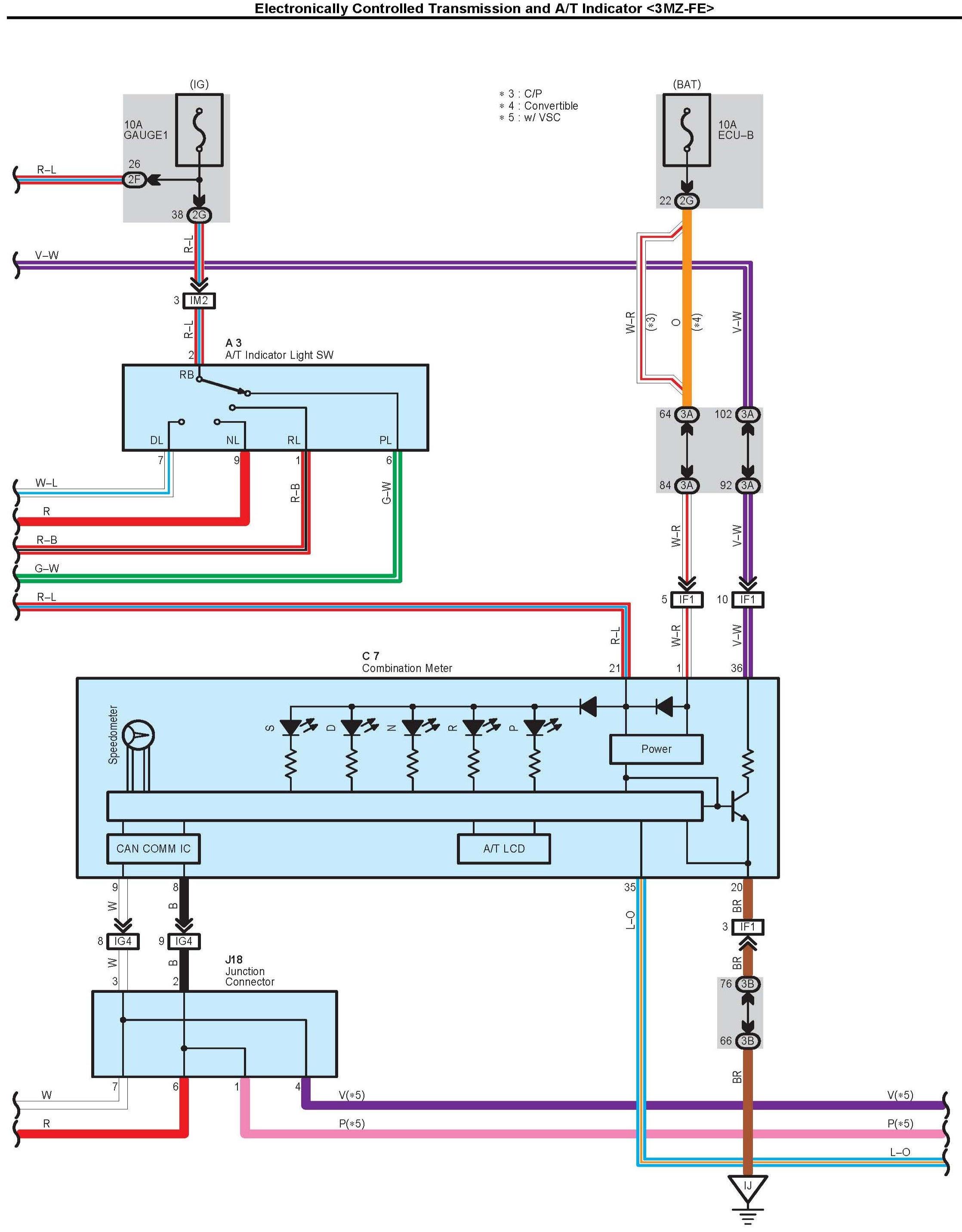

Electrically Controlled Transmission And A/T Indicator Part 3:

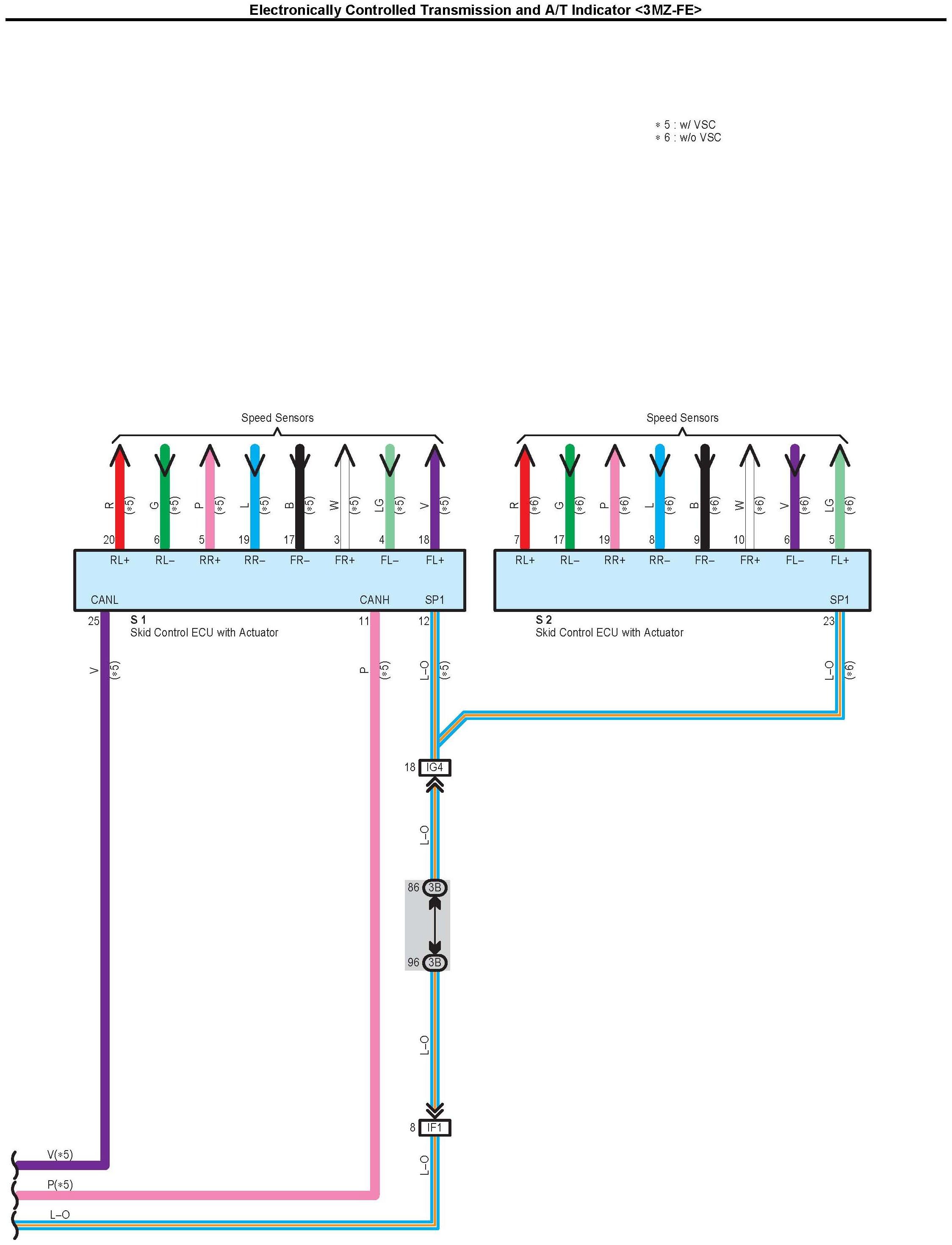

Electrically Controlled Transmission And A/T Indicator Part 4:

Electrically Controlled Transmission And A/T Indicator Part 5:

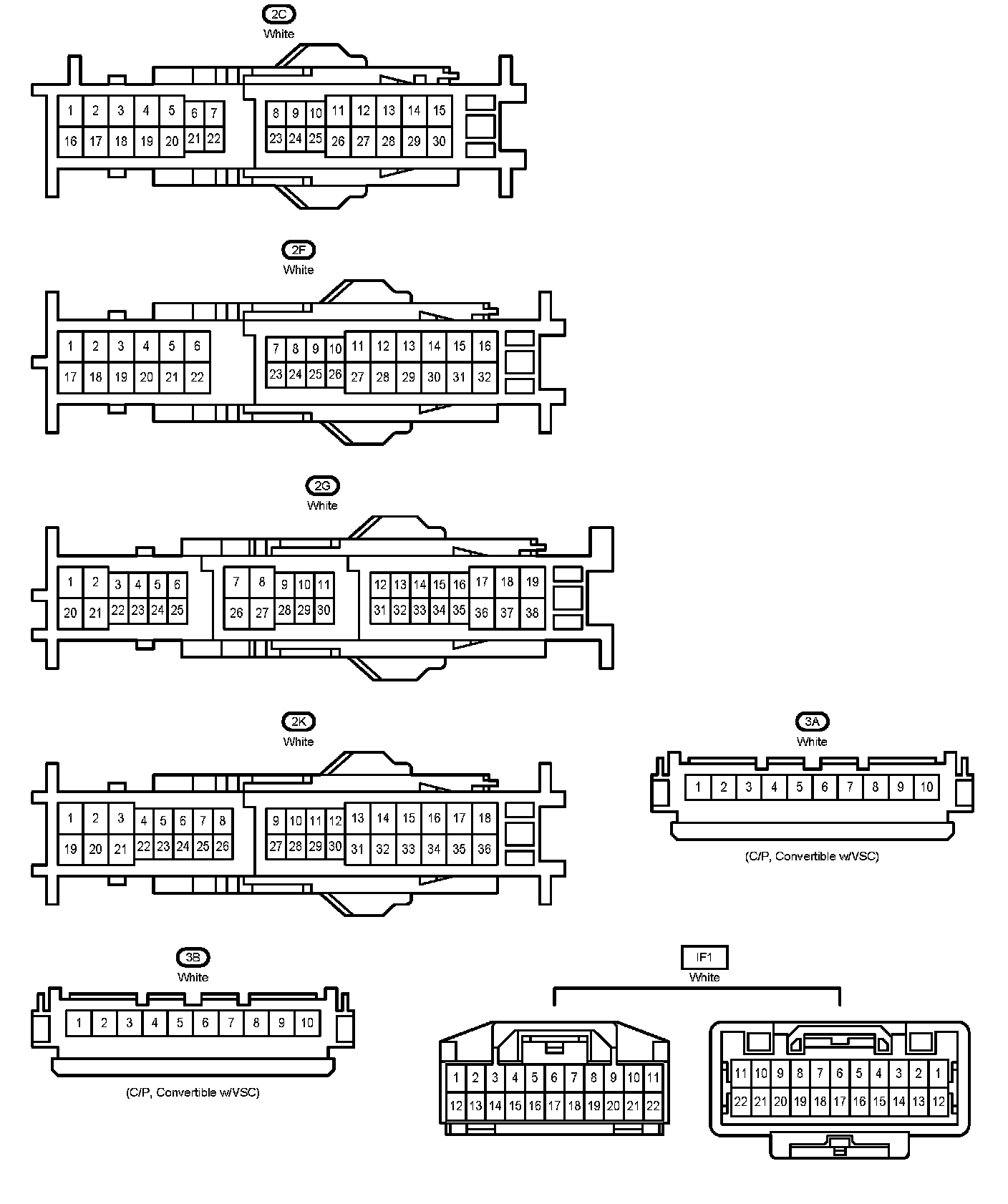

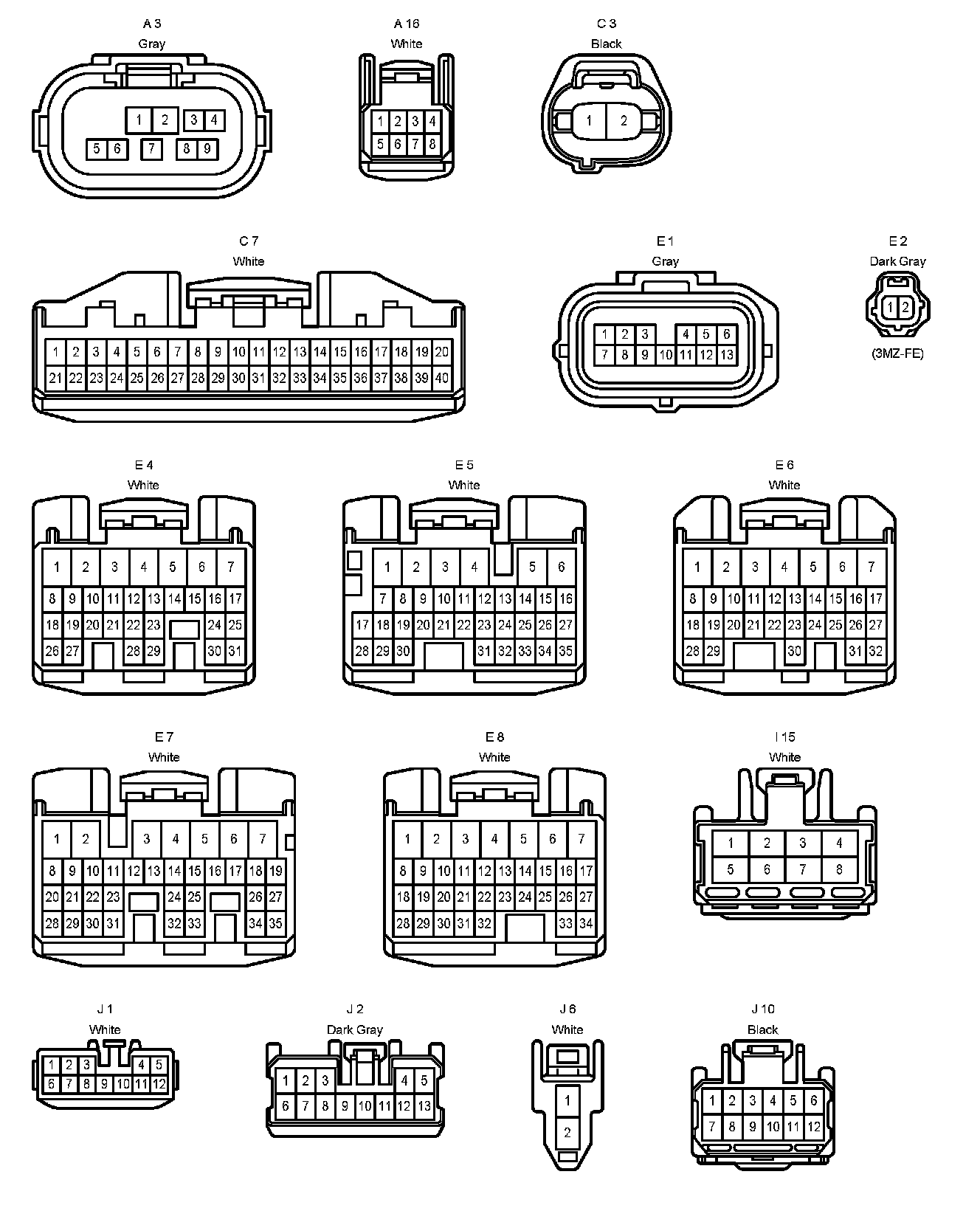

Connector Pin Outs Part 1:

Connector Pin Outs Part 2:

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
