Fluid Pan, A/T

AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

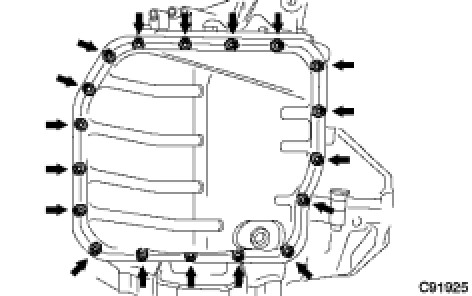

Using a new gasket, install the oil pan with the 18 bolts to the transaxle case.

Torque 7.8 Nm (80 kgf-cm, 69 in-lbf)

NOTE: Since the bolts should be seal bolts, apply seal packing to the bolts and tighten them within 10 minutes of application.
