Installation








EXTERIOR: TAIL GATE PROTECTOR:

INSTALLATION

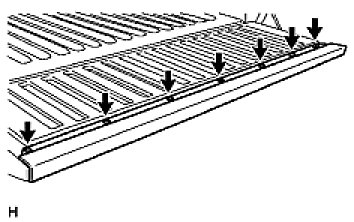

1. INSTALL TAIL GATE PROTECTOR





(a) Engage the 10 claws and install the tail gate protector.





(b) Using "Torx" socket wrench T30, tighten the 7 screws.
