Frame Wire

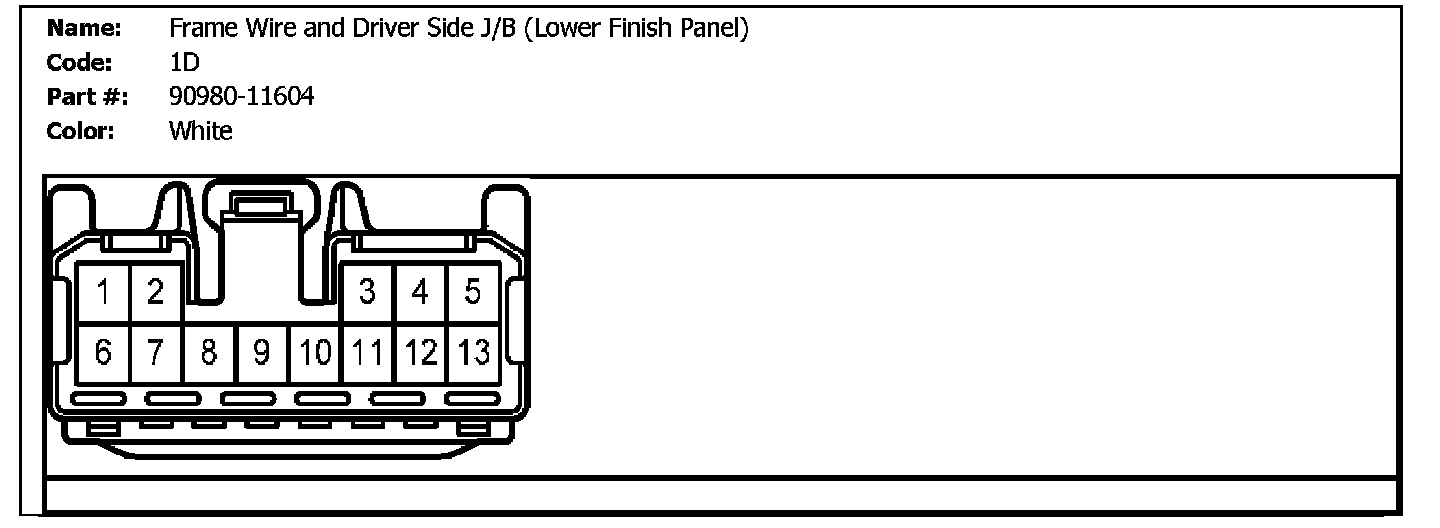

1D (Frame Wire and Driver Side J/B (Lower Side Panel)):

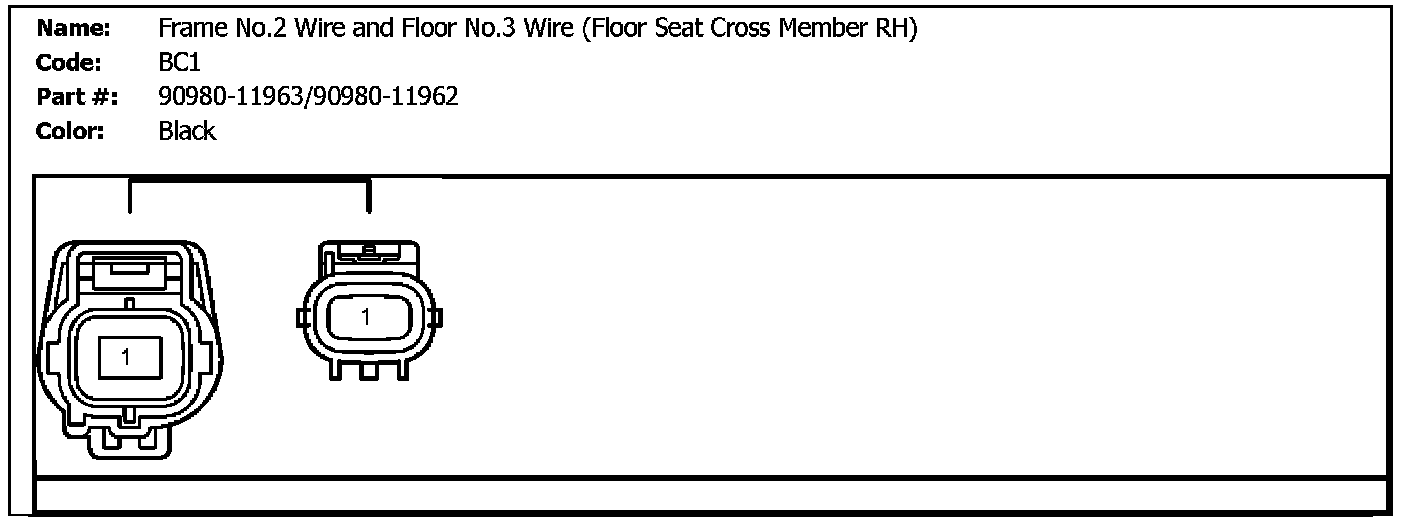

BC1 (Frame No.2 Wire and Floor No.3 Wire (Floor Seat Cross Member RH)):

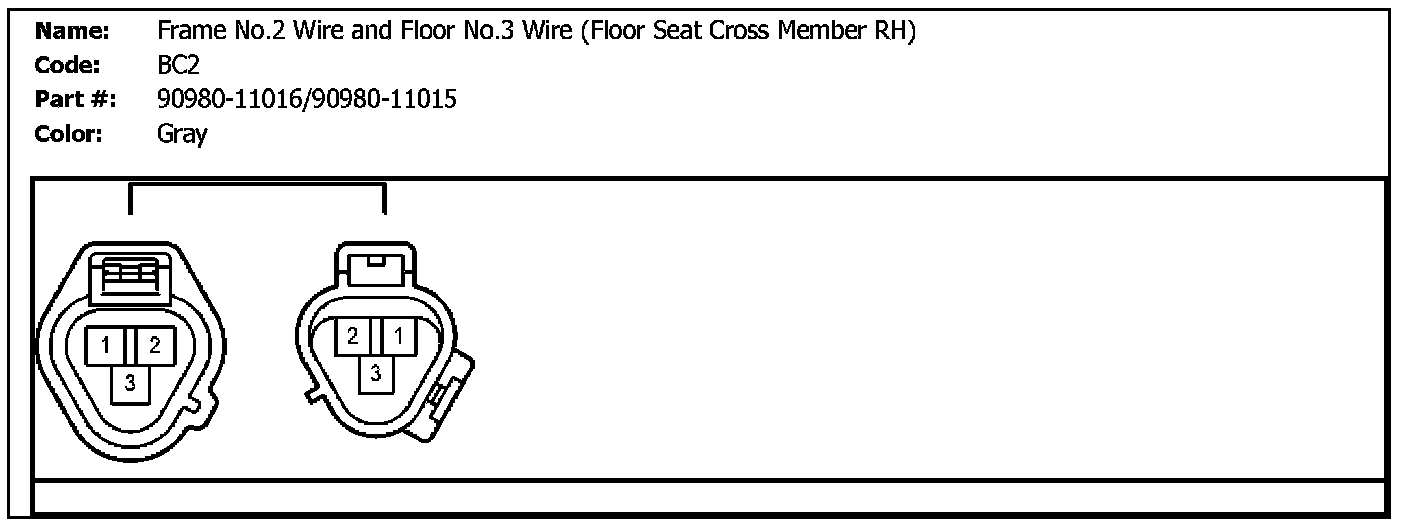

BC2 (Frame No.2 Wire and Floor No.3 Wire (Floor Seat Cross Member RH)):

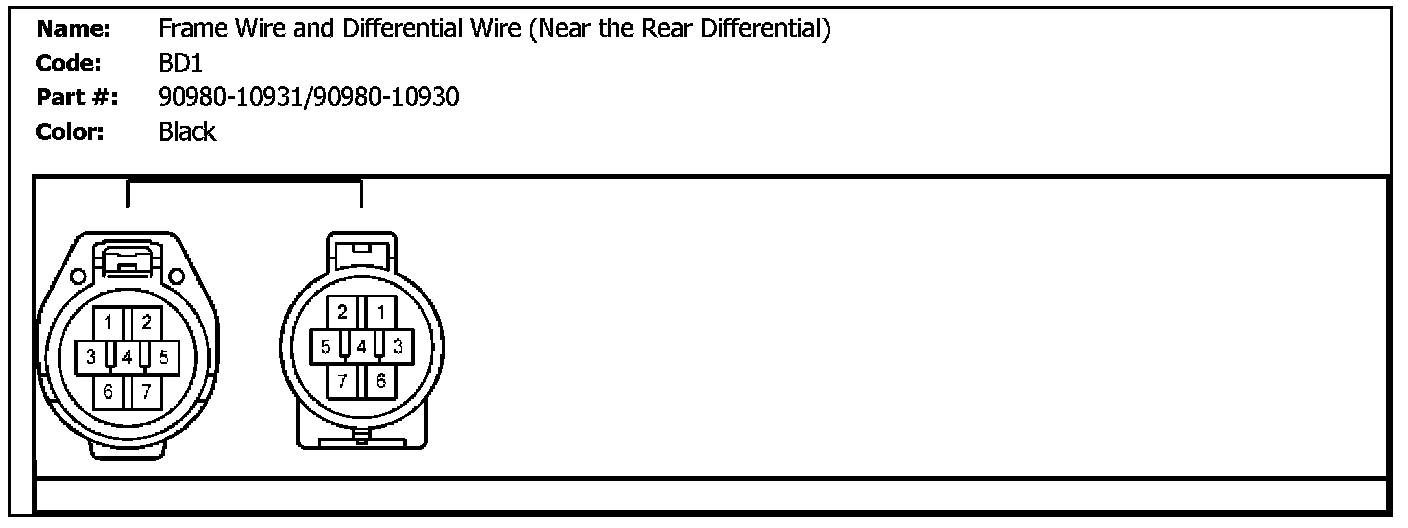

BD1 (frame Wire and Differential Wire (Near the Rear Differential)):

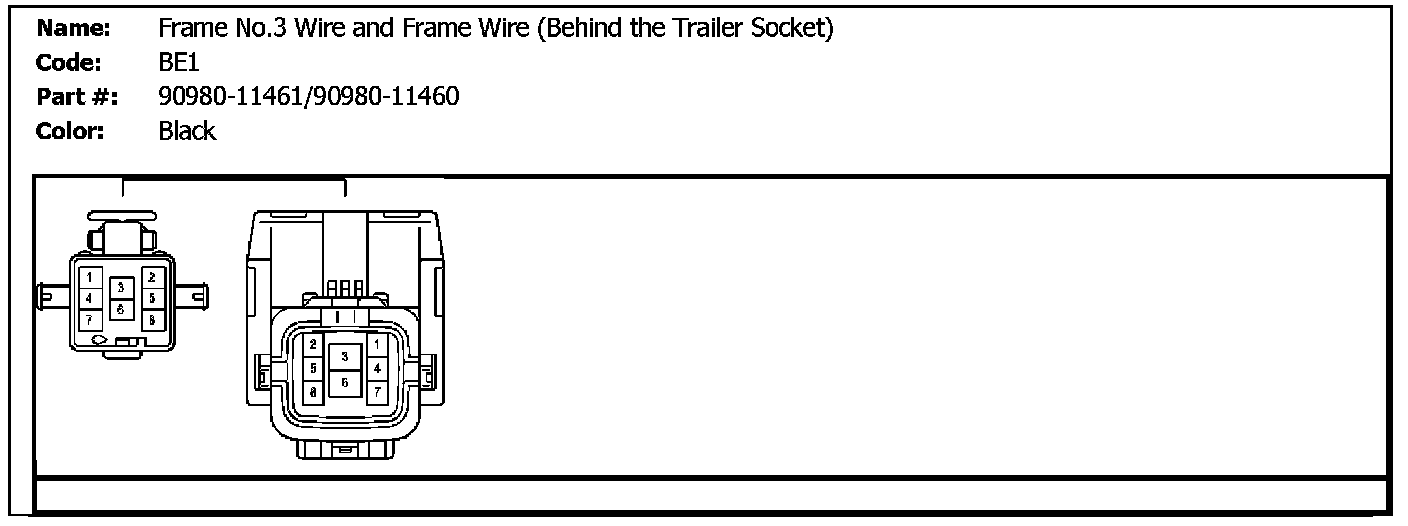

BE1 (Frame No.3 Wire and Frame Wire (Behind the Trailer Socket)):

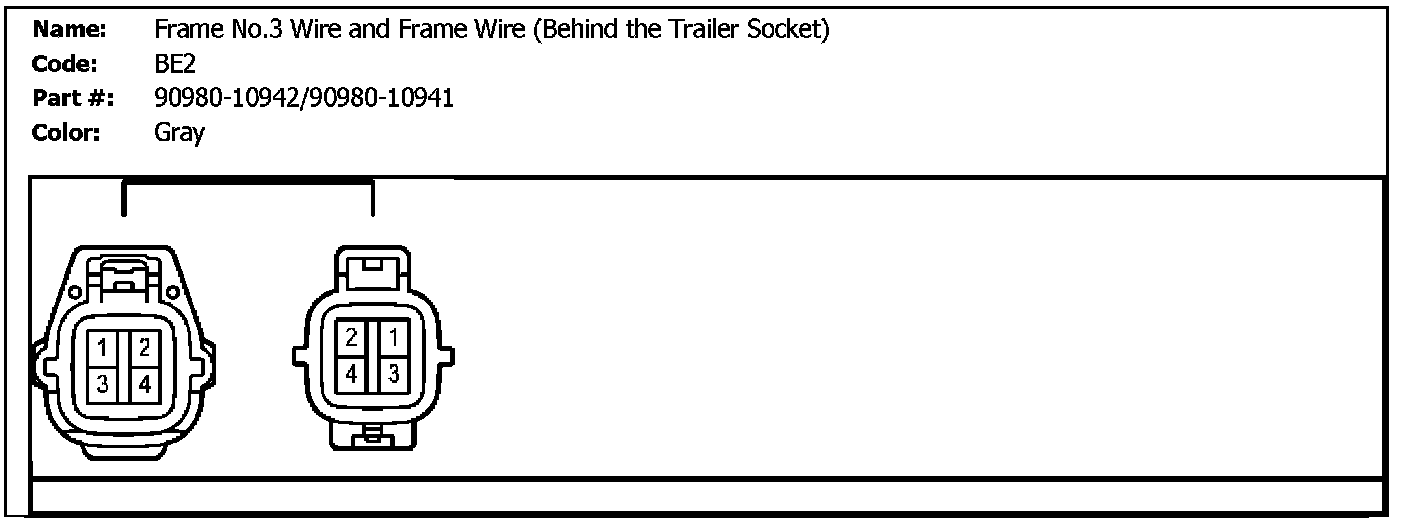

BE2 (Frame No.3 Wire and Frame Wire (Behind the Trailer Socket)):

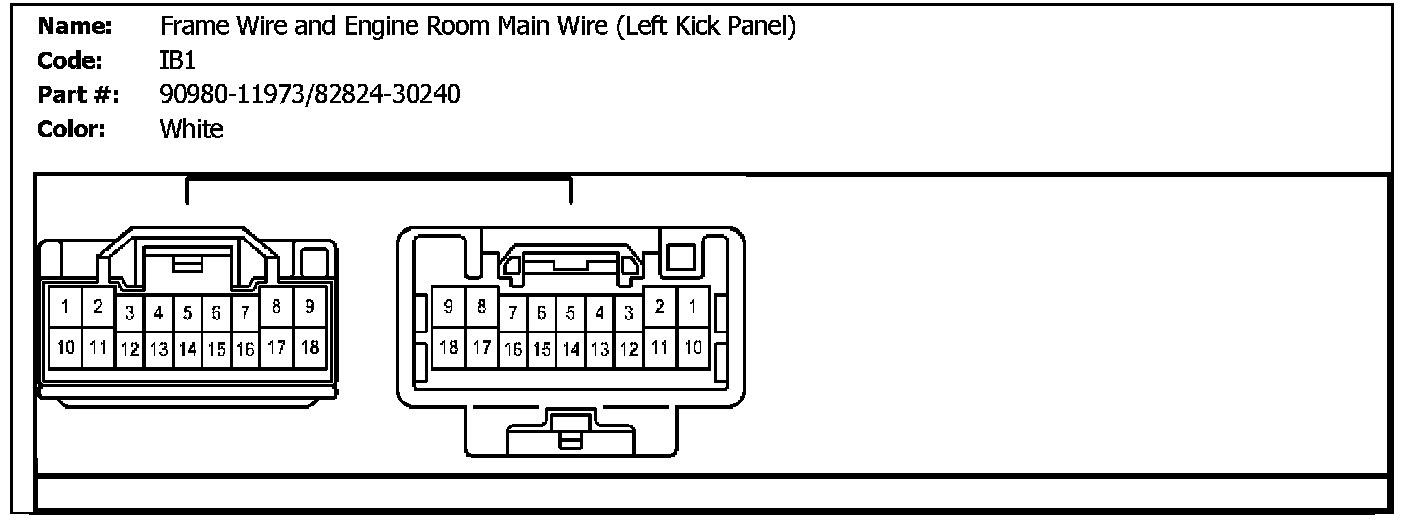

IB1 (Frame Wire and Engine Room Main Wire (Left Kick Panel)):

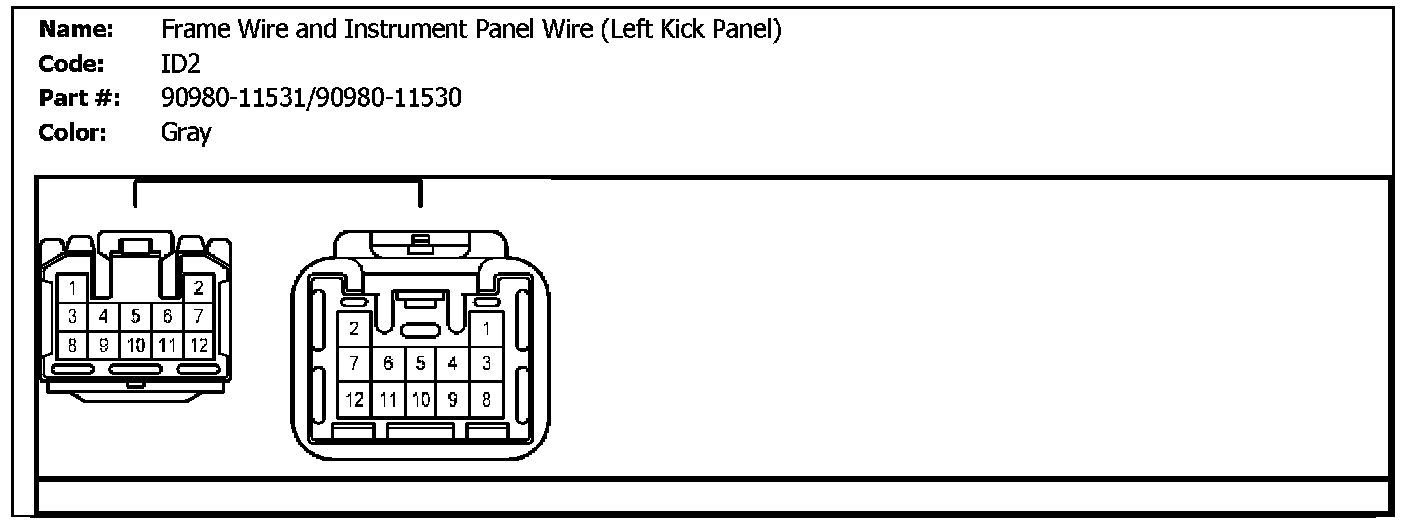

ID2 (Frame Wire Wire and Instrument Panel Wire (Left Kick Panel)):
