Home >> Toyota >> 2008 >> Tacoma PreRunner L4-2.7L (2TR-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Temperature Sensor/Switch, A/T

Transmission Temperature Sensor/Switch, A/T

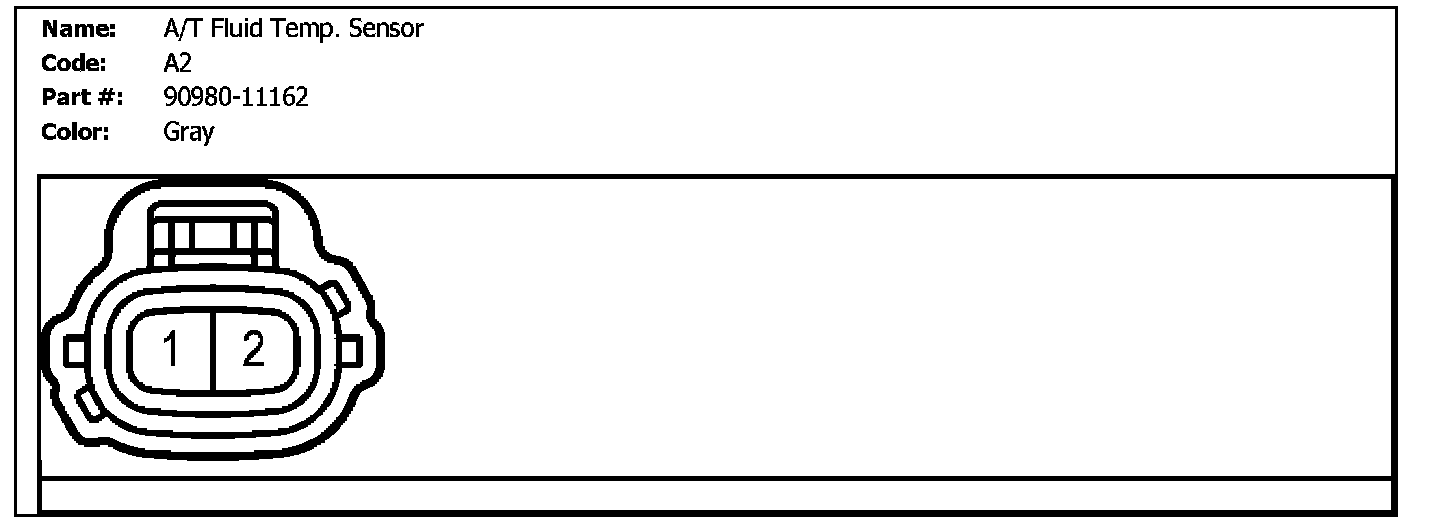

A2 (A/T Fluid Temp. Sensor):
