Connector Locations

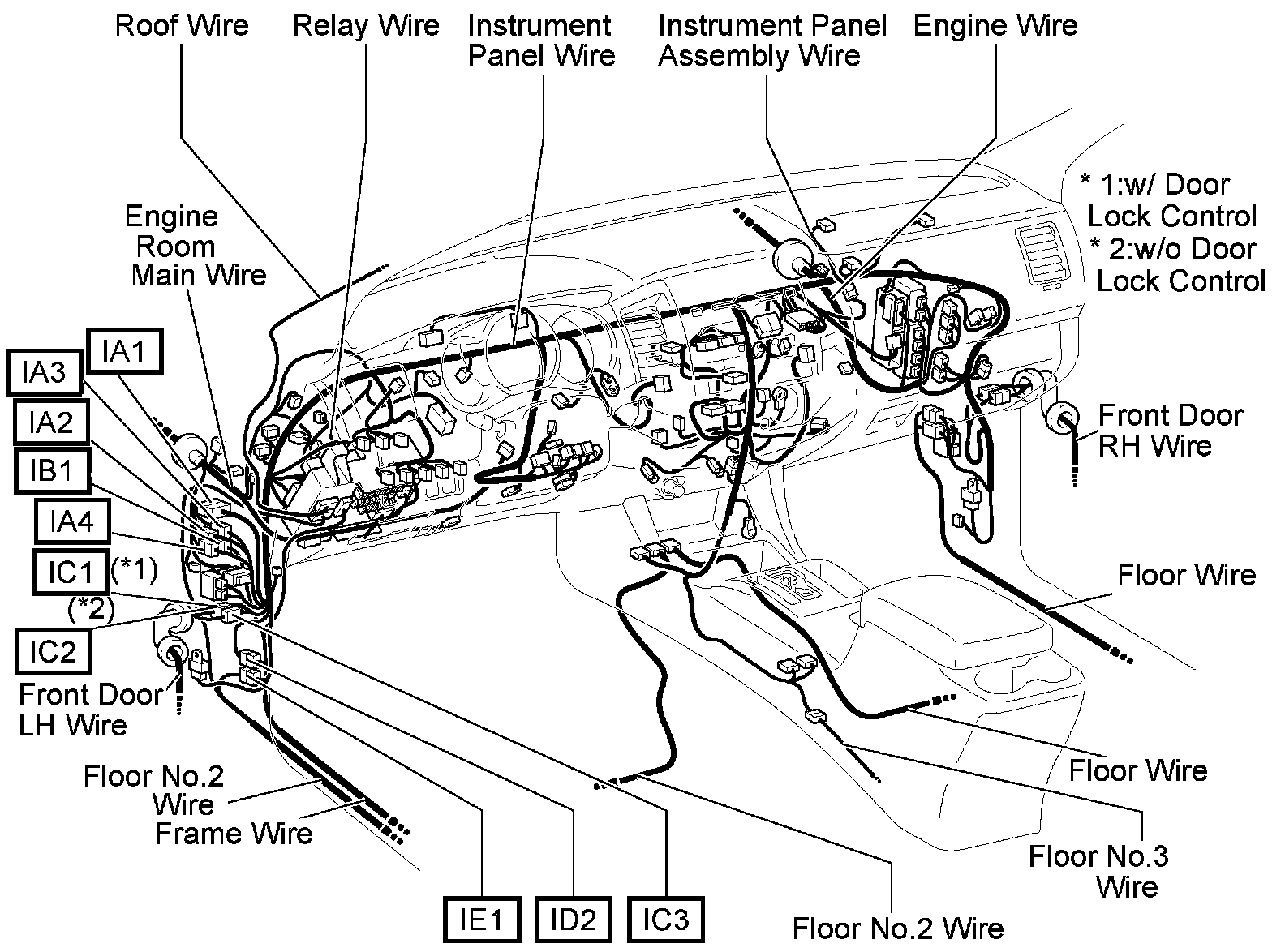

IA1 - IE1:

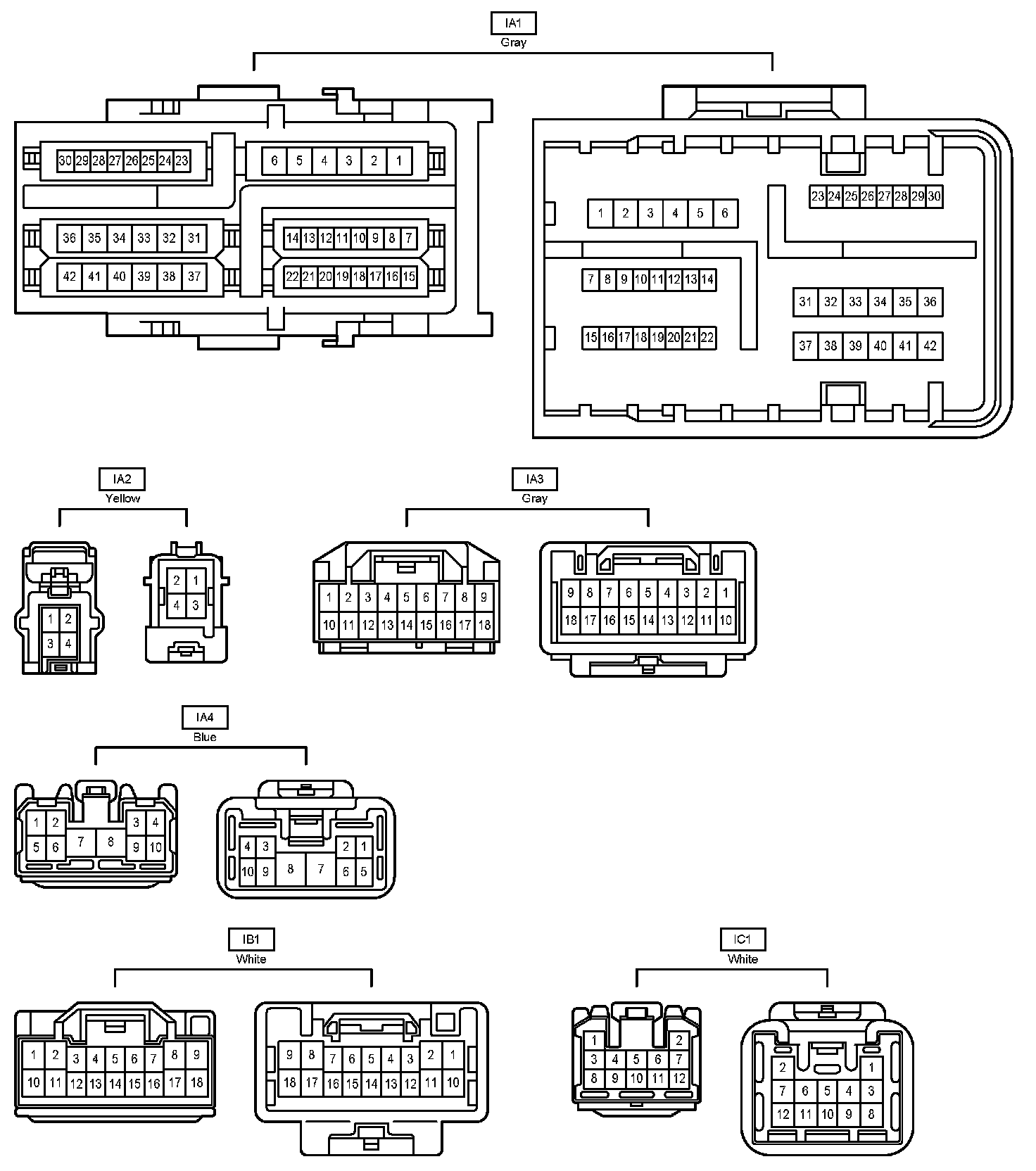

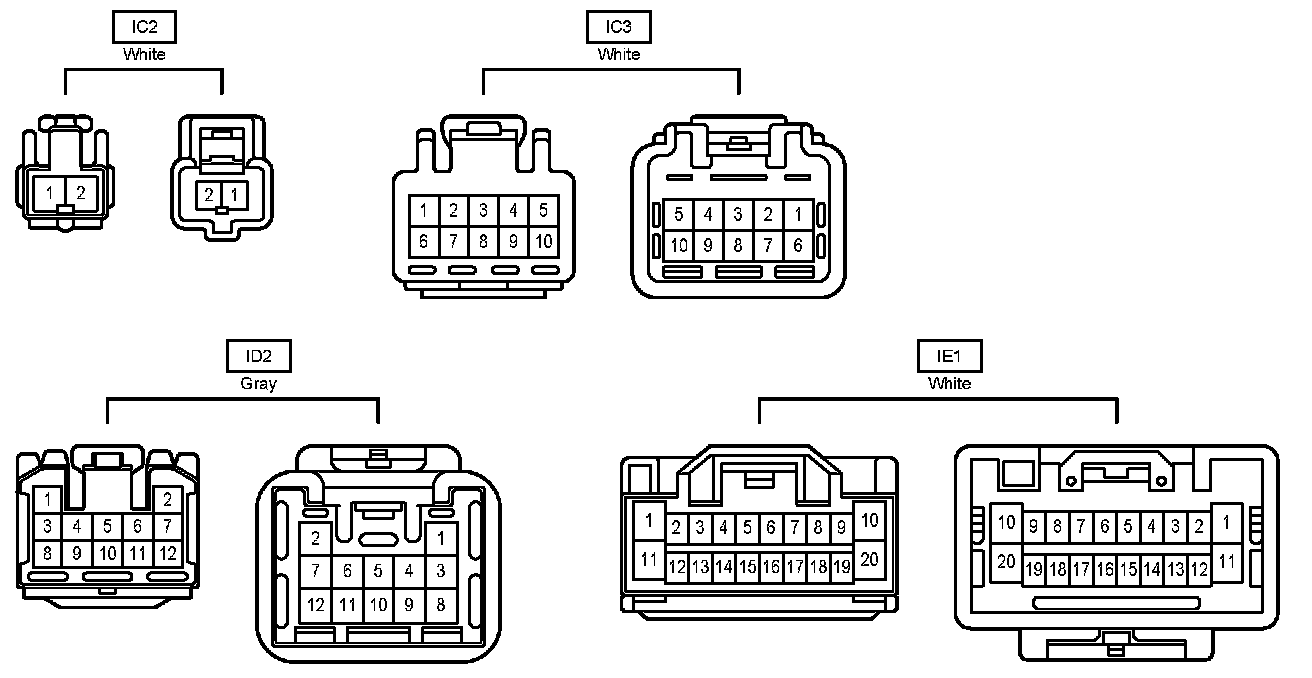

Connector Views:



Connector Views:

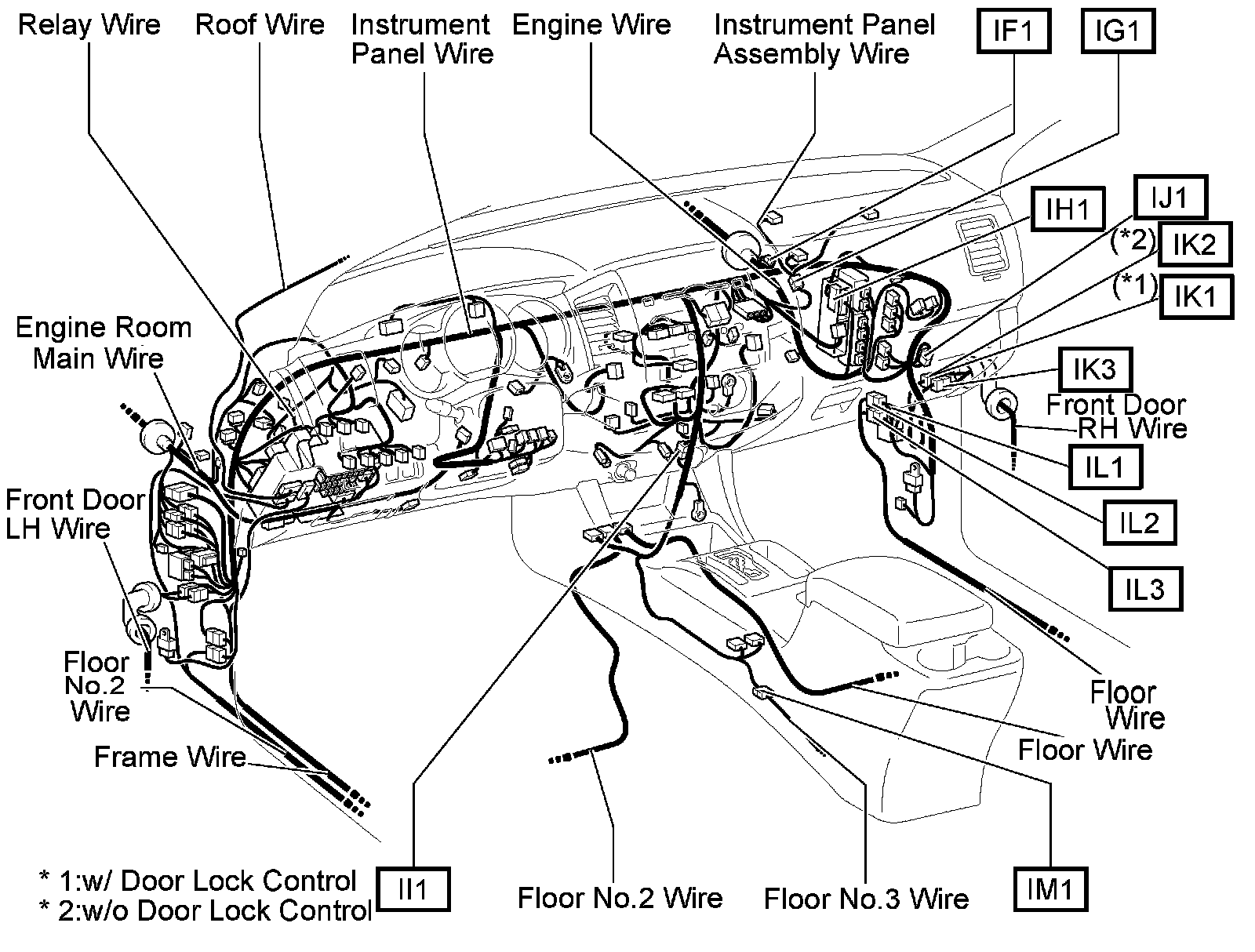

IF1 - IM1:

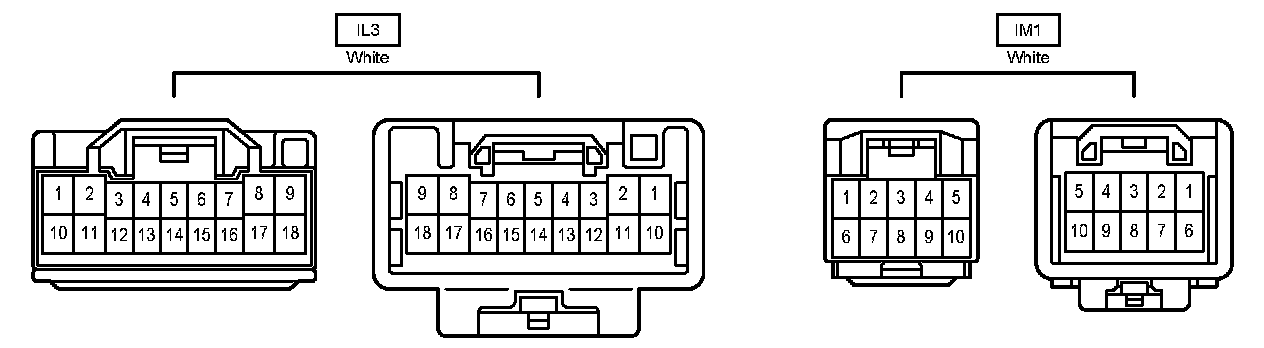

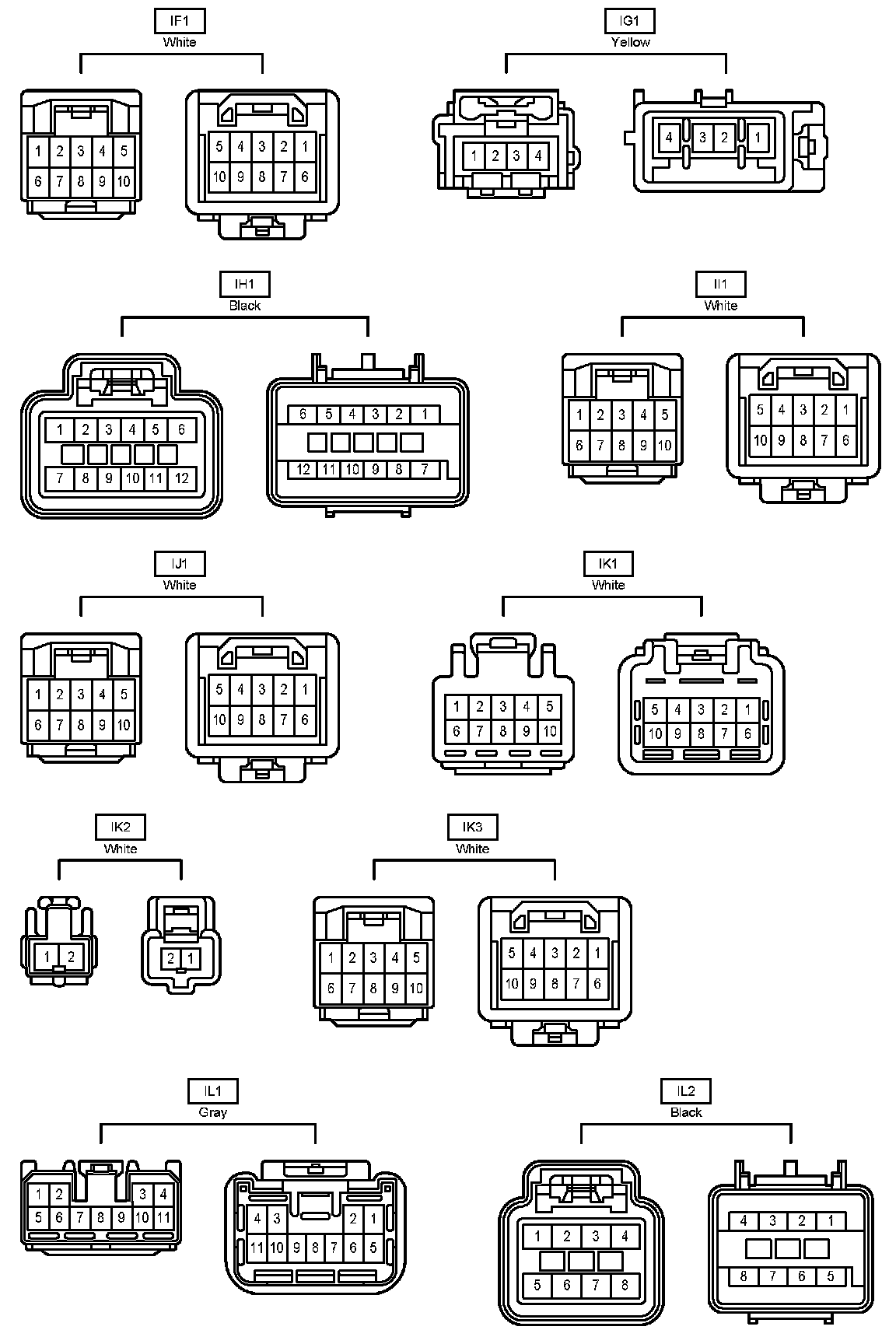

Connector Views:



Connector Views:

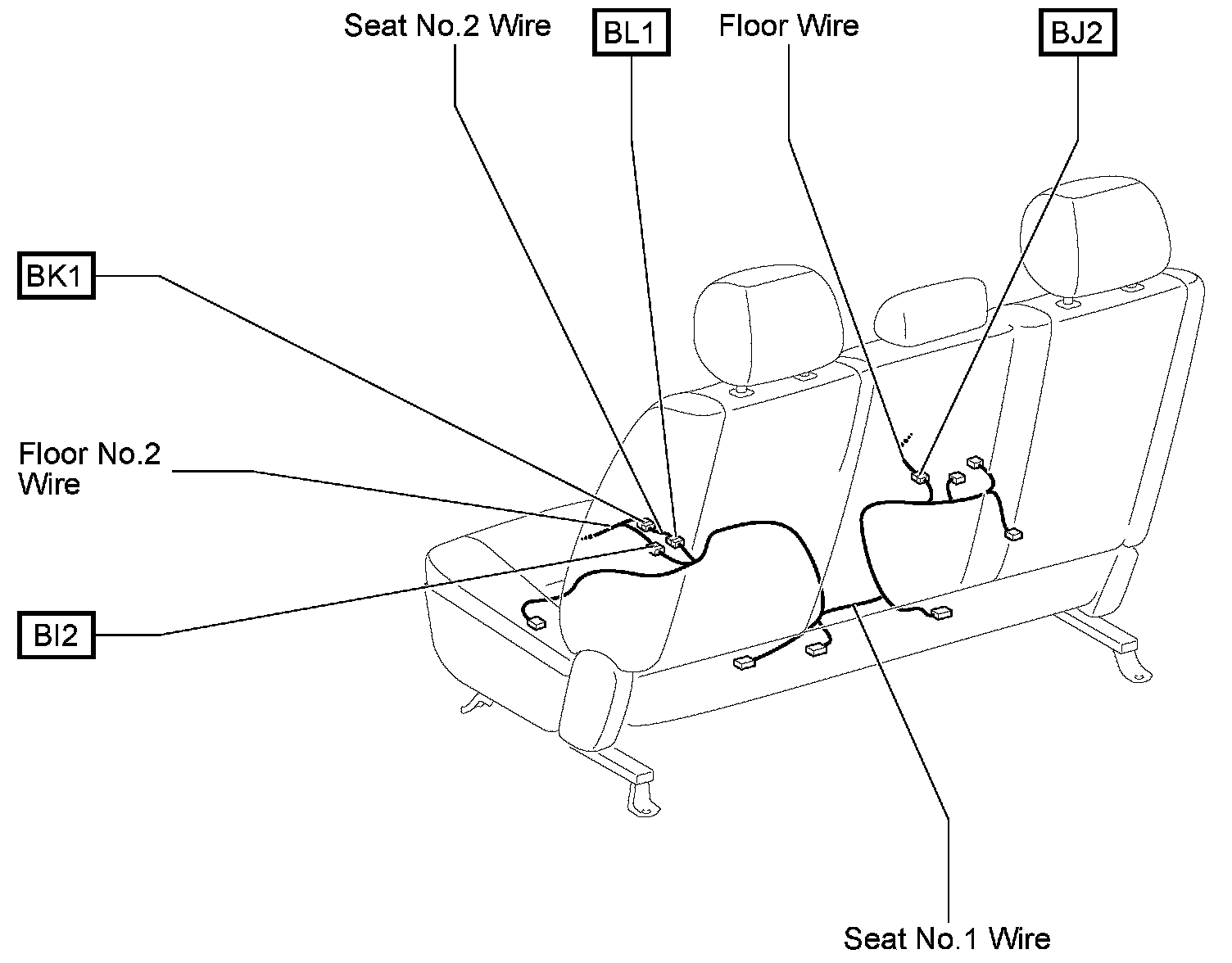

BI2 - BL1:



Connector Views:

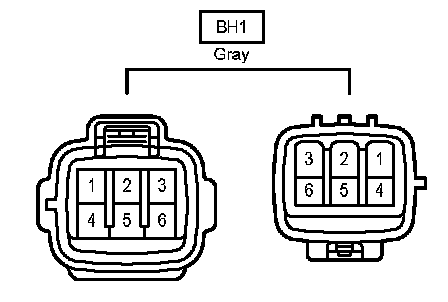

BH1:



Connector Views:
