Removal

2TR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE ENGINE UNDER COVER SUB-ASSEMBLY NO.1 (for 4WD and Pre-Runner)
3. REMOVE FAN AND GENERATOR V BELT (W/ AIR CONDITIONING) (Removal)

4. SEPARATE COMPRESSOR AND MAGNETIC CLUTCH (W/ AIR CONDITIONING) (Removal)





5. REMOVE IDLE PULLEY ASSEMBLY WITH BRACKET (W/ AIR CONDITIONING)

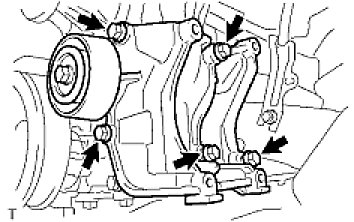

(a) Remove the 5 bolts, then remove the idle pulley with bracket.
6. REMOVE CRANKSHAFT POSITION SENSOR

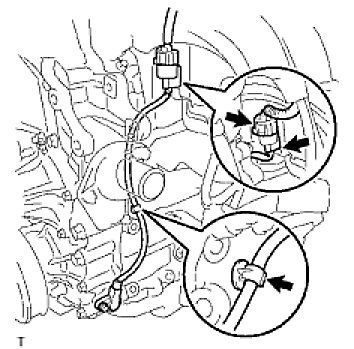

(a) Disconnect the crankshaft position sensor connector and the 2 wire harness clamps.

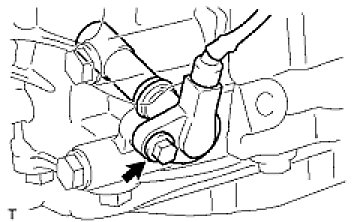

(b) Remove the bolt, then remove the crankshaft position sensor.
