Installation








2TR-FE EMISSION CONTROL: AIR FUEL RATIO SENSOR:

INSTALLATION

1. INSTALL AIR FUEL RATIO SENSOR

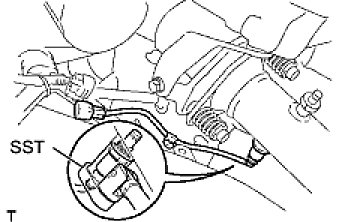

(a) Using SST, install the air fuel ratio sensor.
SST: 09224-00010
Torque: 44 Nm (449 kgf-cm, 33 ft-lbf)
Torque: 40 Nm (408 kgf-cm, 30 ft-lbf) with SST

NOTE: Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

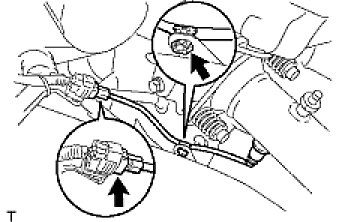

(b) Connect the wire harness clamp.
(c) Connect the air fuel ratio sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 in-lbf)
