Installation
2TR-FE EMISSION CONTROL: HEATED OXYGEN SENSOR:
INSTALLATION
1. INSTALL HEATED OXYGEN SENSOR

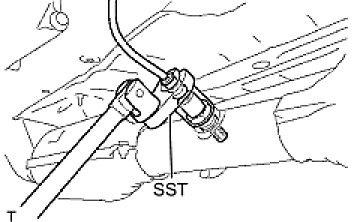

(a) Using SST, install the heated oxygen sensor.
SST: 09224-00010
Torque: 44 Nm (449 kgf-cm, 33 ft-lbf)
Torque: 40 Nm (408 kgf-cm, 30 ft-lbf) with SST
NOTE: Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
(b) Connect the wire harness clamp. (4WD DRIVE TYPE)
(c) Connect the oxygen sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 Nm (40 kgf-cm, 35 in-lbf)
3. CHECK FOR EXHAUST GAS LEAKAGE
