Intake Manifold
INTAKE MANIFOLD Install the
intake manifold with the 5 bolts and 2 nuts.
Torque: 25 Nm (255 kgf-cm, 18 ft-lbf)

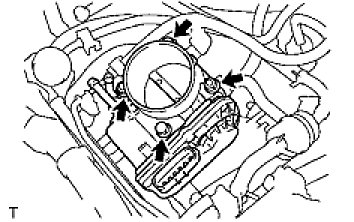

THROTTLE WITH MOTOR BODY ASSEMBLY
Install the throttle with motor body with the 2 bolts and 2 nuts.
Torque: 9 Nm (92 kgf-cm, 80 in-lbf)
