Removal

1GR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE V-BANK COVER (Removal)

3. REMOVE FAN SHROUD (Removal)

4. REMOVE GENERATOR ASSEMBLY (Service and Repair)

5. SEPARATE COOLER COMPRESSOR ASSEMBLY

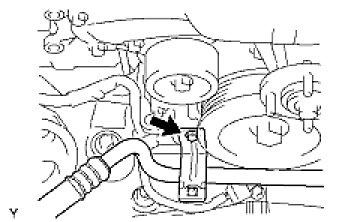

(a) Remove the bolt, then separate the suction hose sub-assembly.





(b) Disconnect the cooler compressor assembly connector.
(c) Remove the 4 bolts, then separate the cooler compressor assembly from the V-ribbed belt tensioner assembly.





6. REMOVE CRANKSHAFT POSITION SENSOR

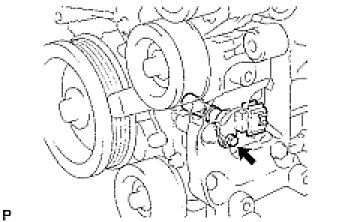

(a) Disconnect the crankshaft position sensor connector.
(b) Remove the bolt, then remove the crankshaft position sensor.
