Home >> Toyota >> 2008 >> Tundra 2WD V6-4.0L (1GR-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Locations

Air Flow Meter/Sensor: Locations

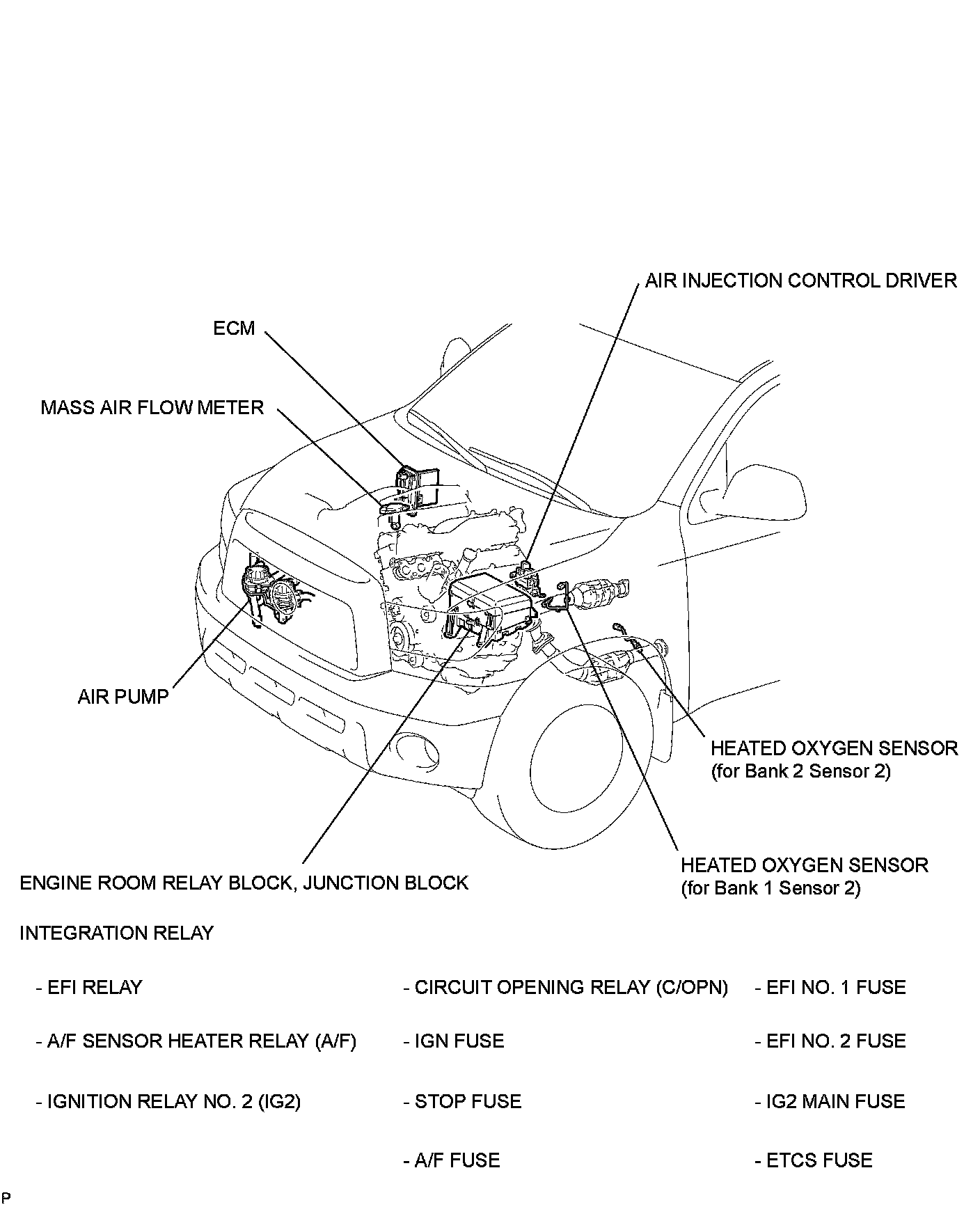

1GR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM:

PARTS LOCATION
