Installation

1GR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR:

INSTALLATION

1. INSTALL CRANKSHAFT POSITION SENSOR
(a) Apply a light coat of engine oil to the O-ring of the sensor.

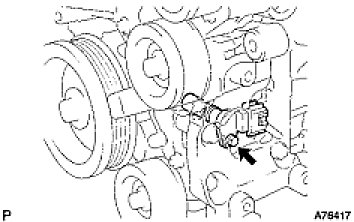

(b) Install the sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(c) Connect the sensor connector.
2. CONNECT COOLER COMPRESSOR ASSEMBLY (Installation)

3. INSTALL GENERATOR ASSEMBLY (Installation)

4. INSTALL FAN AND GENERATOR V BELT (Installation)

5. INSTALL NO. 1 ENGINE UNDER COVER (Installation)

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTE: Some systems need to be initialized after the cable is reconnected (Repair Instruction - Initialization).
