Removal

1GR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
- Some systems need to be initialized after the cable is reconnected (Repair Instruction - Initialization).
- After the ignition switch is turned OFF, the navigation system requires approximately 90 seconds to record various types of memory and settings. As a result, after turning the ignition switch OFF, wait 90 seconds or more before disconnecting the cable from the negative (-) battery terminal.

2. REMOVE NO. 1 ENGINE UNDER COVER (Removal)

3. REMOVE FAN AND GENERATOR V BELT (Removal)

4. REMOVE GENERATOR ASSEMBLY (Removal)

5. DISCONNECT COOLER COMPRESSOR ASSEMBLY (Removal)

6. REMOVE CRANKSHAFT POSITION SENSOR

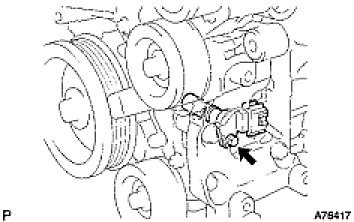

(a) Disconnect the sensor connector.
(b) Remove the bolt and sensor.
