Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2008
>>
Tundra 2WD V6-4.0L (1GR-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Variable Valve Timing Actuator Position Sensor
>>
Service and Repair
>>
Components
Components

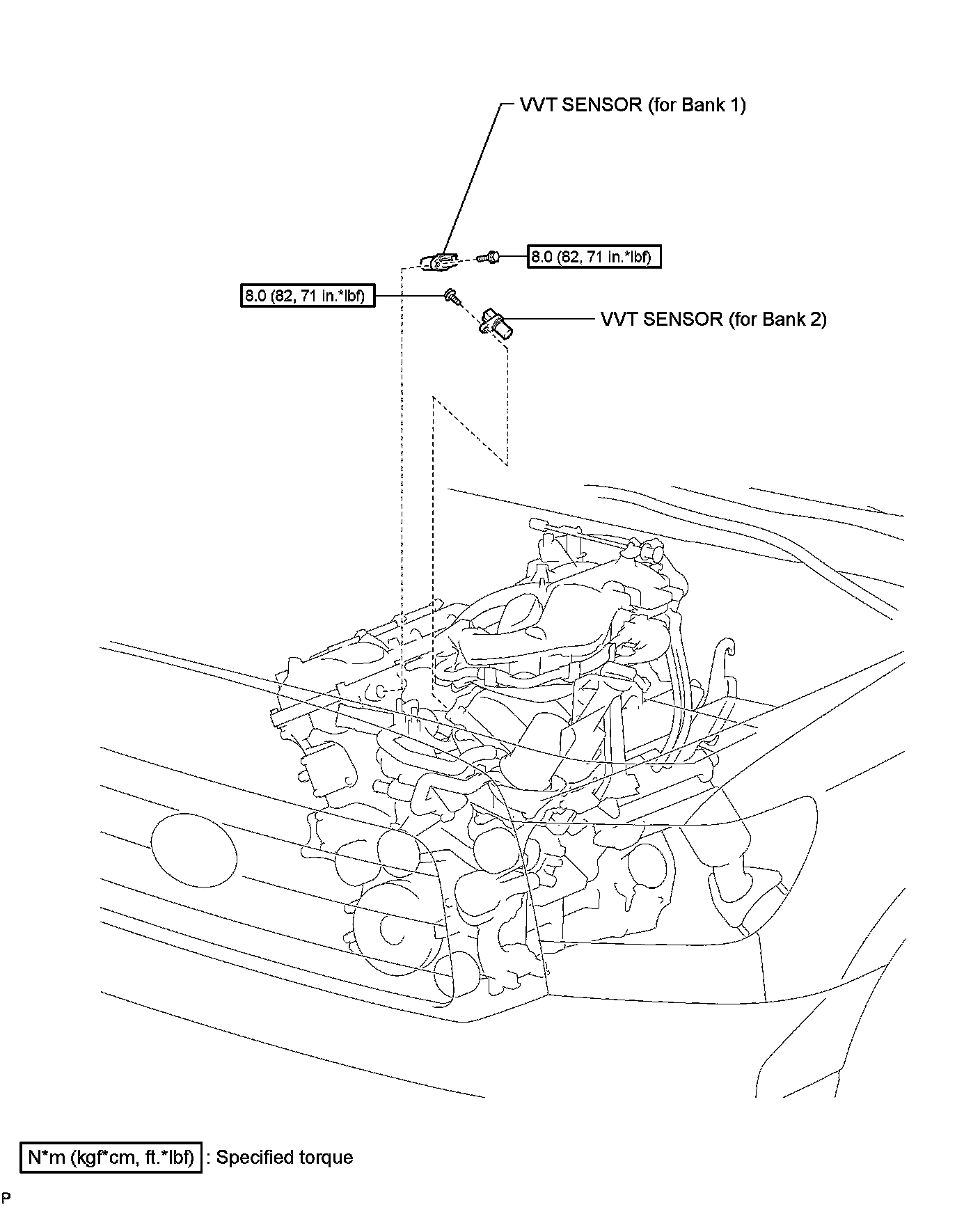

1GR-FE ENGINE CONTROL SYSTEM: VVT SENSOR:
COMPONENTS
