Installation

1GR-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR:

INSTALLATION

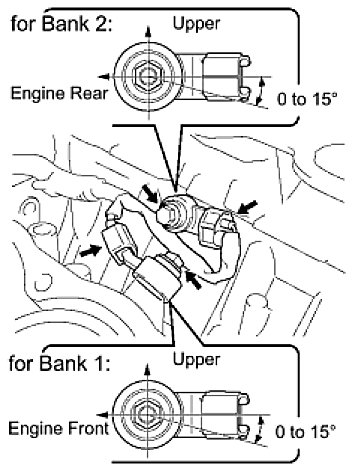

1. INSTALL KNOCK SENSOR





(a) Install the 2 sensors with the 2 bolts as shown in the illustration.
Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
(b) Connect the 2 sensor connectors.

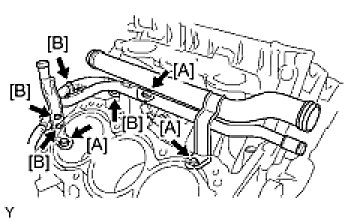

2. INSTALL NO. 1 WATER OUTLET PIPE





(a) Install the 3 bolts [A] and water outlet pipe.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Install the 4 wire harness clamps [B].
3. INSTALL CYLINDER HEAD SUB-ASSEMBLY RH (for Bank 1)
(a) Install the cylinder head RH (Installation).
4. INSTALL ENGINE ASSEMBLY
(a) Install the engine (Installation).
