Service Data








SERVICE SPECIFICATIONS: DIFFERENTIAL: SERVICE DATA

SERVICE DATA

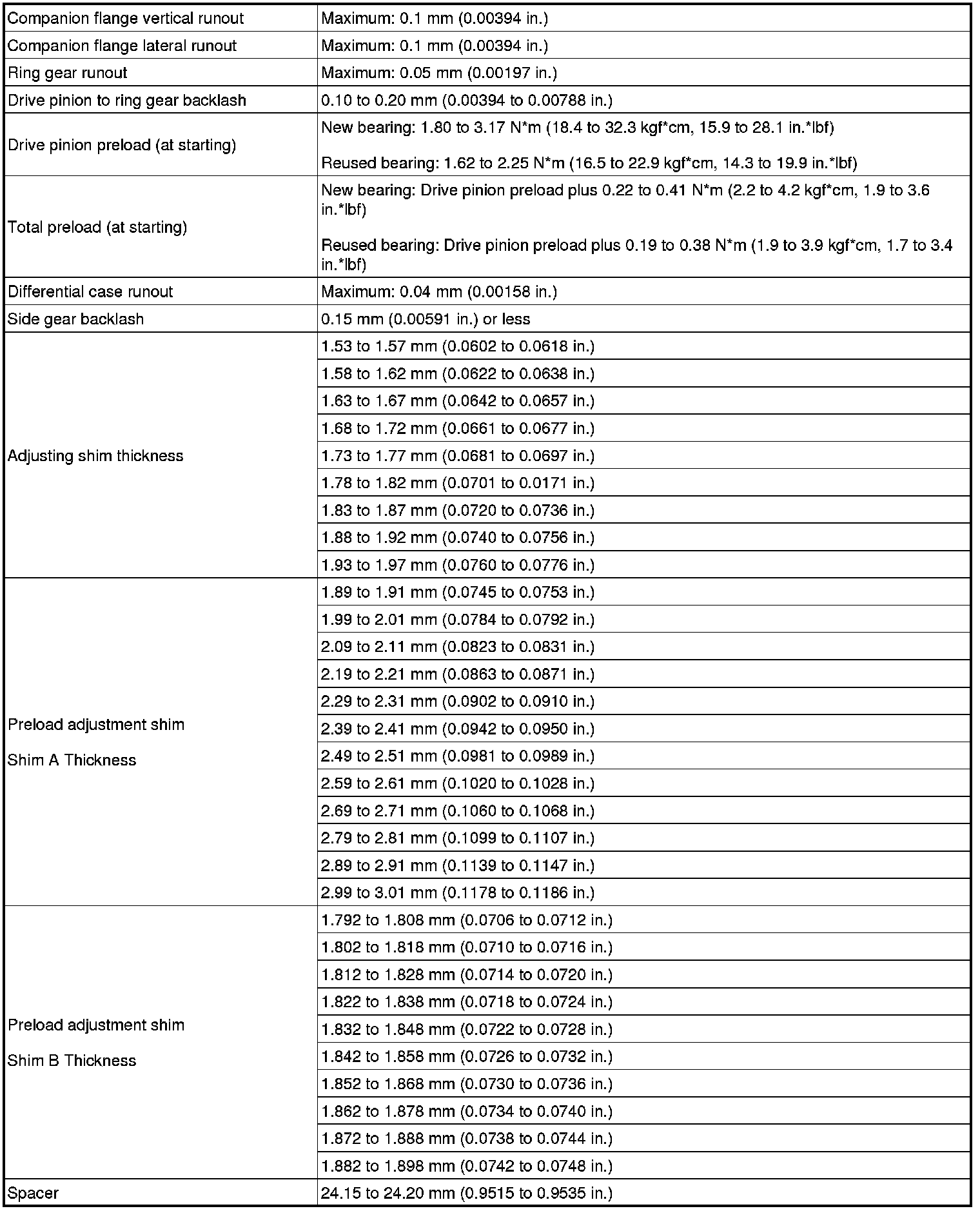

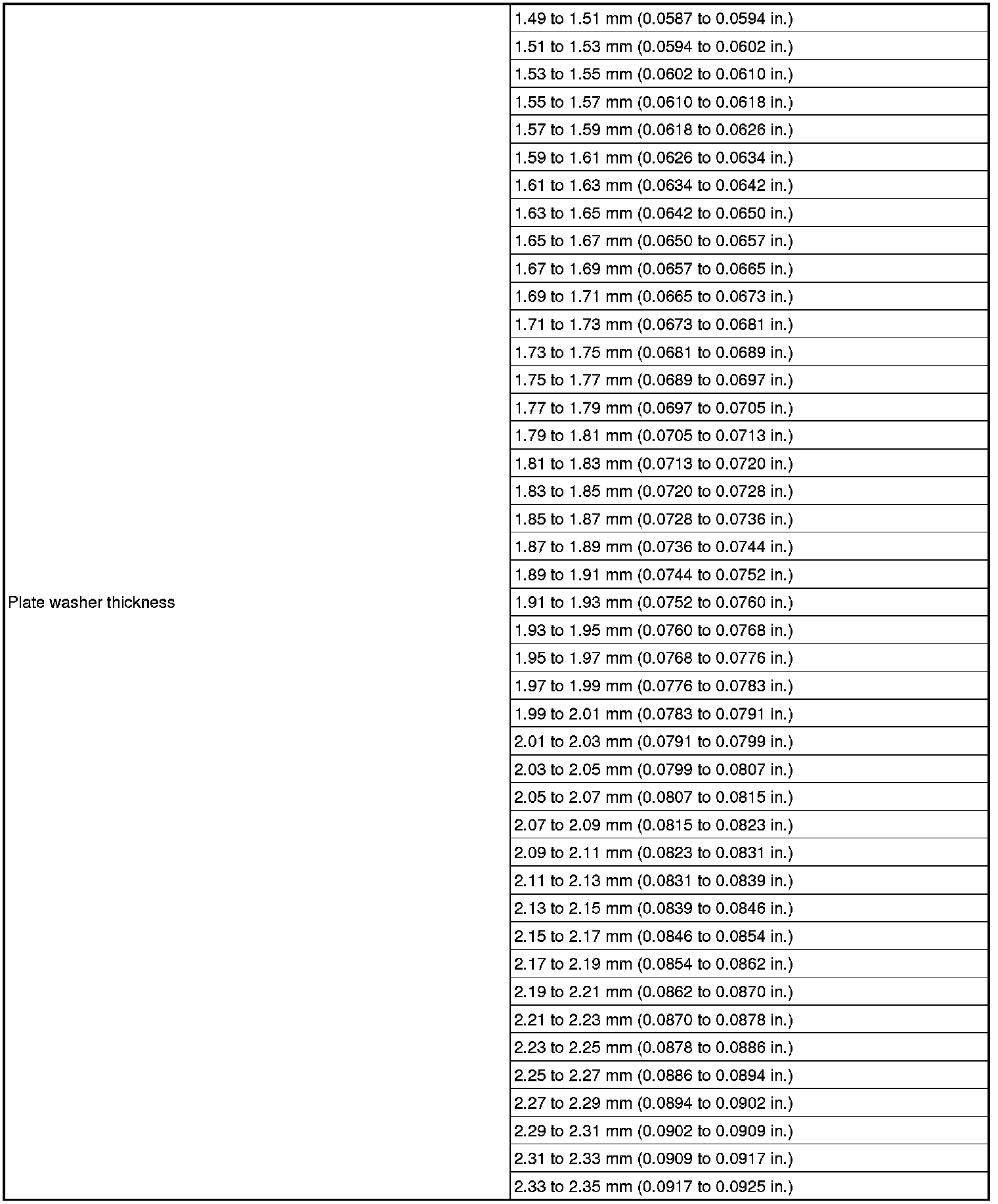

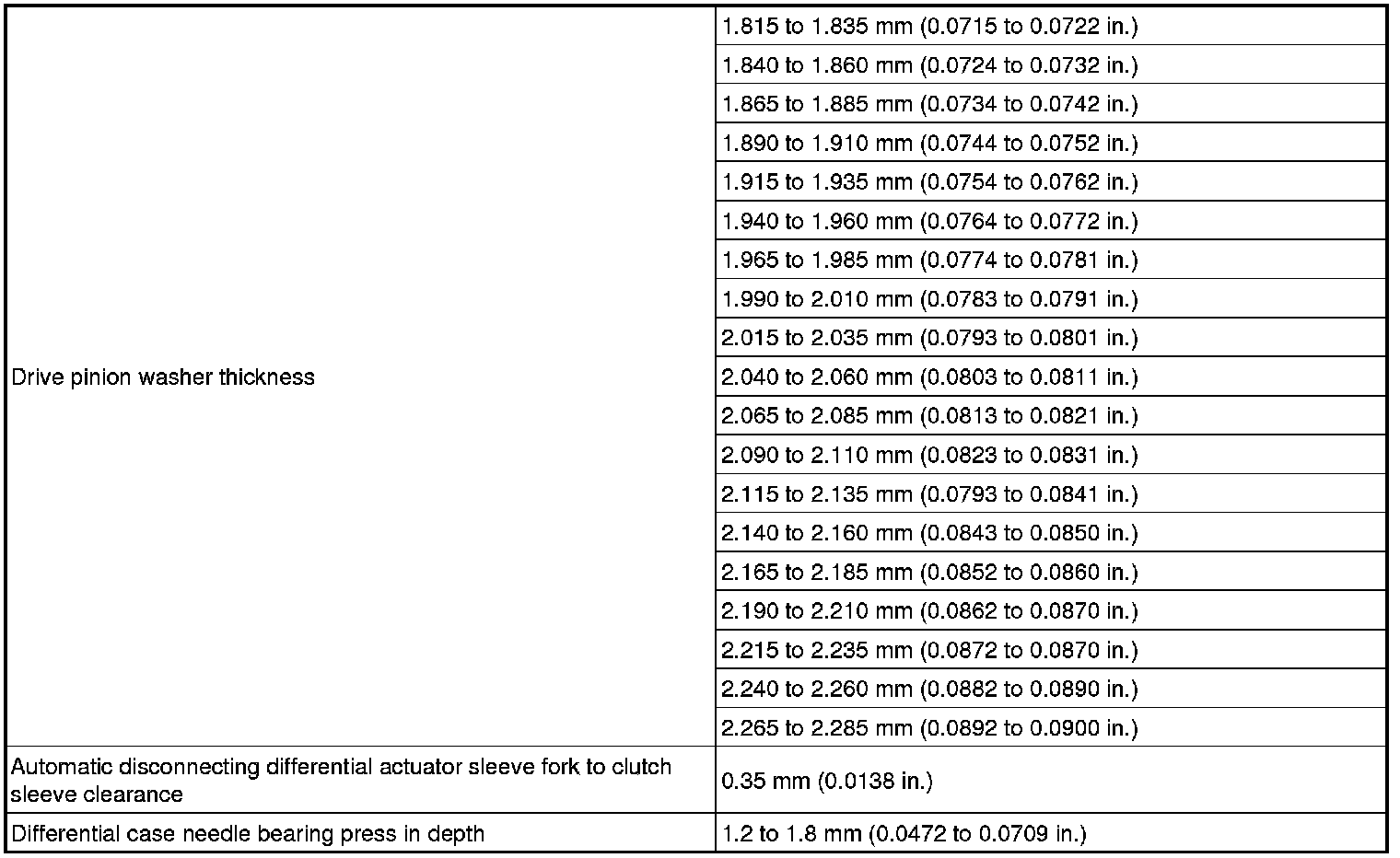

Front differential

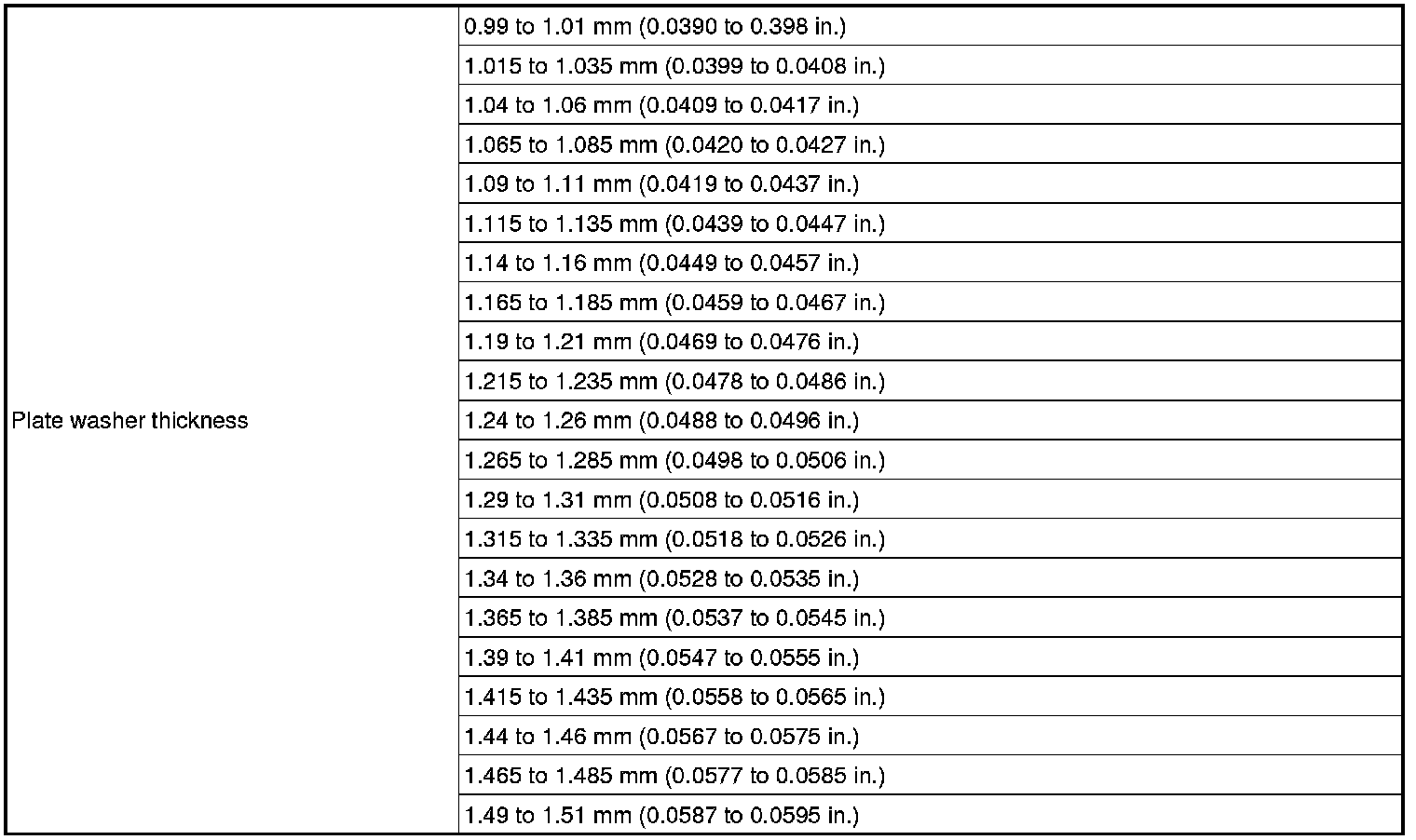

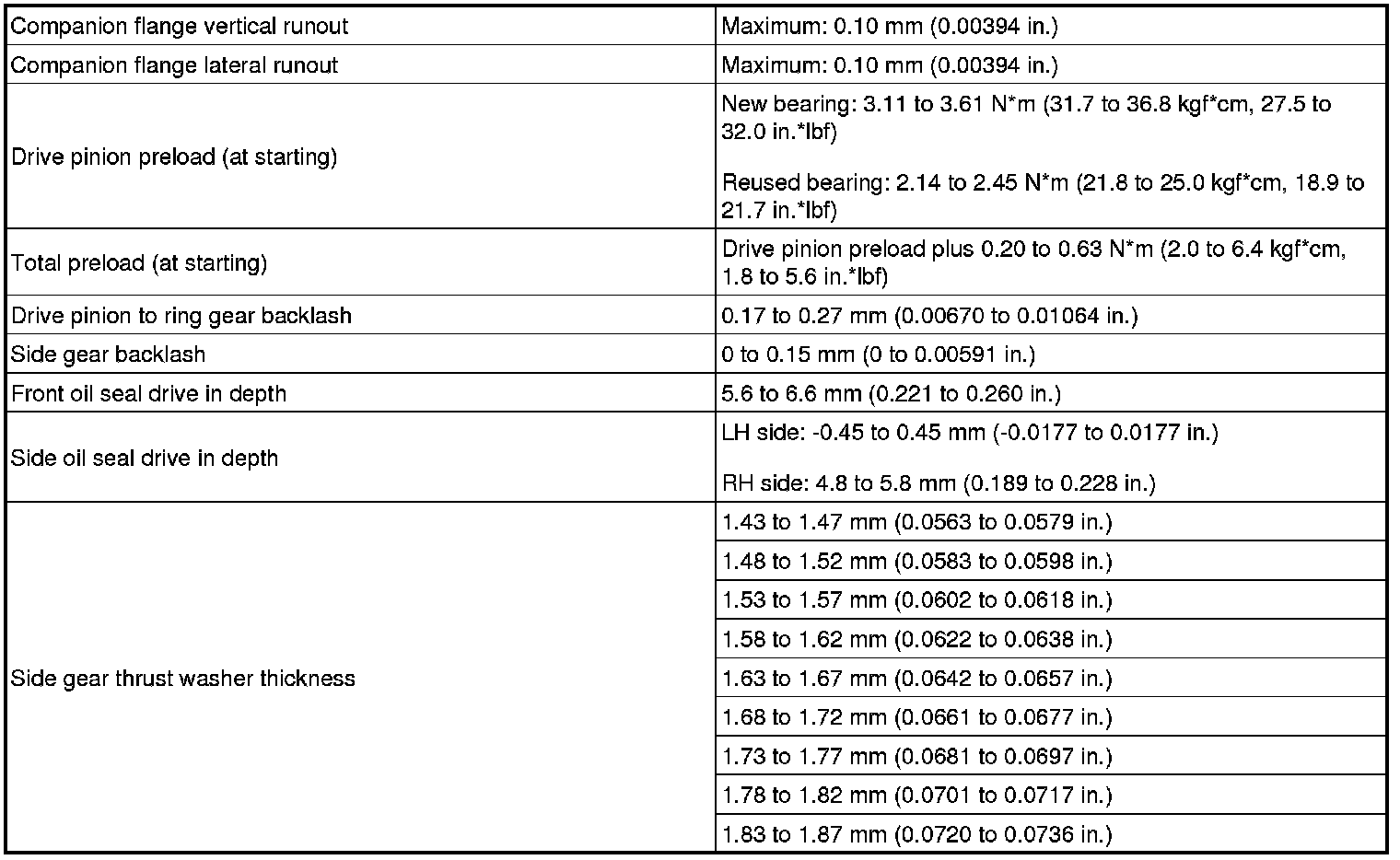

Rear differential (for 1GR-FE, 2UZ-FE)

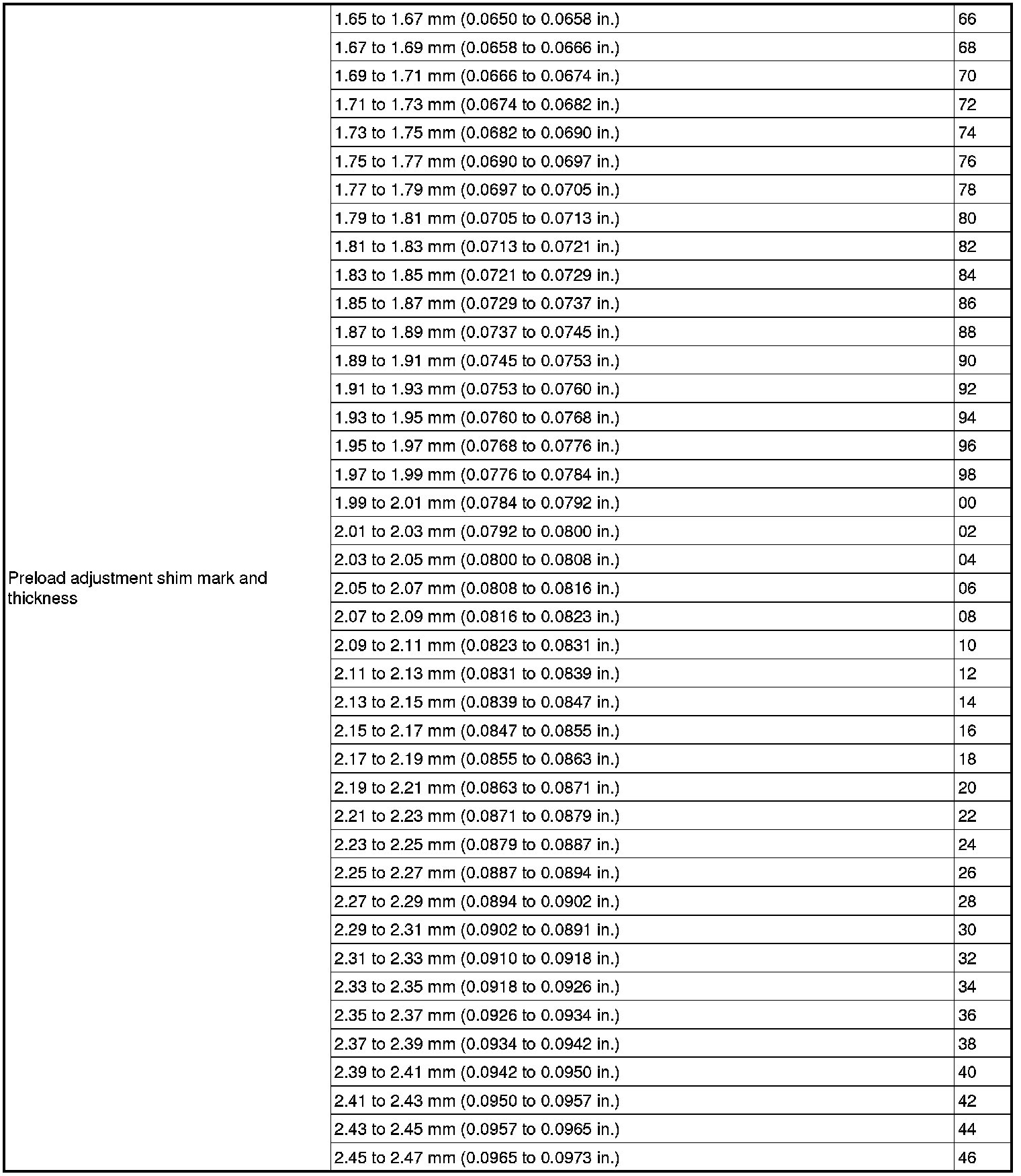

Rear differential (for 3UR-FE)
