Navigation System (for Double Cab)

NAVIGATION: NAVIGATION SYSTEM (for Double Cab): 01-21: ROM Error

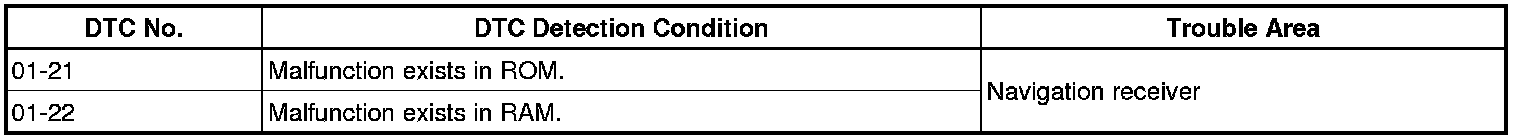

DTC 01-21 - ROM Error

DTC 01-22 - RAM Error

DESCRIPTION





INSPECTION PROCEDURE

HINT: After the inspection is completed, clear the DTCs (Navigation System (for Double Cab)).

PROCEDURE

1. REPLACE NAVIGATION RECEIVER
(a) Replace the navigation receiver (for Column Shift Type) (Removal).
(b) Replace the navigation receiver (for Floor Shift Type) (Removal).
NEXT -- END
